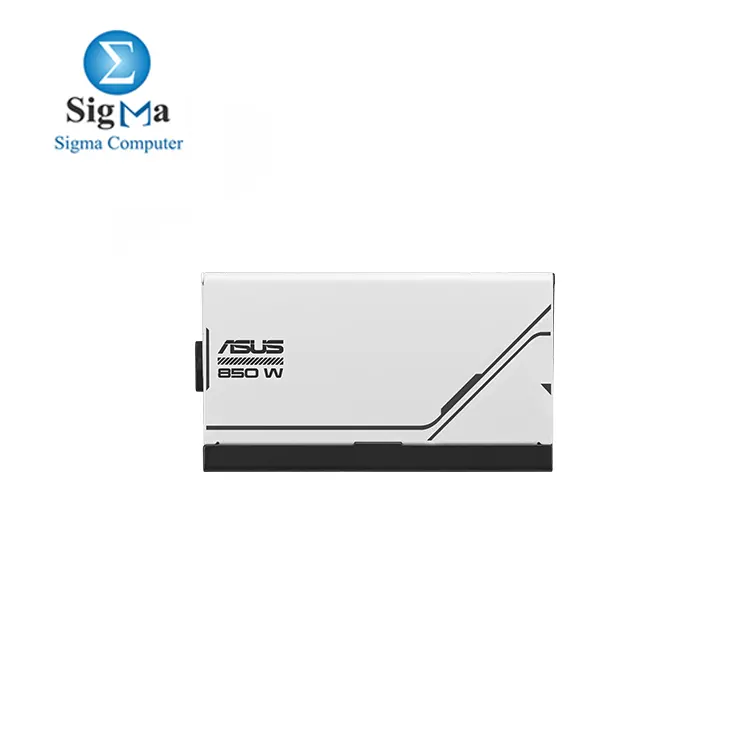

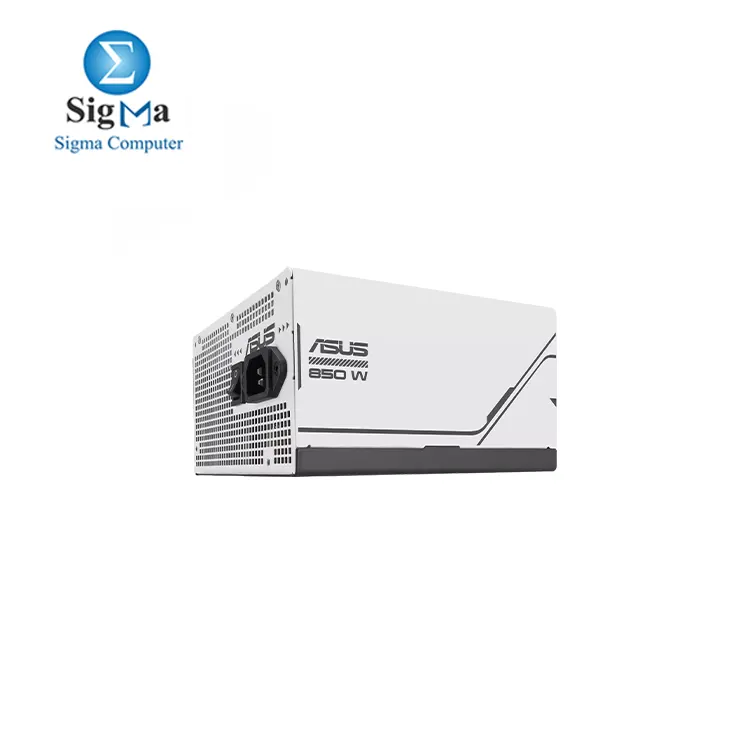

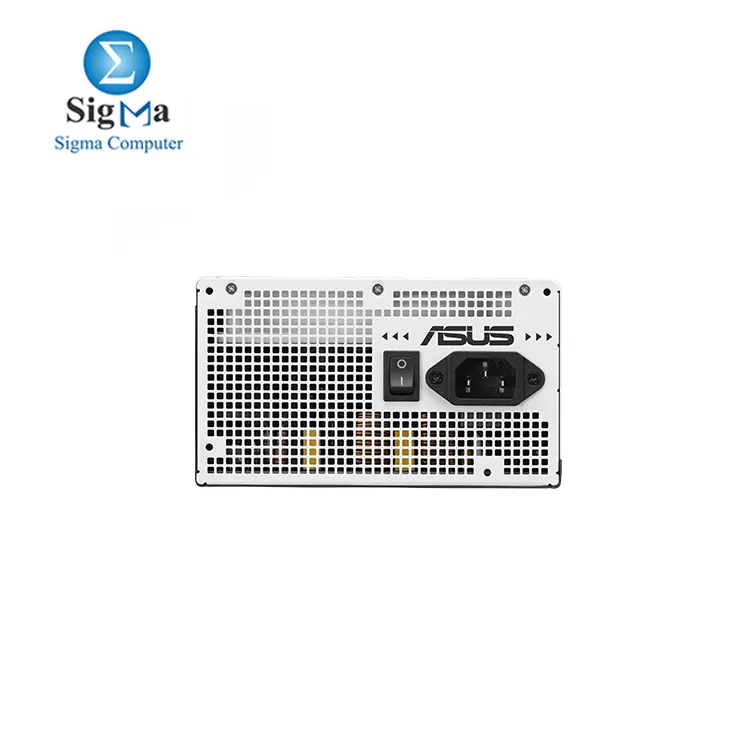

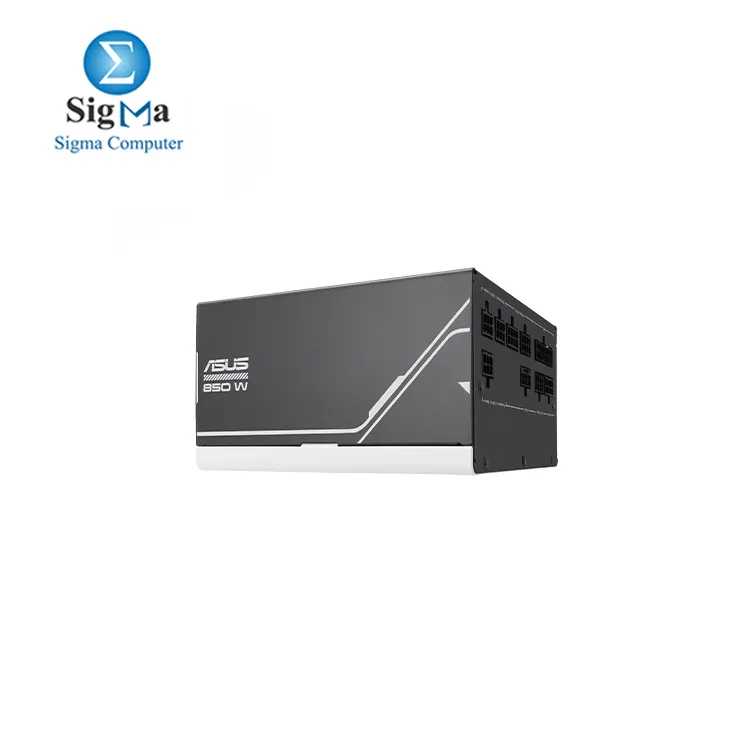

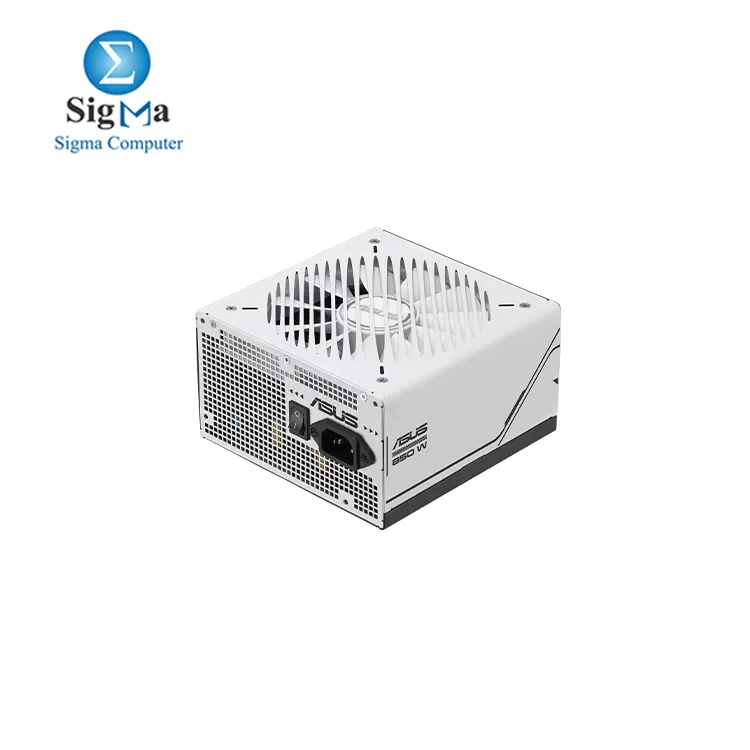

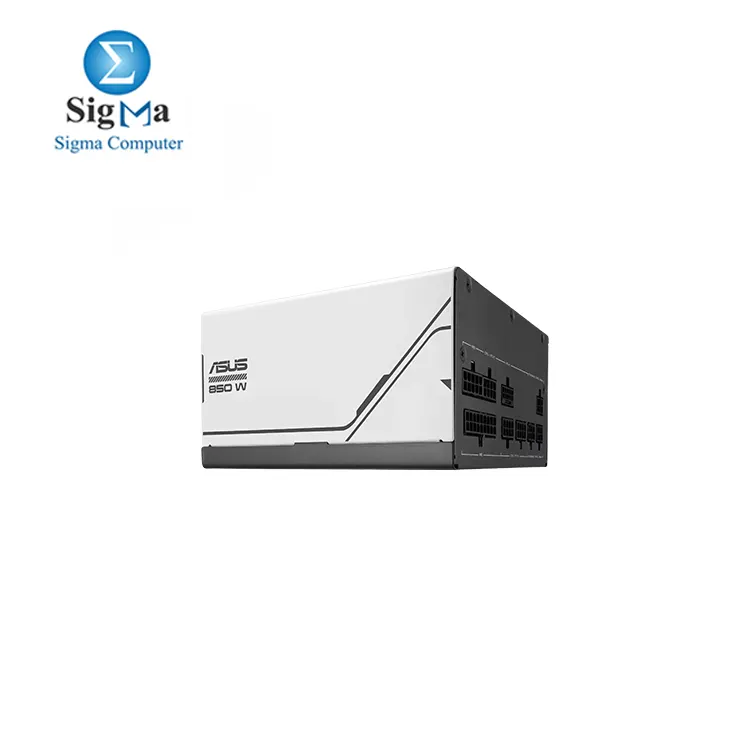

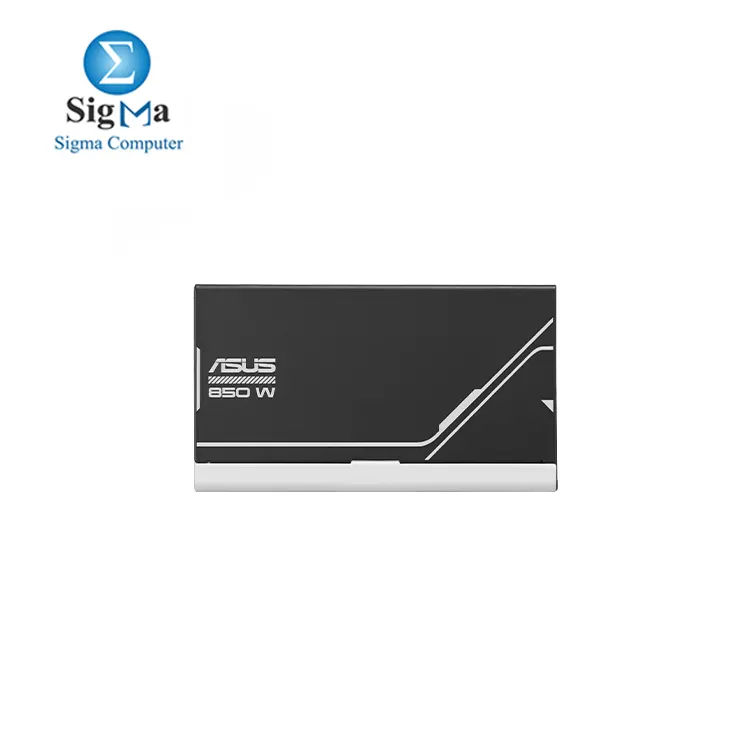

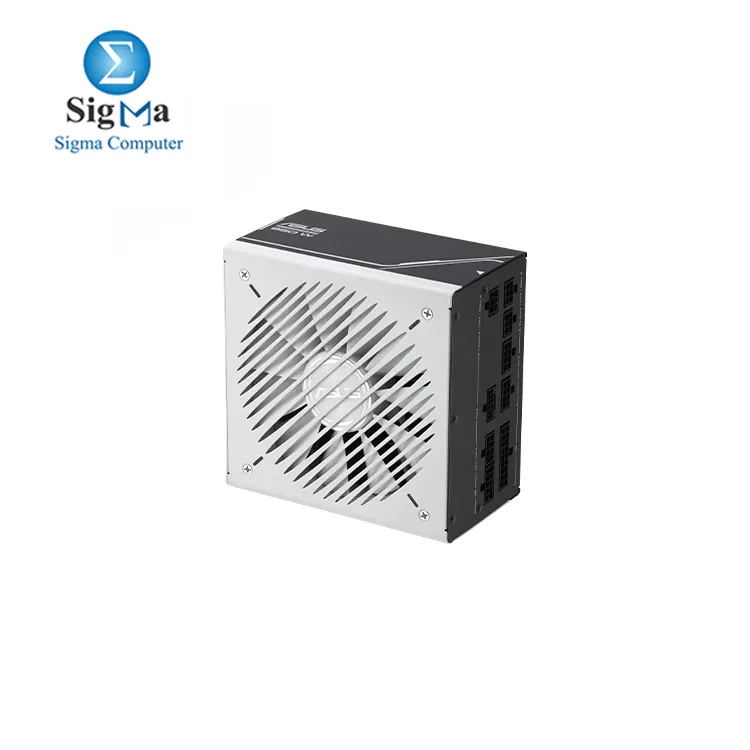

ASUS Prime 850W Gold (850 Watt, ATX 3.0 Compatible, Fully Modular Power Supply, 80+ Gold Certified, Dual Ball Bearings, Two Color Options in One | 6150 EGP

ASUS Prime 850W Gold 850 Watt ATX 3.0 Compatible Fully Modular Power Supply 80 Gold Certified Dual Ball Bearings Two Color Options in One

6150 LE
Availability: In Stock
shipped by (sigma)
Point: 30

Brand : ASUS brand

Model : 850W

Seller : sigma

Viewed : 129 items

  • Power & Efficiency: Delivers stable power, ideal for all-round PCs and gaming setups.
  • Fan Design: Uses dual ball bearings for extended durability, lasting twice as long as sleeve bearings.
  • 80 Plus Gold Certified: Ensures high efficiency with premium components like low-ESR capacitors.
  • ATX 3.0 Ready: Fully compatible with ATX 3.0 standards, comes with a 16-pin PCIe cable for PCIe Gen 5.0 GPUs.




Model: AP-850G
Intel Form Factor: ATX12V
PFC Type: Active PFC
ATX Standard: ATX 3.0
Dimensions: 150 x 150 x 86 mm
Efficiency: 80Plus Gold
MTBF: >120,000 hrs @ 25°C

Protection Features: OPP / OVP / UVP / SCP / OCP / OTP
Hazardous Materials: ROHS
AC Input Range: 100-240Vac

DC Output Voltage & Maximum Load:

  • +3.3V / 20A
  • +5V / 20A
  • +12V / 70.5A
  • -12V / 0.3A
  • +5Vsb / 2.5A

Combined Load:

  • +3.3V & +5V: 110W
  • +12V: 846W
  • -12V: 3.6W
  • +5Vsb: 12.5W
  • Total Output: 850W

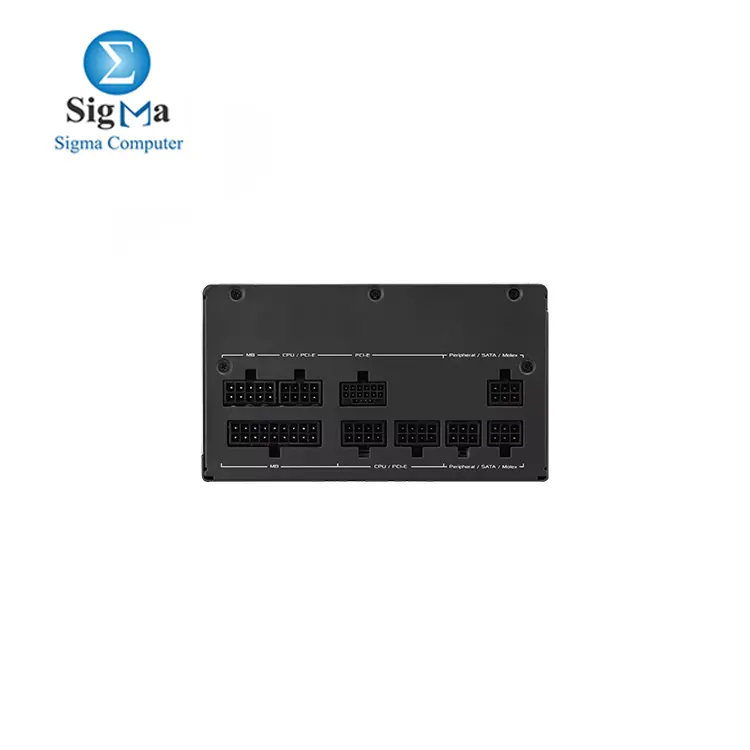

Cable Connectors:

  • MB 24/20-pin x 1
  • CPU 4+4-pin x 2
  • PCI-E 16-pin x 1 (PSU & connector side)
  • PCI-E 8-pin x 3
  • SATA x 5
  • Peripheral x 3

Package Contents:

  • Power Cord x 1
  • Motherboard Power Cable x 1 (610mm)
  • CPU Cable x 2 (650mm)
  • PCI-E Gen 5 16-pin Cable x 1 (675mm)
  • PCI-E (16-pin to 8-pin-8-pin) Cable x 1 (675mm)
  • PCI-E 1-to-1 Cable x 1 (675mm)
  • SATA 1-to-2 Cable x 1 (400+120mm)
  • SATA 1-to-3 Cable x 1 (400+120+120mm)
  • Peripheral 1-to-3 Cable x 1 (400+150+150mm)
  • User Manual x 1

Weight: 1.502 kg (single PSU)
0dB Technology: No
0dB Fan Button: No, this product is without 0dB technology.
