Cooler Master Elite 301 Micro-ATX And ELITE NEX PN600W PSU | 3749 EGP

Cooler Master Elite 301 Micro-ATX And ELITE NEX PN600W PSU

3749 LE
Availability: In Stock only 5 item left
shipped by (sigma)
Point: 0

Seller : sigma

Viewed : 677 items

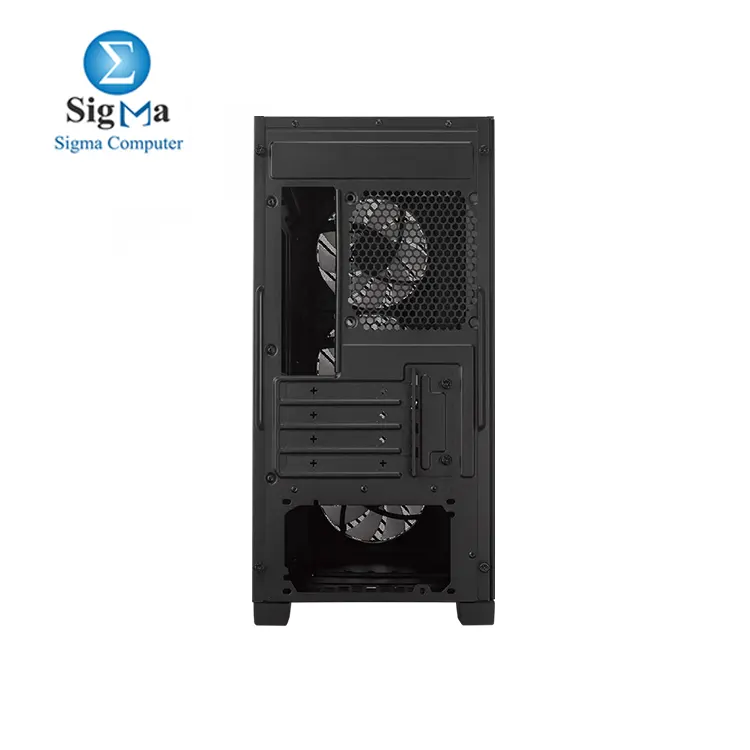

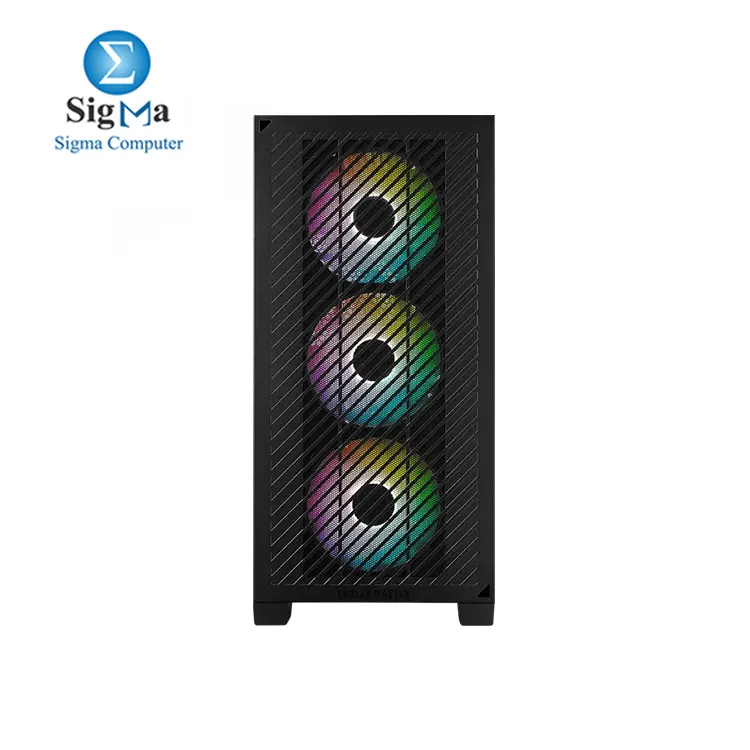

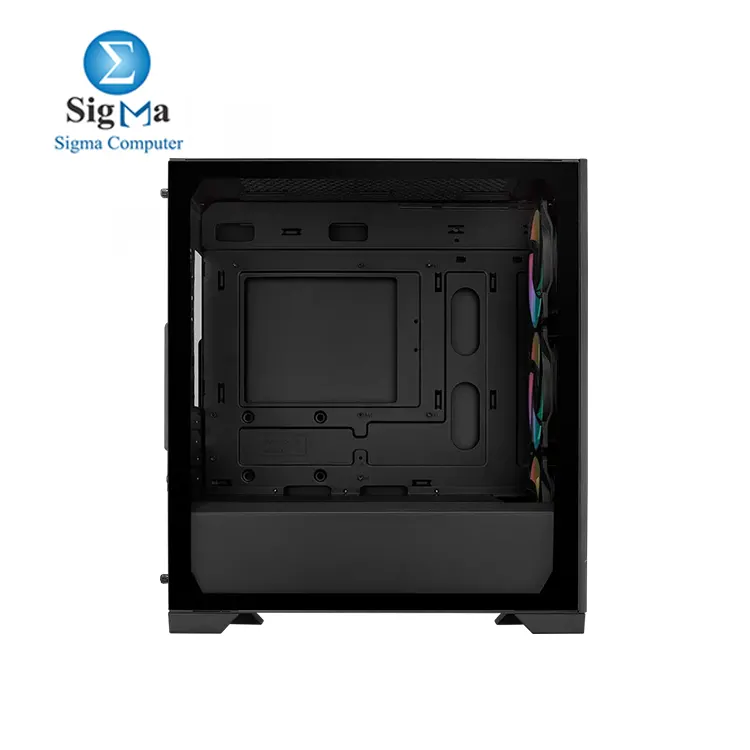

Cooler Master Elite 301 Micro-ATX Case

  • Dimensions: 390 x 203.5 x 430mm (with protrusions)
  • Motherboard Support: ITX / Micro ATX
  • Drive Bays: 1 x 3.5" and 1 x 2.5" (max 2)
  • Pre-installed Fans: 3 x 120mm CF120 ARGB (Front)
  • Radiator Support: Front (120/240mm), Top (120/140/240/280mm), Rear (120mm)
  • Clearance: CPU Cooler (163.5mm), PSU (160mm), GPU (365mm)
  • I/O Panel: 1 x USB 3.2 Gen 1 Type-A, 1 x USB 3.2 Gen 1 Type-C, 1 x 3.5mm Combo Audio
  • Dust Filters: Top / Bottom / Front
  • Power Supply Support: ATX

ELITE NEX PN600W PSU

  • Power: 600W
  • Efficiency: ≥ 75% @ Typical Load
  • Input: 200-240V, 50-60Hz
  • Connectors:
    • 1 x ATX 24 Pin
    • 1 x EPS 4+4 Pin
    • 5 x SATA
    • 3 x Peripheral 4 Pin
    • 2 x PCI-e 6+2 Pin
  • Protections: OVP, OPP, SCP, UVP, OTP, Inrush Protection
  • Operating Temperature: 0-40°C
  • MTBF: >100,000 Hours
  • Regulatory: TUV, CE, CCC, EAC, UKCA

Cooler Master Elite 301 Micro-ATX case and ELITE NEX PN600W PSU:

Cooler Master Elite 301 Micro-ATX Case (E301-KGNN-S00)

  • Exterior Color: Black
  • Materials: Steel, Plastic, Tempered Glass (Left Side Panel)
  • Dimensions: 390 x 203.5 x 430mm (including protrusions), 377 x 203.5 x 410mm (excluding protrusions)
  • Motherboard Support: ITX / Micro ATX
  • Expansion Slots: 4
  • Drive Bays:
    • 1 x 3.5"
    • 1 x 2.5" (Max. 2)
  • I/O Panel:
    • 1 x USB 3.2 Gen 1 Type-A
    • 1 x USB 3.2 Gen 1 Type-C
    • 1 x 3.5mm Combo Audio In/Out
  • Pre-installed Fans (Front): 3 x 120mm CF120 ARGB
  • Fan Support:
    • Front: 3 x 120mm
    • Top: 2 x 120mm / 2 x 140mm
    • Rear: 1 x 120mm
  • Radiator Support:
    • Front: 120mm / 240mm
    • Top: 120mm / 140mm / 240mm / 280mm
    • Rear: 120mm
  • Clearance:
    • CPU Cooler: 163.5mm
    • PSU: 160mm
    • GPU: 365mm (without front fans & radiator)
  • Cable Routing: 18.5mm
  • Dust Filters: Top / Bottom / Front
  • Power Supply Support: ATX
  • Series: Elite Series
  • Size: Mini Tower

ELITE NEX PN600W PSU (MPW-6001-ACBK-P)

  • ATX Version: ATX 12V Ver. 2.41
  • PFC: Active PFC
  • Input Voltage: 200-240V
  • Input Current: 4A
  • Input Frequency: 50-60Hz
  • Dimensions: 140 x 150 x 86 mm
  • Fan Size: 120mm
  • Fan Bearing: Sleeve Fan
  • Efficiency: ≥ 75% @ Typical Load
  • ErP 2014 Lot 3: Yes
  • Operating Temperature: 0-40°C
  • Power Good Signal: 100 - 500 ms
  • Hold Up Time: ≥10ms at 100% load
  • MTBF: >100,000 Hours
  • Protections: OVP / OPP / SCP / UVP / OTP / Inrush Protection
  • Regulatory: TUV, CE, CCC, EAC, UKCA
  • Connectors:
    • ATX 24 Pin: 1
    • EPS 4+4 Pin: 1
    • SATA Connectors: 5
    • Peripheral 4 Pin Connectors: 3
    • PCI-e 6+2 Pin Connectors: 2
  • Modular: Non Modular
  • 80 Plus Efficiency: None 80 PLUS
  • Form Factor: ATX
  • Watts: 600W
CategoryDesktop
SubcategoryComputer Case
BrandCOOLER MASTER
ModelE301-KGNN-S00 & MPW-6001-ACBK-P
