ASUS PRIME H610M-A DDR5 LGA 1700 mATX motherboard with DDR5 PCIe 4.0 dual M.2 slots Intel 1Gb Ethernet WIFI 5 DisplayPort HDMI VGA USB 3.2 Gen 2 ports Addressable Gen 2 headers

reviews | Write a review

4849 LE

Availability: In Stock

shipped by (sff4$vjs2hf5kg)

Point: 10

Brand : ASUS

Model : H610M-A

Seller : sff4$vjs2hf5kg

Viewed : 174 items

Intel® H610 (LGA 1700) mATX Motherboard
This motherboard supports DDR5 memory, PCIe 4.0, dual M.2 slots, Intel® 1Gb Ethernet, WIFI 5, DisplayPort, HDMI™, VGA, USB 3.2 Gen 2 ports, and is compatible with Aura Sync for customizable RGB lighting.

Key Features:

Intel® LGA 1700 Socket: Ready for Intel® 13th and 12th Gen processors.

Ultrafast Connectivity: PCIe 4.0, two M.2 slots, Intel® 1Gb Ethernet, WIFI 5, and USB 3.2 Gen 2 support.

Front USB 3.2 Gen 1 Type-C®: Convenient for faster data transfer.

Comprehensive Cooling: VRM heatsink, PCH heatsink, and Fan Xpert 2+ for optimal thermal management.

Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for synchronized lighting effects with Aura Sync-compatible hardware.

Seller note

010084167000119

Fast delivery
2-5 Days
Online Support
Chat and Phone
order protection
secured information
promotion gift
special offers!
money back
return over 14 days

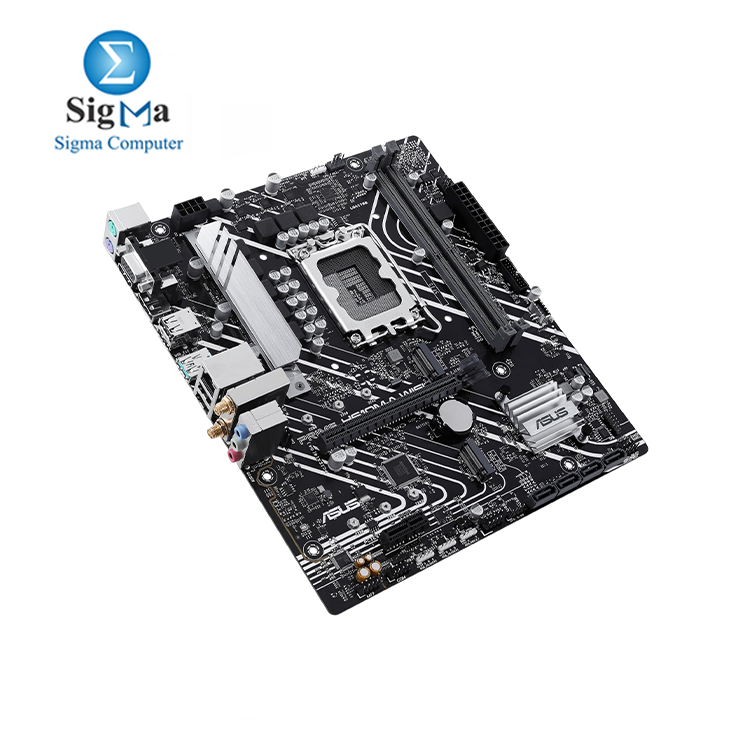

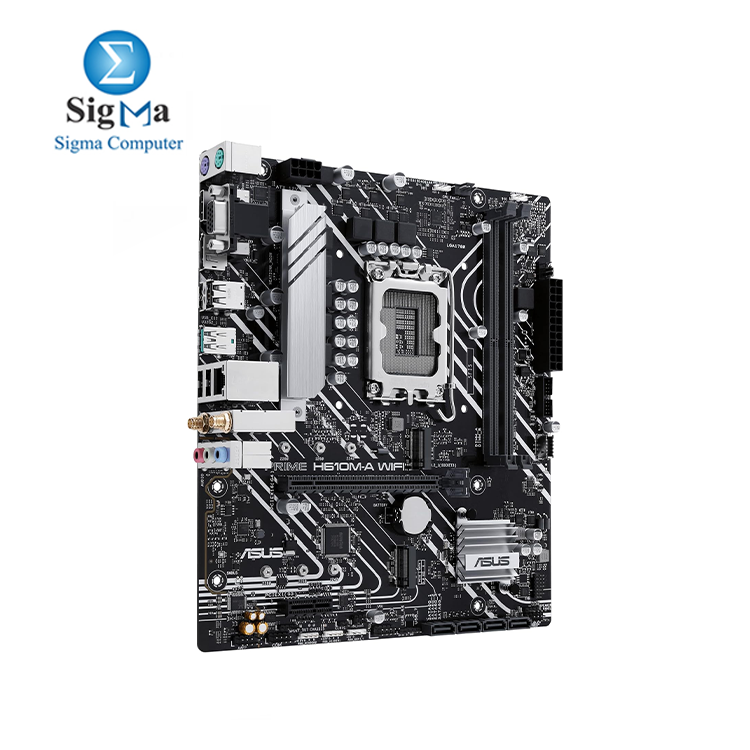

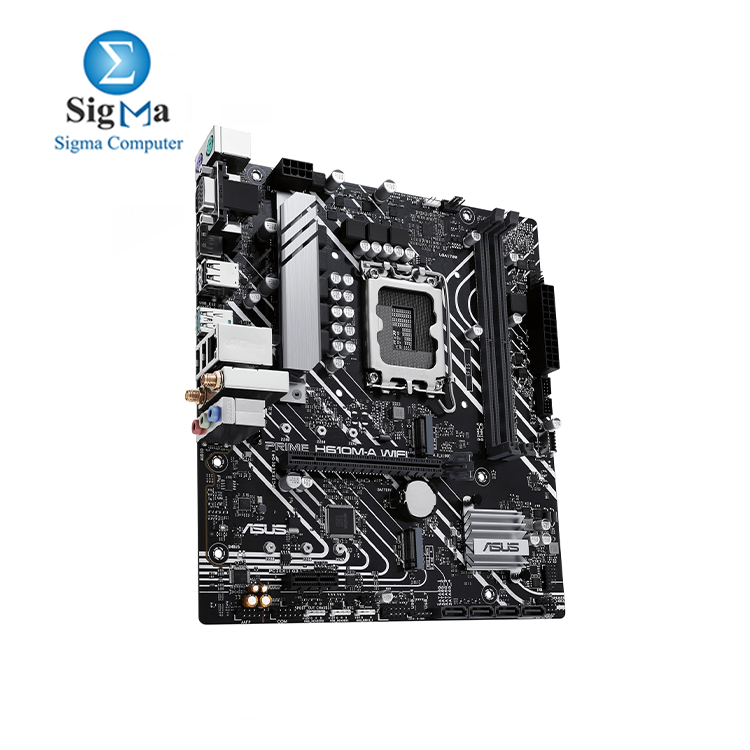

Model: PRIME H610M-A WIFI

This motherboard supports Intel® 12th, 13th, and 14th Gen processors and features excellent connectivity, memory, and expansion options, all packed in a compact mATX form factor.

Key Features:

CPU Compatibility: Supports Intel® LGA 1700 for Intel® Core™ 14th & 13th Gen, Intel® Core™ 12th Gen, Pentium® Gold, and Celeron® processors.
Chipset: Intel® H610 Chipset.
Memory:
- 2 x DIMM slots, Max. 96GB DDR5 (Speeds: 5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory).
- Dual Channel Memory Architecture.
- Supports Intel® Extreme Memory Profile (XMP).
Graphics:
- 1 x DisplayPort (Supports 4K@60Hz).
- 1 x VGA port.
- 1 x HDMI™ port (Supports 4K@60Hz).
Expansion Slots:
- 1 x PCIe 4.0 x16 slot.
- 1 x PCIe 3.0 x1 slot.
Storage:
- 2 x M.2 slots.
- 4 x SATA 6Gb/s ports.
Networking & Wireless:
- 1 x Intel® 1Gb Ethernet.
- Wi-Fi 5 (802.11 a/b/g/n/ac).
- Bluetooth® v5.0.
USB Ports:
- Rear USB: 1 x USB 3.2 Gen 2 (10G) port, 4 x USB 2.0 ports.
- Front USB: 1 x USB 3.2 Gen 1 Type-C® port, 1 x USB 3.2 Gen 1 header, 2 x USB 2.0 headers.
Audio:
- Realtek 7.1 Surround Sound High Definition Audio CODEC.
- Supports up to 24-Bit/192 kHz playback.
I/O Ports:
- 1 x USB 3.2 Gen 2 (10G) port, 4 x USB 2.0 ports.
- 1 x DisplayPort, 1 x VGA port, 1 x HDMI™ port.
- 1 x Intel® 1Gb Ethernet port, 3 x Audio jacks.
- 1 x PS/2 Keyboard, 1 x PS/2 Mouse port.
Cooling & Power:
- 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector.
- 1 x 4-pin CPU Fan header, 2 x 4-pin Chassis Fan headers.
Special Features:
- ASUS 5X PROTECTION III (DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core).
- ASUS Q-Design (Q-DIMM, Q-LED Core, Q-Slot).
- AURA Sync RGB Lighting (Addressable Gen 2 headers, AURA RGB headers).
Software:
- Armoury Crate (Aura Sync, Fan Xpert 2+, Two-Way AI Noise Cancellation).
- AI Suite 3, TurboV EVO, ASUS CPU-Z.
- Norton 360 Deluxe (60-Day Free Trial).
- UEFI BIOS with ASUS EZ DIY tools.
Operating System:
- Supports Windows® 10 64-bit and Windows® 11 64-bit.
Form Factor:
- mATX (9.6 inch x 8.5 inch or 24.4 cm x 21.6 cm).

Category	Desktop
Subcategory	Motherboard
Brand	ASUS
Model	H610M-A
