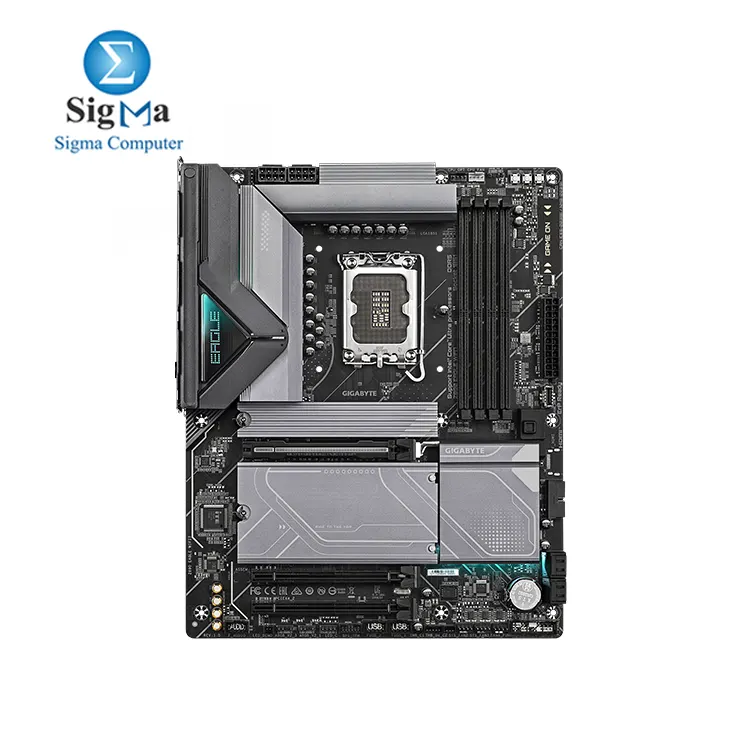

GIGABYTE Z890 Eagle WIFI7 Intel Core Ultra (Series 2) LGA 1851 Motherboard, ATX, DDR5, 4X M.2, PCIe 5.0, USB4, WIFI7, 2.5GbE LAN, EZ-Latch | 14400 EGP

GIGABYTE Z890 Eagle WIFI7 Intel Core Ultra Series 2 LGA 1851 Motherboard ATX DDR5 4X M.2 PCIe 5.0 USB4 WIFI7 2.5GbE LAN EZ-Latch

14400 LE
Availability: In Stock only 5 item left
shipped by (sigma)
Point: 30

Brand : Gigabyte brand

Model : Z890

Seller : sigma

Viewed : 258 items

GIGABYTE Z890 Eagle WIFI7:

  • CPU Socket: LGA1851 (Supports Intel® Core™ Ultra processors)
  • Chipset: Intel® Z890 Express
  • Memory: DDR5, up to 256GB (4x DIMMs), speeds up to 9200MT/s (O.C.)
  • Graphics Output: USB4 (3840x2160@144Hz) & DisplayPort (3840x2160@144Hz)
  • Audio: Realtek® 7.1-channel HD Audio
  • Networking:
    • LAN: Realtek® 2.5GbE
    • Wi-Fi: MediaTek Wi-Fi 7 (2.4/5/6 GHz) & Bluetooth 5.4
  • Expansion Slots:
    • 1x PCIe 5.0 x16 (CPU)
    • 2x PCIe 4.0 x4 (Chipset)
  • Storage:
    • 4x M.2 slots (PCIe 5.0/4.0/SATA)
    • 4x SATA 6Gb/s ports (RAID 0/1/5/10)
  • USB Ports:
    • Back Panel: 1x USB4, 2x USB 3.2 Gen 2, 3x USB 3.2 Gen 1, 4x USB 2.0
    • Internal: USB Type-C & multiple headers
  • Cooling: 6 fan/water cooling headers + advanced monitoring
  • Form Factor: ATX (30.5 x 24.4 cm)

CPU & Chipset

  • Socket: LGA1851 (Supports Intel® Core™ Ultra processors)
  • Chipset: Intel® Z890 Express
  • L3 Cache: Varies by CPU

Memory

  • Type: DDR5
  • Speeds: Up to 9200MT/s (O.C.)
  • Capacity: Up to 256GB (4 x 64GB DIMMs)
  • Features: Dual-channel architecture, ECC/Non-ECC support, XMP profiles.

Graphics

  • Integrated Intel® HD Graphics:
    • 1x USB4 Type-C: 3840x2160@144Hz (DisplayPort 2.1)
    • 1x DisplayPort: 3840x2160@144Hz (DisplayPort 2.1)

Audio

  • Codec: Realtek® HD Audio
  • Channels: 2/4/5.1/7.1 (Configurable via software)

Networking

  • LAN: Realtek® 2.5GbE
  • Wi-Fi: MediaTek Wi-Fi 7 (MT7925 or RTL8922AE)
    • Frequencies: 2.4/5/6 GHz
    • Bluetooth 5.4
    • Note: Windows 11 SV3 required for Wi-Fi 7 features.

Expansion Slots

  • CPU:
    • 1x PCIe 5.0 x16 (Graphics/Storage)
  • Chipset:
    • 2x PCIe 4.0 x4

Storage

  • M.2 Slots:
    • CPU: 1x PCIe 5.0, 1x PCIe 4.0
    • Chipset: 1x PCIe 4.0, 1x PCIe 4.0/SATA
  • SATA Ports: 4x SATA 6Gb/s
  • RAID Support: NVMe & SATA (RAID 0/1/5/10)

USB Ports

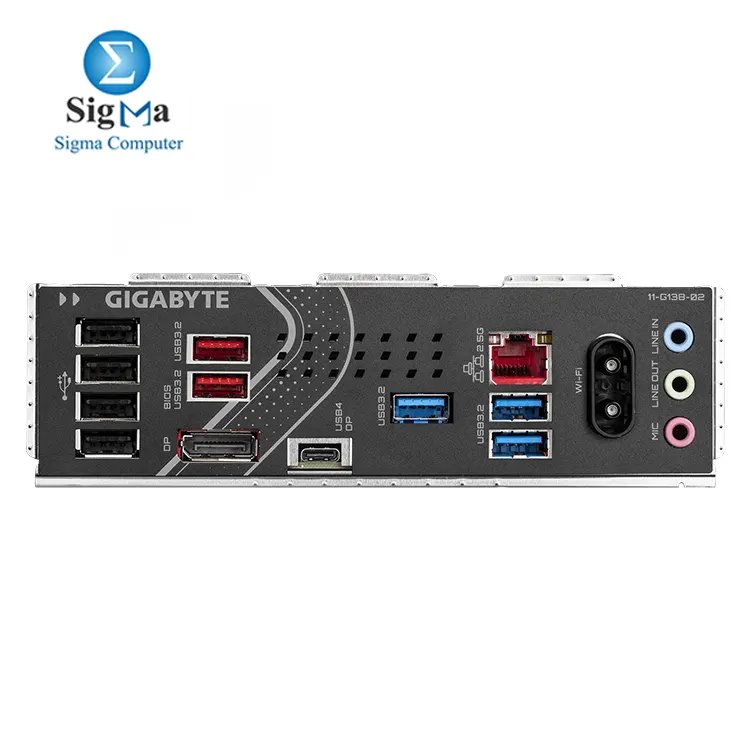

  • Back Panel:
    • 1x USB4 Type-C
    • 2x USB 3.2 Gen 2 (Type-A)
    • 3x USB 3.2 Gen 1
    • 4x USB 2.0
  • Internal:
    • USB Type-C (USB 3.2 Gen 2 header)
    • 2x USB 3.2 Gen 1 headers
    • 2x USB 2.0 headers

Cooling & Monitoring

  • 6 Fan Headers (CPU/System/Water Cooling)
  • Voltage, Temperature, and Fan Speed Monitoring

BIOS

  • Chip: 256 Mbit Flash (AMI UEFI BIOS)
  • Features: Q-Flash, Q-Flash Plus

Form Factor

  • Type: ATX (30.5 x 24.4 cm)
CategoryDesktop
SubcategoryMotherboard
BrandGigabyte
ModelZ890
