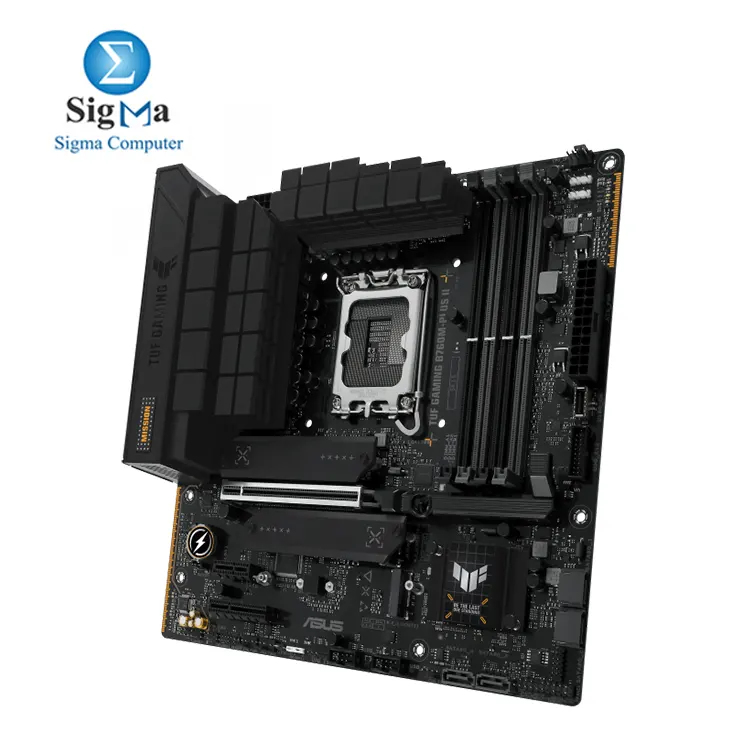

ASUS TUF GAMING B760M-PLUS II is a micro-ATX motherboard with support for Intel 14th 13th and 12th Gen CPUs DDR5 memory up to 192GB 7800MHz OC PCIe 5.0 3 M.2 slots 2.5Gb Ethernet USB 20Gbps and enhanced cooling

reviews | Write a review

8749 LE

Availability: In Stock

shipped by (sigma)

Point: 30

Brand : ASUS

Model : TUF GAMING B760M-PLUS II

Seller : sigma

Viewed : 471 items

ASUS TUF GAMING B760M-PLUS II:

CPU Support: Intel® Core™ 14th, 13th, and 12th Gen (LGA1700 socket)

Chipset: Intel® B760

Memory: 4 x DIMM slots, Max. 192GB, DDR5 (up to 7800 MHz OC)

Graphics: 1 x DisplayPort, 1 x HDMI™ (supports up to 4K@60Hz)

Expansion Slots: 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x4, 1 x PCIe 3.0 x1

Storage: 3 x M.2 slots (PCIe 4.0) and 4 x SATA 6Gb/s ports

Ethernet: Realtek 2.5Gb Ethernet with TUF LANGuard

USB Ports: 1 x USB 20Gbps (USB Type-C®), 1 x USB 10Gbps, 2 x USB 5Gbps, 4 x USB 2.0

Audio: Realtek 7.1 Surround Sound, Premium capacitors, Optical S/PDIF

Special Features: ASUS TUF Protection, Aura Sync RGB, M.2 heatsinks, SafeSlot Core+

Form Factor: Micro-ATX (9.6 x 9.6 inches)

Seller note

010084167000108

Fast delivery
2-5 Days
Online Support
Chat and Phone
order protection
secured information
promotion gift
special offers!
money back
return over 14 days

Model:

TUF GAMING B760M-PLUS II

CPU Support:

Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold, and Celeron® Processors
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Check the CPU support list on the official ASUS website.

Chipset:

Intel® B760 Chipset

Memory:

4 x DIMM slots, Max. 192GB, DDR5
Supported memory speeds (OC): 7800+(OC), 7600(OC), 7400(OC), 7200(OC), 7000(OC), 6800(OC), 6600(OC), 6400(OC), 6200(OC), 6000(OC), 5800(OC), 5600, 5400, 5200, 5000, 4800 Non-ECC, Un-buffered Memory
Dual-channel memory architecture
Supports Intel® Extreme Memory Profile (XMP) and ASUS Enhanced Memory Profile II (AEMP II)
Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Graphics:

1 x DisplayPort (Supports up to 4K@60Hz via DisplayPort 1.4)
1 x HDMI™ port (Supports up to 4K@60Hz via HDMI 2.1)
Graphics specifications may vary based on CPU type.

Expansion Slots:

1 x PCIe 5.0 x16 slot
1 x PCIe 4.0 x4 slot
1 x PCIe 3.0 x1 slot

Storage:

3 x M.2 slots and 4 x SATA 6Gb/s ports
M.2_1 (PCIe 4.0 x4), M.2_2 (PCIe 4.0 x4), M.2_3 (PCIe 4.0 x2)
Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.

Ethernet:

1 x Realtek 2.5Gb Ethernet
TUF LANGuard

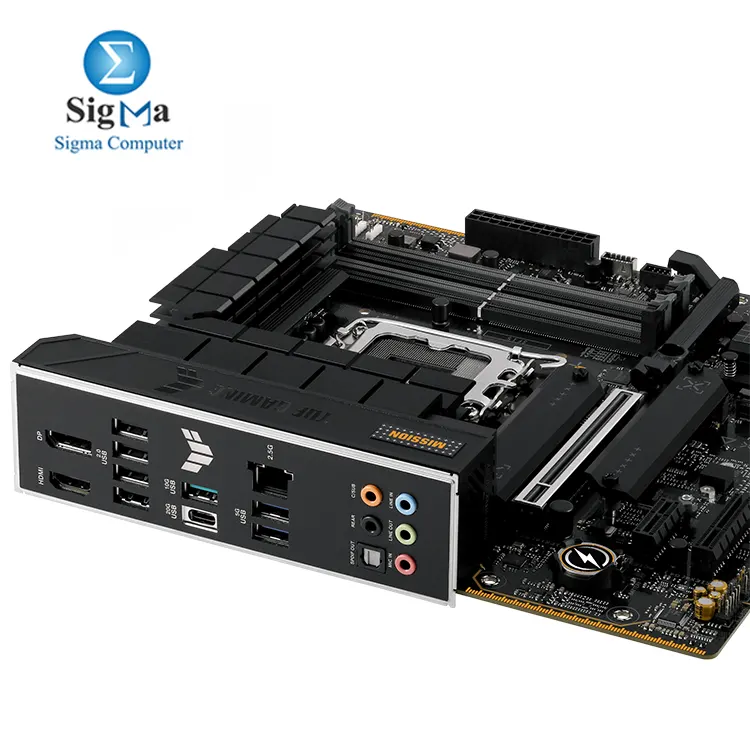

USB Ports (Rear):

1 x USB 20Gbps port (USB Type-C®)
1 x USB 10Gbps port (USB Type-A)
2 x USB 5Gbps ports (USB Type-A)
4 x USB 2.0 ports (USB Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port

USB Ports (Front):

1 x USB 10Gbps connector (USB Type-C®)
1 x USB 5Gbps header (supports 2 additional USB 5Gbps ports)
3 x USB 2.0 headers (supports 5 additional USB 2.0 ports)

Audio:

Realtek 7.1 Surround Sound High Definition Audio CODEC
Supports 24-Bit/192 kHz playback
Features include audio shielding, rear optical S/PDIF out port, premium audio capacitors, and dedicated audio PCB layers.

Internal I/O Connectors:

1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connectors
3 x Addressable Gen 2 headers
1 x Clear CMOS header
1 x Front Panel Audio header
1 x System Panel header with chassis intrusion function
1 x Thunderbolt™ (USB4®) header

Special Features:

ASUS TUF PROTECTION: DIGI+ VRM, ESD Guards, TUF LANGuard, Overvoltage Protection, SafeSlot Core+, Stainless-steel back I/O
ASUS Q-Design: M.2 Q-Latch, PCIe Slot Q-Release, Q-DIMM, Q-LED
ASUS Thermal Solution: M.2 heatsinks, VRM heatsink design
Aura Sync: Addressable Gen 2 headers
ASUS EZ DIY: CPU Socket lever protector, ProCool, Pre-mounted I/O shield, SafeDIMM

Software Features:

Armoury Crate, AURA Sync, Fan Xpert 2+, Two-Way AI Noise Cancelation
AI Suite 3, TUF GAMING CPU-Z
DTS Audio Processing, Norton 360 for Gamers (60-day free trial), WinRAR (40-day free trial)

BIOS:

128 Mb Flash ROM, UEFI AMI BIOS
ASUS EZ Flash 3, CrashFree BIOS 3, UEFI BIOS EZ Mode

Manageability:

WOL by PME, PXE

Accessories:

2 x SATA 6Gb/s cables
1 x M.2 rubber package
1 x TUF GAMING sticker
2 x Screw packages for M.2 SSD
1 x TUF certification card
1 x Quick start guide

Operating System:

Windows® 11, Windows® 10 64-bit

Form Factor:

micro-ATX Form Factor
9.6 x 9.6 inches (24.4 cm x 24.4 cm)
