ASUS ROG STRIX 1000W Platinum PSU offers 1000W total output 80Plus Platinum efficiency multiple protection features and a Cybenetics A noise level certification with 0dB fan technology

reviews | Write a review

12499 LE

Availability: In Stock only 5 item left

shipped by (sigma)

Point: 30

Model: ROG STRIX 1000W Platinum
Form Factor: ATX12V
PFC Type: Active PFC
ATX Standard: ATX 3.1
Dimensions: 160 x 150 x 86 mm
Efficiency: 80Plus Platinum
MTBF (Mean Time Between Failures): >120,000 hrs @ 25°C
Protection Features: OPP/OVP/UVP/SCP/OCP/OTP
Hazardous Materials: ROHS Compliant
AC Input Range: 100-240Vac
DC Output Voltages: +3.3V, +5V, +12V, -12V, +5Vsb
Maximum Load:
- +3.3V: 25A
- +5V: 25A
- +12V: 83.3A
- -12V: 0.3A
- +5Vsb: 3A
Combined Load:
- +3.3V: 130W
- +5V: 130W
- +12V: 1000W
- -12V: 3.6W
- +5Vsb: 15W
Total Output: 1000W

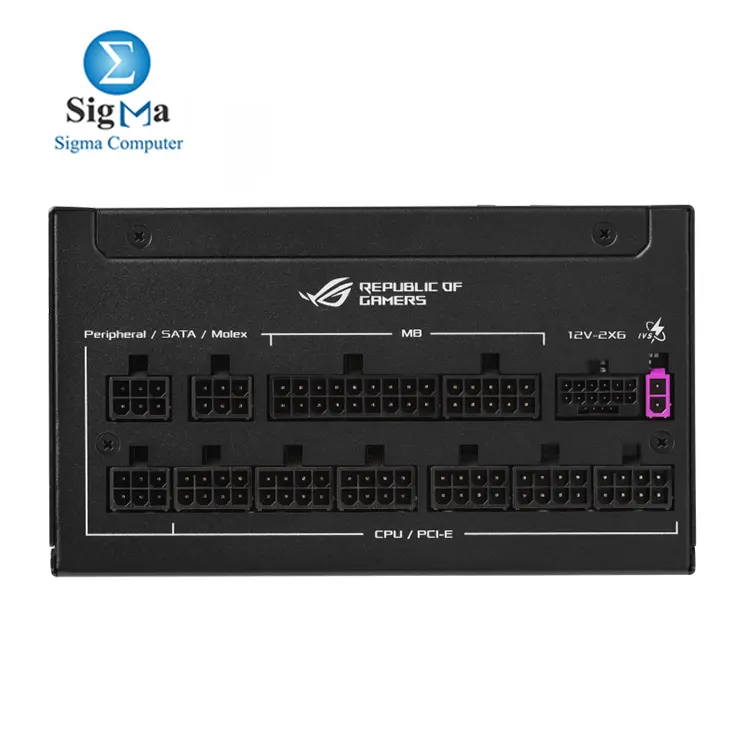

Cable Connectors:
- MB 24/20-pin x 1
- CPU 4+4-pin x 2
- PCI-E 16-pin x 1 (both PSU & component side)
- PCI-E 6+2-pin x 4
- SATA x 6
- Peripheral x 3

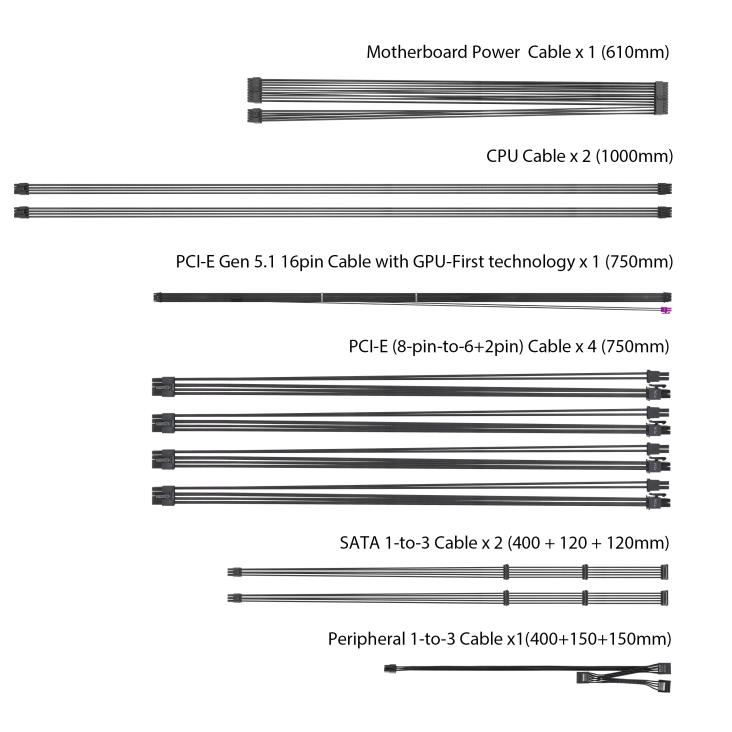

Package Contents:
- Power Cord x 1
- Motherboard Power Cable x 1 (610mm)
- CPU Cable x 2 (1000mm)
- PCI-E Gen 5.1 (16-pin-to-16-pin) Cable x 1 (750mm)
- PCI-E (8-pin-to-6+2pin) Cable x 4 (750mm)
- SATA 1-to-3 Cable x 2 (400+120+120mm)
- Peripheral 1-to-3 Cable x 1 (400+150+150mm)
- ROG Strix DIY sticker x 1
- User Manual x 1
Weight: 1.81 kg (single PSU)
Cybenetics Noise Level Certification: A+
0dB Technology: Supported. The fan shuts off entirely when the PSU is under certain load.
0dB Fan Button: Yes. When the button is ON, the fan will only spin up when the system reaches a certain load. When the button is OFF, the fan will continuously spin at all load levels.
