ASUS Prime B760-PLUS ATX motherboard with LGA1700 socket DDR5 PCIe 5.0 3x M.2 PCIe 4.0 2.5Gb LAN USB-C DisplayPort HDMI and Aura Sync RGB

reviews | Write a review

7500 LE

Availability: In Stock

shipped by (sigma)

Point: 30

Brand : ASUS

Model : PRIME B760-PLUS

Seller : sigma

Viewed : 378 items

ASUS Prime B760-PLUS | ATX | LGA 1700

Supports Intel® 12th, 13th & 14th Gen CPUs

DDR5 up to 192GB, 7200+ MHz (OC)

3x M.2 PCIe 4.0, 4x SATA

1x PCIe 5.0 x16, 1x PCIe 4.0 x16, 2x PCIe 3.0 x1

Realtek 2.5Gb LAN

USB 3.2 Gen 2x2 Type-C®, front USB-C

DisplayPort, HDMI 2.1, VGA

Aura Sync RGB, Thunderbolt™ header

Enhanced cooling & audio, ASUS Q-Design

Seller note

010084167000130
ضمــــــان 3 سنــــوات

Fast delivery
2-5 Days
Online Support
Chat and Phone
order protection
secured information
promotion gift
special offers!
money back
return over 14 days

ASUS Prime B760-PLUS
An Intel® B760 LGA 1700 ATX motherboard with PCIe 5.0, three PCIe 4.0 M.2 slots, DDR5, Realtek 2.5Gb Ethernet, DisplayPort, VGA, HDMI™, SATA 6 Gbps, USB 3.2 Gen 2x2 Type-C®, front USB 3.2 Gen 1 Type-C®, Thunderbolt™ (USB4®) support, Aura Sync

CPU Support
Intel® LGA 1700 Socket: Ready for 13th and 12th Gen Intel® processors
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

Chipset
Intel® B760 Chipset

Memory

4 x DIMM, Max. 192GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 MHz, Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
ASUS OptiMem II

Graphics

1 x DisplayPort (Max. 4K@60Hz)
1 x VGA Port
1 x HDMI™ Port (HDMI 2.1, Max. 4K@60Hz)
Graphics specifications vary by CPU

Expansion Slots

1 x PCIe 5.0 x16 slot (from CPU)
1 x PCIe 4.0 x16 slot (x4 mode)
2 x PCIe 3.0 x1 slots

Storage

3 x M.2 slots
- M.2_1: PCIe 4.0 x4 (2242/2260/2280)
- M.2_2: PCIe 4.0 x4 (2242/2260/2280/22110)
- M.2_3: PCIe 4.0 x2 (2242/2260/2280)
4 x SATA 6Gb/s ports
Supports Intel® Rapid Storage Technology with RAID 0/1/5/10

Ethernet

Realtek 2.5Gb Ethernet

Wireless & Bluetooth

Vertical M.2 slot (Key E, CNVi & PCIe)
Wi-Fi module sold separately

USB Ports

Rear:
- 1 x USB 3.2 Gen 2x2 Type-C®
- 2 x USB 3.2 Gen 2 Type-A
- 1 x USB 3.2 Gen 1 Type-A
- 2 x USB 2.0 Type-A
Front:
- 1 x USB 3.2 Gen 1 Type-C®
- 1 x USB 3.2 Gen 1 header (2 ports)
- 2 x USB 2.0 headers (4 ports)

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC
Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
Up to 24-bit/192 kHz playback
Audio shielding, premium capacitors, and dedicated audio PCB layers
HD audio front panel required for 7.1 output

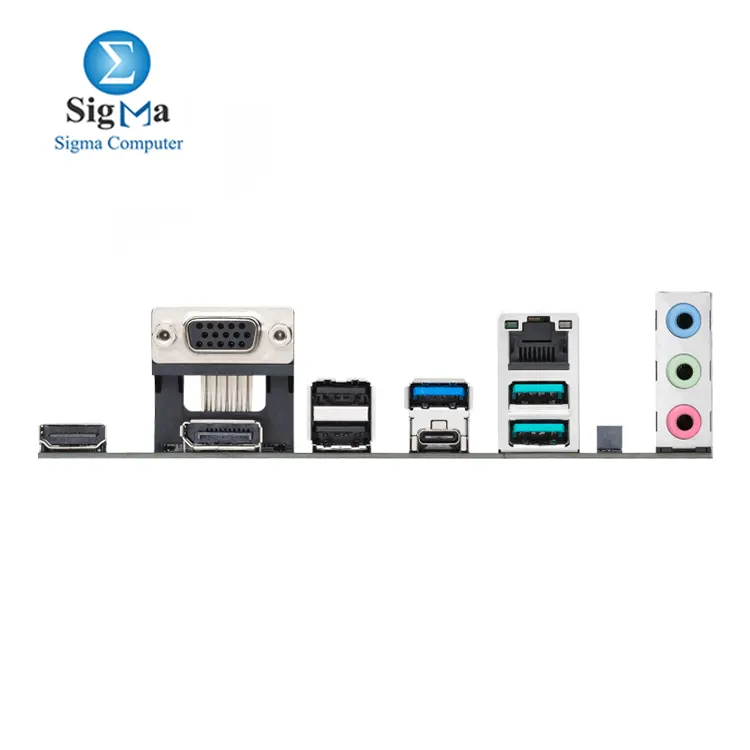

Back Panel I/O

1 x USB 3.2 Gen 2x2 Type-C®
2 x USB 3.2 Gen 2 Type-A
1 x USB 3.2 Gen 1 Type-A
2 x USB 2.0 Type-A
1 x DisplayPort
1 x VGA port
1 x HDMI™ port
1 x Realtek 2.5Gb Ethernet port
1 x Vertical M.2 slot (Key E)
3 x Audio jacks

Internal I/O Connectors

1 x 24-pin ATX Power Connector
1 x 8-pin 12V Power Connector
3 x M.2 Slots
4 x SATA 6Gb/s Ports
1 x USB 3.2 Gen 1 Type-C®
1 x USB 3.2 Gen 1 header (2 ports)
2 x USB 2.0 headers (4 ports)
1 x Front Panel Audio header
1 x Clear CMOS header
1 x COM Port header
1 x S/PDIF Out header
1 x SPI TPM header (14-1 pin)
1 x Thunderbolt™ (USB4®) header
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x 20-3 pin System Panel header with Chassis Intrude

Cooling Features

1 x 4-pin CPU Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
VRM Heatsinks, M.2 Heatsink, PCH Heatsink
Fan Xpert 2+

Special Features

ASUS 5X Protection III (DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core+, Stainless-Steel Back I/O)
ASUS Q-Design (Q-DIMM, Q-LED Core, Q-Slot)
ASUS EZ DIY (ProCool, CrashFree BIOS 3, EZ Flash 3)
Aura Sync RGB (Aura RGB + Gen 2 Addressable Headers)
ASUS OptiMem II, Enhanced Memory Profile II

Software

Armoury Crate (Aura Sync, Aura Creator, Fan Xpert 2+, Power Saving)
AI Suite 3 (DIGI+ VRM, PC Cleaner)
ASUS CPU-Z
Norton 360 Deluxe (60 Days Trial)
WinRAR

BIOS

128Mb Flash ROM, UEFI AMI BIOS
EZ Mode, Advanced Mode

Manageability

WOL by PME, PXE

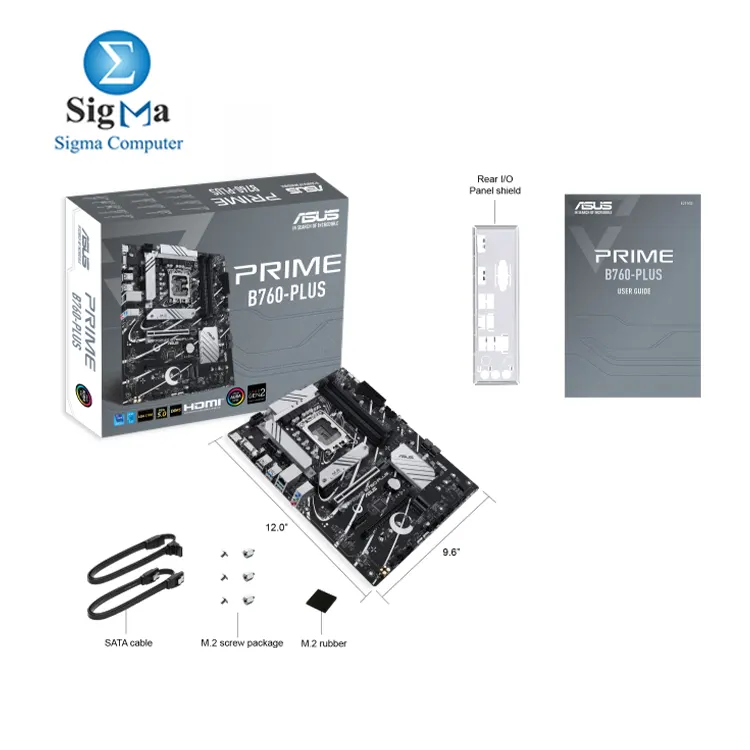

Accessories

2 x SATA 6Gb/s Cables
1 x I/O Shield
1 x M.2 Rubber Package
2 x Screw Packages for M.2 SSD
1 x User Guide

Operating System

Windows® 11 / Windows® 10 64-bit

Form Factor

ATX (30.5 cm x 24.4 cm)
