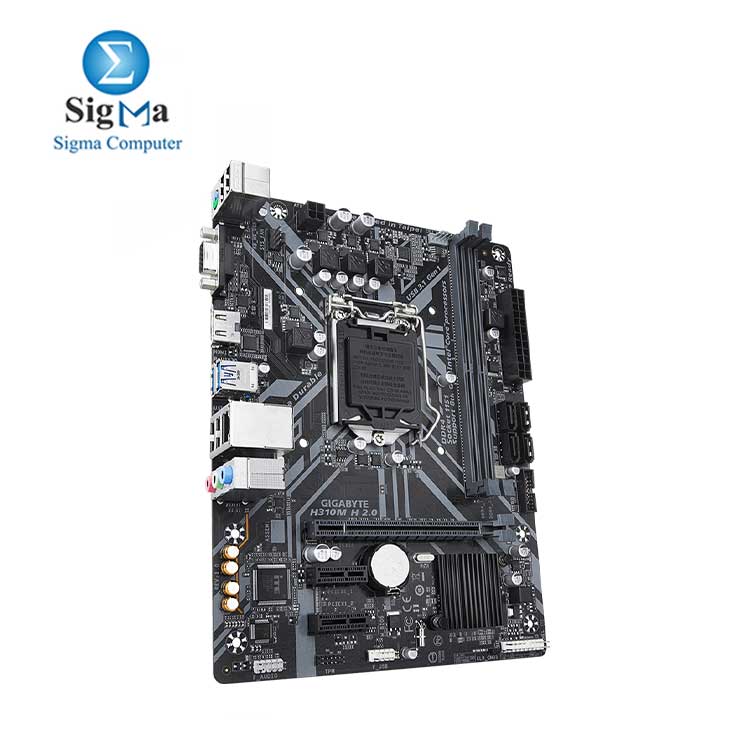

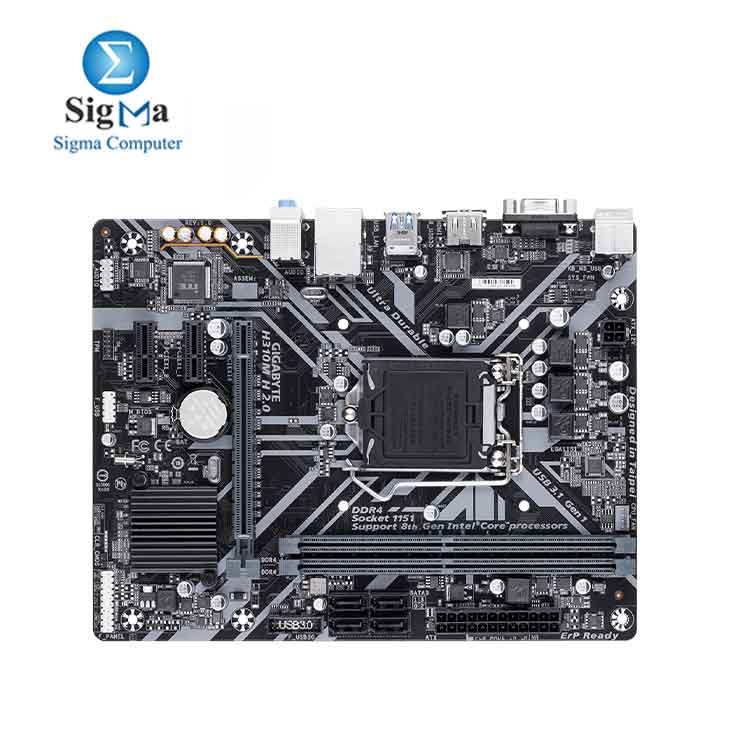

GIGABYTE H310M H 2.0 Motherboard
-
- upport for 9th and 8th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
- L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
- Chipset
- Intel® H310 Express Chipset
- Memory
- 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
- Dual channel memory architecture
- Support for DDR4 2666/2400/2133 MHz memory modules
- Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for Extreme Memory Profile (XMP) memory modules
* To support 2666 MHz or XMP memory, you must install an 8th Generation Intel® Core™ i7/i5 processor.
(Please refer "Memory Support List" for more information.)
Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.2.
Maximum shared memory of 1 GB
- Audio
- Realtek® ALC887 codec
- High Definition Audio
- 2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
- LAN
- Realtek® GbE LAN chip (10/100/1000 Mbit)
- Expansion Slots
- 1 x PCI Express x16 slot, running at x16
(The PCIEX16 slot conforms to PCI Express 3.0 standard.)
- 2 x PCI Express x1 slots
(The PCI Express x1 slots conform to PCI Express 2.0 standard.)
- Storage Interface
Chipset:
- 4 x SATA 6Gb/s connectors
Chipset:
- 4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
- 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
- Internal I/O Connectors
- 1 x 24-pin ATX main power connector
- 1 x 4-pin ATX 12V power connector
- 4 x SATA 6Gb/s connectors
- 1 x CPU fan header
- 1 x system fan header
- 1 x front panel header
- 1 x front panel audio header
- 1 x USB 3.1 Gen 1 header
- 1 x USB 2.0/1.1 headers
- 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
- 1 x Clear CMOS jumper

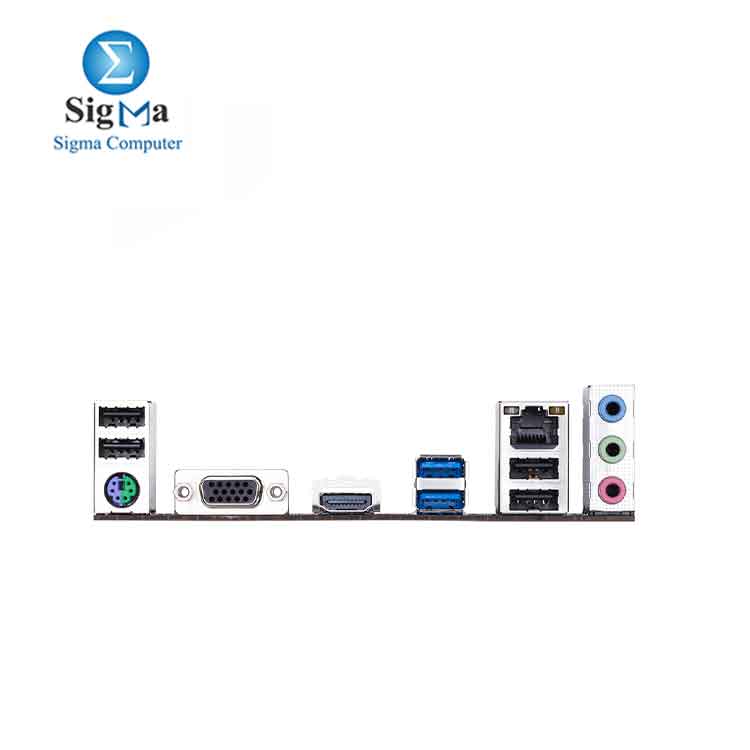

- Back Panel Connectors
- 1 x PS/2 keyboard/mouse port
- 1 x D-Sub port
- 1 x HDMI port
- 2 x USB 3.1 Gen 1 ports
- 4 x USB 2.0/1.1 ports
- 1 x RJ-45 port
- 3 x audio jacks
- I/O Controller
- iTE® I/O Controller Chip
- H/W Monitoring
- Voltage detection
- Temperature detection
- Fan speed detection
- Overheating warning
- Fan fail warning
- Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
- BIOS
- 1 x 128 Mbit flash
- Use of licensed AMI UEFI BIOS
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- Unique Features
- Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
3D OSD
@BIOS
AutoGreen
Cloud Station
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
Platform Power Management
Smart Backup
Smart Keyboard
Smart TimeLock
Smart HUD
System Information Viewer
USB Blocker
V-Tuner
- Support for Q-Flash
- Support for Xpress Install
- Bundled Software
- Norton® Internet Security (OEM version)
- Realtek® 8118 Gaming LAN Bandwidth Control Utility
- Operating System
- Support for Windows 10 64-bit
- Form Factor
- Micro ATX Form Factor; 22.6cm x 17.4cm
Category | Desktop |
Subcategory | Motherboard |
Brand | Gigabyte |
Model | H310M |
Motherboard Type | Intel |
Socket | LGA 1151 |
chipset | H310M |
