Gigabyte RTX 5060 WINDFORCE OC 8G – 2512MHz, 3840 CUDA cores, 8GB GDDR7 128-bit at 28Gbps, PCIe 5.0, 3x DP 2.1b + 1x HDMI 2.1b | 19000 EGP

Gigabyte RTX 5060 WINDFORCE OC 8G 2512MHz 3840 CUDA cores 8GB GDDR7 128-bit at 28Gbps PCIe 5.0 3x DP 2.1b 1x HDMI 2.1b

19000 LE
Availability: In Stock
shipped by (sigma)
Point: 30

Brand : Gigabyte brand

Seller : sigma

Viewed : 47 items

Model: Gigabyte RTX 5060 WINDFORCE OC 8G
Core Clock: 2512 MHz
CUDA Cores: 3840
Memory: 8GB GDDR7, 128-bit, 28 Gbps
Outputs: 3x DP 2.1b, 1x HDMI 2.1b
Power: 1x 8-Pin, 550W PSU recommended
Bus: PCIe 5.0
Size: 199 x 116 x 40 mm
Max Resolution: 7680x4320
Multi-View: 4 displays

Model: Gigabyte GeForce RTX™ 5060 WINDFORCE OC 8G
Part Number: GV-N5060WF2OC-8GD

GPU Specifications:

  • Graphics Processing: GeForce RTX™ 5060

  • Core Clock: 2512 MHz (Reference: 2497 MHz)

  • CUDA® Cores: 3840

  • DirectX: 12 API

  • OpenGL: 4.6

Memory:

  • Memory Size: 8 GB

  • Memory Type: GDDR7

  • Memory Clock: 28 Gbps

  • Memory Bus: 128-bit

Display Support:

  • Max Digital Resolution: 7680x4320

  • Multi-View: 4 Displays

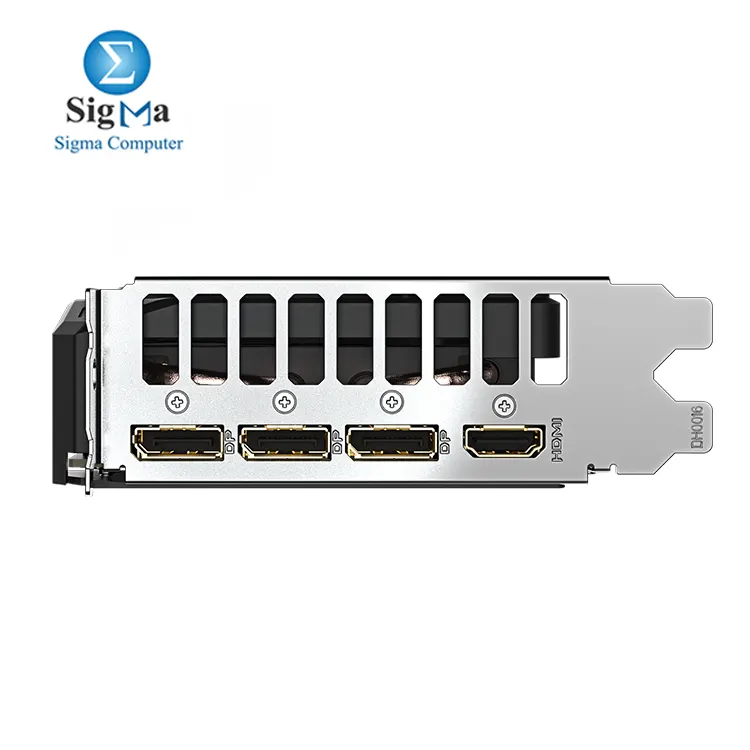

  • Output Ports:

    • 3x DisplayPort 2.1b

    • 1x HDMI 2.1b

Physical Specs:

  • Card Dimensions: 199 x 116 x 40 mm

  • PCB Form: ATX

Power & Requirements:

  • Recommended PSU: 550W

  • Power Connector: 1x 8-Pin

  • Interface: PCI Express 5.0

Accessories:

  • Quick Guide

CategoryDesktop
SubcategoryGraphic Card
BrandGigabyte
ModelGV-N5060WF2OC-8GD
