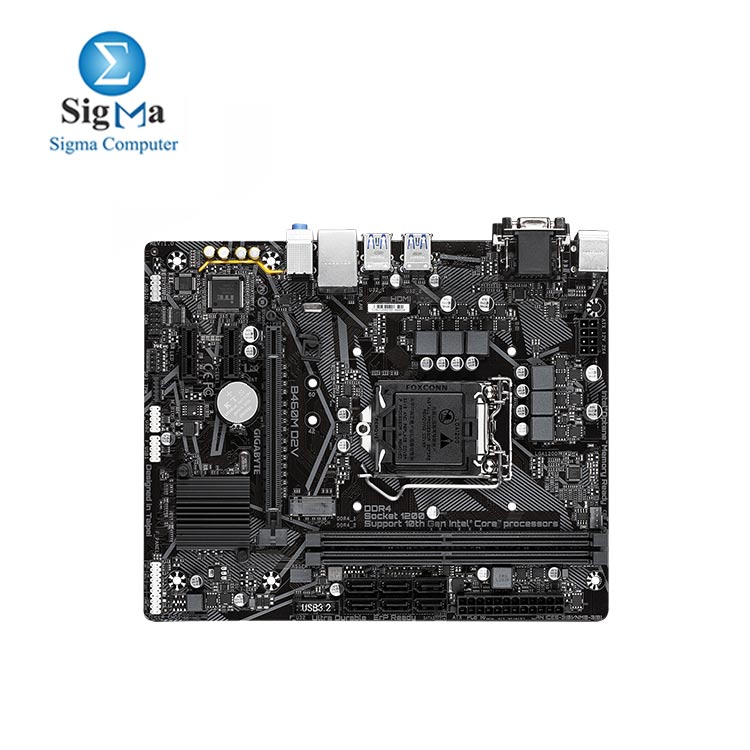

Gigabyte B460M D2V Motherboard 10th Gen PCIe Gen3 x4 M.2 Anti-Sulfur Resistor Ultra Durable Motherboard

reviews | Write a review

1700 LE

shipped by (sigma)

Point: 25

Brand : Gigabyte

Model : B460M D2V

Seller : sigma

Viewed : 4428 items

Supports 10th Gen Intel^® Core™ Processors

Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs

Hybrid Digital PWM Design

High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting

Ultra-Fast M.2 with PCIe Gen3 X4 & SATA Interface

GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management

Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP

Anti-Sulfur Resistors Design

Ultra Durable™ 15KV Surge LAN Protection

Intel^® Optane™ Memory Ready

Seller note

Fast delivery
2-5 Days
Online Support
Chat and Phone
order protection
secured information
promotion gift
special offers!
money back
return over 14 days

CPU
1. Support for 10th Generation Intel^® Core™ i9 processors/Intel^® Core™ i7 processors/Intel^® Core™ i5 processors/Intel^® Core™ i3 processors/Intel^® Pentium^® processors/Intel^® Celeron^® processors in the LGA1200 package
2. L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
Chipset
1. Intel^® B460 Express Chipset
Memory
1. Intel^® Core™ i9/i7 processors:
  Support for DDR4 2933/2666/2400/2133 MHz
2. Intel^® Core™ i5/i3/Pentium^®/Celeron^® processors:
  Support for DDR4 2666/2400/2133 MHz
3. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
4. Dual channel memory architecture
5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
7. Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Onboard Graphics
Integrated Graphics Processor-Intel^® HD Graphics support:
1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
  * The DVI-D port does not support D-Sub connection by adapter.
Maximum shared memory of 512 MB
Audio
1. Realtek^® ALC887 codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel
  * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
LAN
1. Realtek^® GbE LAN chip (100/1000 Mbit)
Expansion Slots
1. 1 x PCI Express x16 slot, running at x16
2. 2 x PCI Express x1 slots
  (The PCI Express slots conform to PCI Express 3.0 standard.)
Supports up to ASPM L1.2 power management protocols.
Storage Interface
1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support)
2. 6 x SATA 6Gb/s connectors
3. Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10
  * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
Intel^® Optane™ Memory Ready
M.2 connectors support up to ASPM L1.2 PCIe power management protocols.
USB
Chipset:
1. 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB headers)
2. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x CPU fan header
4. 1 x system fan header
5. 1 x RGB LED strip header
6. 6 x SATA 6Gb/s connectors
7. 1 x M.2 Socket 3 connector
8. 1 x front panel header
9. 1 x front panel audio header
10. 1 x USB 3.2 Gen 1 header
11. 2 x USB 2.0/1.1 headers
12. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
13. 1 x serial port header
14. 1 x Clear CMOS jumper

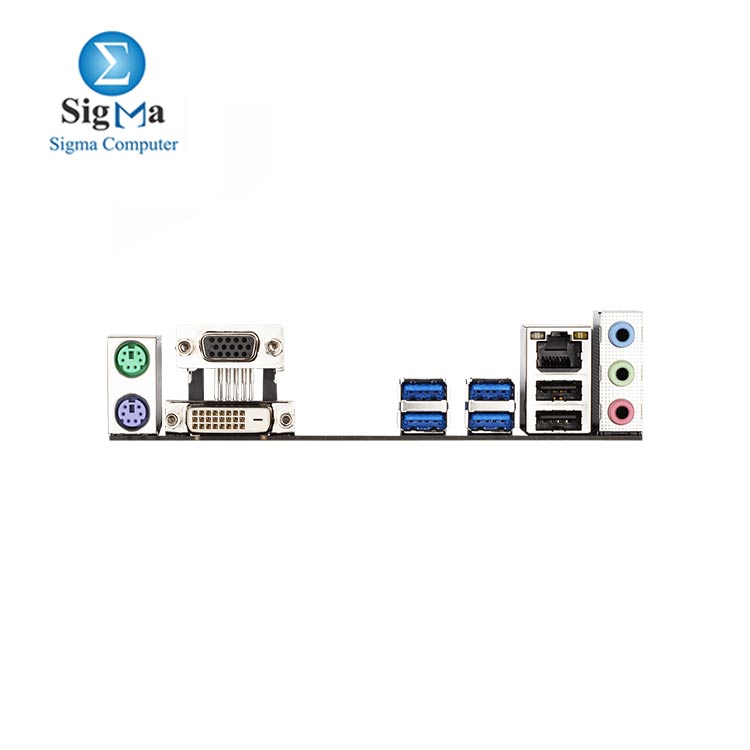

Back Panel Connectors
1. 1 x PS/2 mouse port
2. 1 x PS/2 keyboard port
3. 1 x D-Sub port
4. 1 x DVI-D port
5. 4 x USB 3.2 Gen 1 ports
6. 2 x USB 2.0/1.1 ports
7. 1 x RJ-45 port
8. 3 x audio jacks
I/O Controller
1. iTE^® I/O Controller Chip
H/W Monitoring
1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Overheating warning
5. Fan fail warning
6. Fan speed control
  * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
1. 1 x 128 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
1. Support for APP Center
  * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  @BIOS
  Ambient LED
  EasyTune
  Fast Boot
  Game Boost
  ON/OFF Charge
  Smart Backup
  System Information Viewer
2. Support for Q-Flash
3. Support for Xpress Install
Bundled Software
1. Norton^® Internet Security (OEM version)
2. Realtek^® 8118 Gaming LAN bandwidth Control Utility
Operating System
1. Support for Windows 10 64-bit
Form Factor
1. Micro ATX Form Factor; 22.6cm x 18.5cm

Category	Desktop
Subcategory	Motherboard
Brand	Gigabyte
Model	B460M D2V
Motherboard Type	Intel
Socket	LGA 1200
chipset	B460
