GIGABYTE Z490 UD AC LGA 1200 Intel Z490 ATX Motherboard with Dual M.2 SATA 6Gb s USB 3.2 Gen 2 Intel 802.11ac

reviews | Write a review

3400 LE

shipped by (sigma)

Point: 50

Brand : Gigabyte

Model : Z490 UD AC

Seller : sigma

Viewed : 3361 items

Intel^® Z490 Ultra Durable Motherboard with Direct 11+1 Phases Digital VRM, Extended MOS Heatsink, Dual NVMe PCIe 3.0 x4 M.2, GbE Gaming LAN, Integrated I/O Shield, Q-Flash PLUS, RGB FUSION 2.0

Seller note

Fast delivery
2-5 Days
Online Support
Chat and Phone
order protection
secured information
promotion gift
special offers!
money back
return over 14 days

CPU
1. Support for 10th Generation Intel^® Core™ i9 processors/Intel^® Core™ i7 processors/Intel^® Core™ i5 processors/Intel^® Core™ i3 processors/Intel^® Pentium^® processors/Intel^® Celeron^® processors in the LGA1200 package
2. L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
Chipset
1. Intel^® Z490 Express Chipset
Memory
1. Intel^® Core™ i9/i7 processors:
  Support for DDR4 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules
2. Intel^® Core™ i5/i3/Pentium^®/Celeron^® processors:
  Support for DDR4 2666/2400/2133 MHz memory modules
3. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
4. Dual channel memory architecture
5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
7. Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Onboard Graphics
1. Integrated Graphics Processor-Intel^® HD Graphics support:
  1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
  * Support for HDMI 1.4 version and HDCP 2.3.
2. Maximum shared memory of 512 MB
Audio
1. Realtek^® ALC887 codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel
  * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
4. Support for S/PDIF Out
LAN
1. Realtek^® GbE LAN chip (1000 Mbit/100 Mbit)
Wireless Communication module
Intel^® Wi-Fi AC 9462:
1. Intel^® CNVi interface 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
2. BLUETOOTH 5
3. Support for 1x1 11ac wireless standard and up to 433 Mbps data rate
  * Actual data rate may vary depending on environment and equipment.
Expansion Slots
1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
  * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
3. 3 x PCI Express x1 slots
  (All of the PCI Express slots conform to PCI Express 3.0 standard.)
Supports up to ASPM L1.2 power management protocols.
Multi-Graphics Technology
1. Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
Storage Interface
1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A_SB)
2. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe x4/x2 SSD support) (M2M_SB)
3. 6 x SATA 6Gb/s connectors
4. Support for RAID 0, RAID 1, RAID 5, and RAID 10
  * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
5. Intel^® Optane™ Memory Ready
M.2 connectors support up to ASPM L1.2 PCIe power management protocols.
USB
Chipset:
1. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
2. 7 x USB 3.2 Gen 1 ports (5 ports on the back panel, 2 ports available through the internal USB header)
3. 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors
1. 1 x 24-pin ATX main power connector
2. 1 x 4-pin ATX 12V power connector
3. 1 x 8-pin ATX 12V power connector
4. 1 x CPU fan header
5. 4 x system fan headers
6. 2 x addressable LED strip headers
7. 2 x RGB LED strip headers
8. 1 x Q-Flash Plus button
9. 6 x SATA 6Gb/s connectors
10. 2 x M.2 Socket 3 connectors
11. 1 x front panel header
12. 1 x front panel audio header
13. 1 x S/PDIF Out header
14. 1 x USB 3.2 Gen 1 header
15. 1 x USB 2.0/1.1 header
16. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
17. 2 x Thunderbolt™ add-in card connectors
18. 1 x serial port header
19. 1 x Clear CMOS jumper

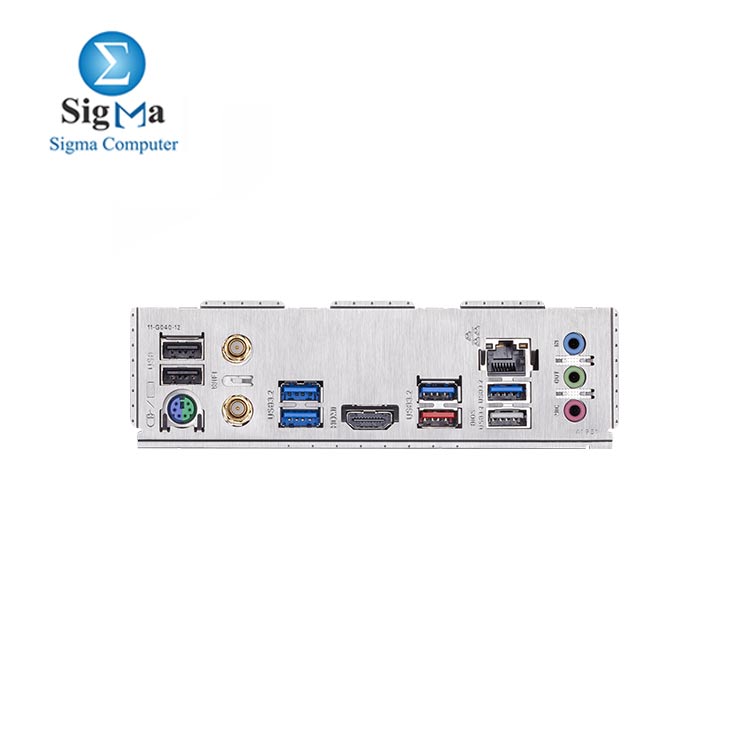

Back Panel Connectors
1. 1 x PS/2 keyboard/mouse port
2. 2 x SMA antenna connectors (1T1R)
3. 1 x HDMI port
4. 1 x USB 3.2 Gen 2 Type-A port (red)
5. 5 x USB 3.2 Gen 1 ports
6. 2 x USB 2.0/1.1 ports
7. 1 x RJ-45 port
8. 3 x audio jacks
I/O Controller
1. iTE^® I/O Controller Chip
H/W Monitoring
1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Overheating warning
5. Fan fail warning
6. Fan speed control
  * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
1. 1 x 256 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
1. Support for APP Center
  * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  @BIOS
  EasyTune
  Fast Boot
  Game Boost
  ON/OFF Charge
  RGB Fusion
  Smart Backup
  System Information Viewer
2. Support for Q-Flash Plus
3. Support for Q-Flash
4. Support for Xpress Install
Bundled Software
1. Norton^® Internet Security (OEM version)
2. Realtek^® 8118 Gaming LAN Bandwidth Control Utility
Operating System
1. Support for Windows 10 64-bit
Form Factor
1. ATX Form Factor; 30.5cm x 24.4cm

Category	Desktop
Subcategory	Motherboard
Brand	Gigabyte
Model	Z490 UD AC
Motherboard Type	Intel
Socket	LGA 1200
chipset	Z490
