Core i3-1005G1 2 4 1.2GHz 3.4GHz 4MB DDR4-3200 Intel UHD Graphics
FreeDOS
Intel UHD Graphics
Supports up to 2 independent displays via native display and 1 external monitor; supports external monitor via HDMI® (up to 4096x2160@24Hz)
Intel SoC (System on Chip) platform
Memory Type
DDR4-2666
Memory Slots
One memory soldered to systemboard, one DDR4 SO-DIMM slot
Max Memory
Up to 12GB (4GB soldered + 8GB SO-DIMM) DDR4-2666 offering
Notes:
The max memory is based on the test results with current Lenovo® memory offerings. The system may support more memory as the technology develops.
Storage
Storage Support
Up to 2 drives, 1x 2.5" HDD + 1x M.2 2242 SSD or 1x 2.5" HDD + 1x M.2 2280 SSD
• 2.5" HDD up to 2TB
• M.2 2242 SSD up to 512GB
• M.2 2280 SSD up to 512GB
• Optional Intel Optane™ Memory integrated with SSD, M.2
2.5" SATA HDD SATA 6Gb/s 5.4K
Removable Storage
Optical
Not Support
Card Reader
4-in-1 card reader (SD, SDHC, SDXC, MMC)
Multi-Media
Audio Chip
High Definition (HD) Audio
Speakers
Stereo speakers, 1.5W x2, Dolby® Audio™
Microphone
Single microphone
Camera
0.3-megapixel, fixed focus
Battery
Battery
Integrated Li-Polymer 30Wh battery
Integrated Li-Polymer 35Wh battery
Max Battery Life
MobileMark® 2014: 5.5 hr (30Wh)
MobileMark 2014: 6 hr (35Wh)
Notes:
All battery life claims are approximate maximum and based on results using the MobileMark 2014 and/or MobileMark 2018 battery-life benchmark tests. Actual battery life will vary and depends on many factors such as product configuration and usage, software use, wireless functionality, power management settings, and screen brightness. The maximum capacity of the battery will decrease with time and use.
Power Adapter
65W round tip (Wall Mount) AC adapter
DESIGN
Display
Display
Size Resolution Touch Type Brightness Surface Aspect Ratio Contrast Ratio Color Gamut Viewing Angle Key Features
15.6" HD (1366x768) None TN 220 nits Anti-glare 16:9 - - - -
15.6" FHD (1920x1080) None TN 220 nits Anti-glare 16:9 - - - -
Notes:
California Electronic Waste Recycling Fee
In California, per state law, Lenovo charges an electronic waste recycling fee on this covered device at the time of sale of the product. For more information, go to https://www.calrecycle.ca.gov/Electronics/Consumer
Touchscreen
Non-touch
Input Device
Keyboard
6-row, multimedia Fn keys, numeric keypad
Keyboard Backlight
Not support
Touchpad
Buttonless Mylar® surface multi-touch touchpad
Mechanical
Dimensions (WxDxH)
362.2 x 251.5 x 19.9 mm (14.3 x 10 x 0.8 inches)
Weight
1.85 kg (4.1 lbs)
Case Color
Abyss blue
Dark orchid
Granite black
Platinum grey
Surface Treatment
IMR
Texture
Case Material
PC + ABS (top), PC + ABS (bottom)
CONNECTIVITY
Network
Onboard Ethernet
Not Support
WLAN + Bluetooth™
802.11ac 1x1 Wi-Fi + Bluetooth 5.0, M.2 card

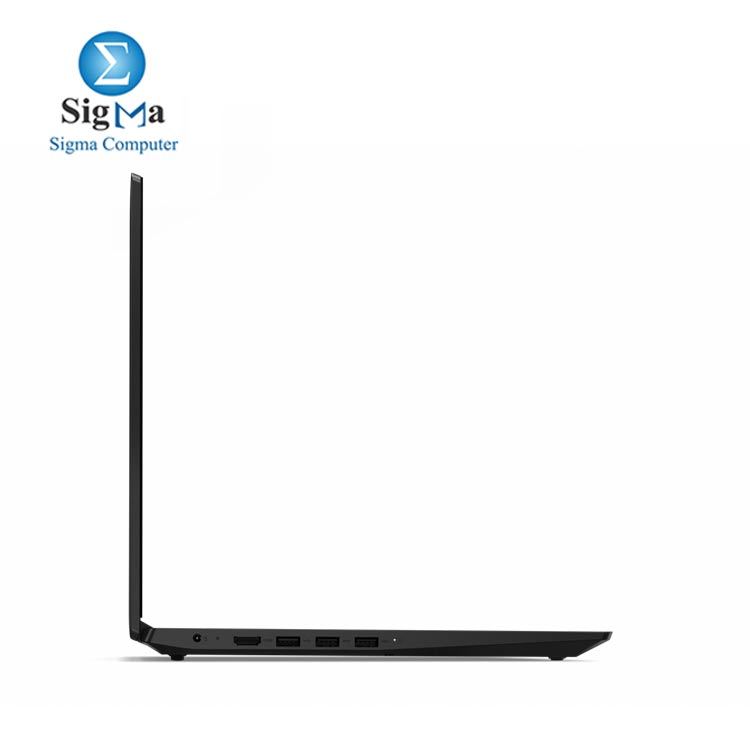

Ports
Standard Ports
1x USB 2.0
2x USB 3.1 Gen 1
1x HDMI 1.4b
1x card reader
1x headphone / microphone combo jack (3.5mm)
1x power connector
Notes:
Depending on many factors, actual data transfer speed may be lower than theoretical speed
SECURITY & PRIVACY
Security
Security Chip
Firmware TPM 2.0 integrated in chipset
Fingerprint Reader
Not Support
BIOS Security
Power-on password
Administrator password
Hard disk password
SERVICE
Warranty
Base Warranty
1-year depot service
1-year depot with 2-year system board service
2-year (1-yr battery) depot service
CERTIFICATIONS
Green Certifications
ErP Lot 3
RoHS
