PERFORMANCE
Processor
Intel Core i7-10750H (6C / 12T, 2.6 / 5.0GHz, 12MB)
Graphics
NVIDIA GeForce RTX 2060 6GB GDDR6
Chipset
Intel HM470
Memory
2x 8GB SO-DIMM DDR4-2933
Memory Slots
Two DDR4 SO-DIMM slots, dual-channel capable
Max Memory
Up to 32GB DDR4-2933 offering
Storage
512GB SSD M.2 2280 PCIe 3.0x4 NVMe + 1TB HDD 5400rpm 2.5"
Storage Support
HDD/SSD mode: up to two drives, 1x 2.5" HDD + 1x M.2 2242/2280 SSD
• 2.5" HDD up to 2TB
• M.2 2280 SSD up to 1TB
• M.2 2242 SSD up to 512GB
Card Reader
None
Optical
None
Audio Chip
High Definition (HD) Audio, Realtek ALC3287 codec
Speakers
Stereo speakers, 2W x2, Dolby Atmos for gaming, HARMAN-branded
Camera
720p with Privacy Shutter
Microphone
2x, Array
Battery
Integrated 60Wh
Max Battery Life
MobileMark 2018: 5.9 hr (60Wh)
Power Adapter
230W Slim Tip
DESIGN
Display
15.6" FHD (1920x1080) IPS 300nits Anti-glare, 144Hz, 100% sRGB, Dolby Vision, DC dimmer
Touchscreen
None

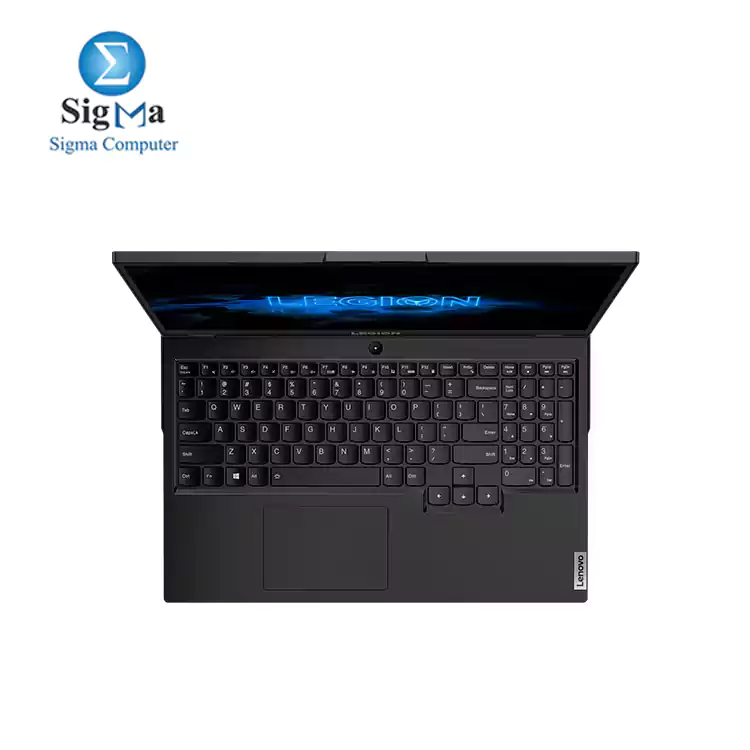

Keyboard
4-Zone RGB LED backlit, Arabic
Case Color
Phantom Black
Surface Treatment
Painting
Case Material
PC + ABS (Top), PC + ABS (Bottom)
Dimensions (WxDxH)
363.06 x 259.61 x 23.57-26.1 mm (14.3 x 10.22 x 0.93-1.03 inches)
Weight
2.46 kg (5.42 lbs)
SOFTWARE
Operating System
FreeDOS
Bundled Software
None
CONNECTIVITY
Ethernet
100/1000M
WLAN + Bluetooth
11ax, 2x2 + BT5.0

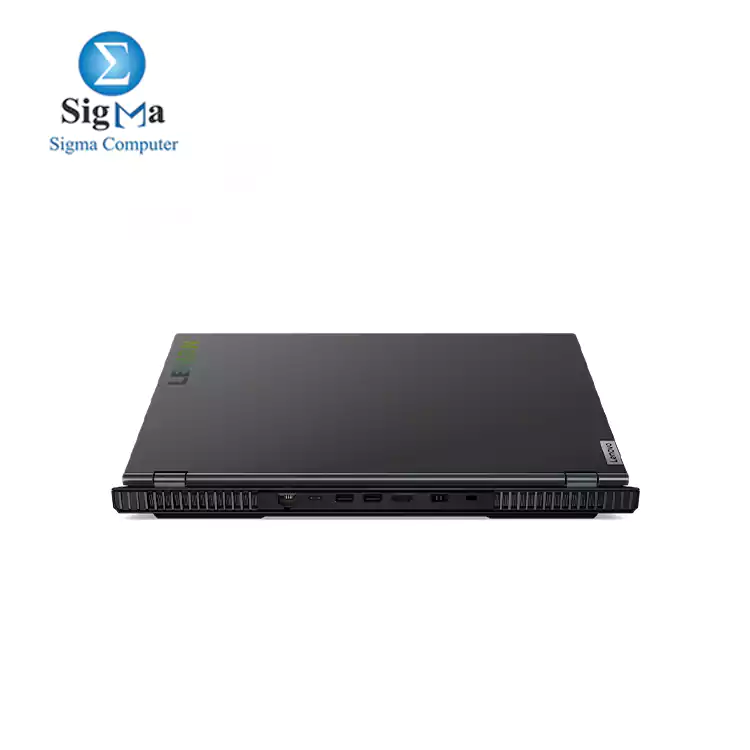

Standard Ports
3x USB 3.2 Gen 1
1x power connector
1x Ethernet (RJ-45)
1x USB 3.2 Gen 1 (Always On)
1x headphone / microphone combo jack (3.5mm)
1x HDMI 2.0
1x USB-C 3.2 Gen 1 (support data transfer and DisplayPort 1.2)
SECURITY & PRIVACY
Fingerprint Reader
None
Physical Locks
Kensington Security Slot
Other Security
Camera privacy shutter
SERVICE
Base Warranty
1-year, Depot
Included Upgrade
2Y Depot/CCI upgrade from 1Y Depot/CCI delivery (5WS0K75720)
ACCESSORIES
Bundled Accessories
Lenovo Legion M300 RGB Gaming Mouse
CERTIFICATIONS
Green Certifications
ErP Lot 3
RoHS compliant
