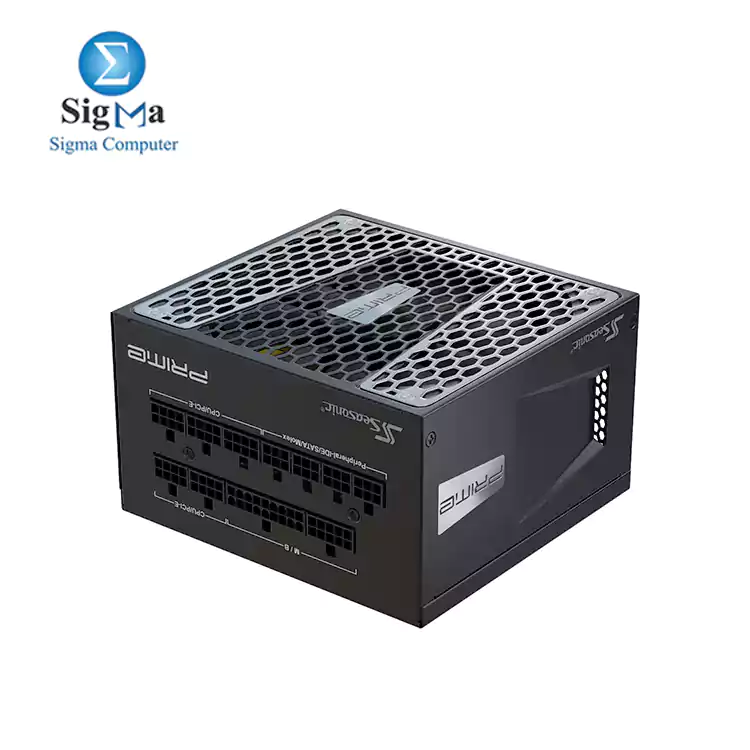

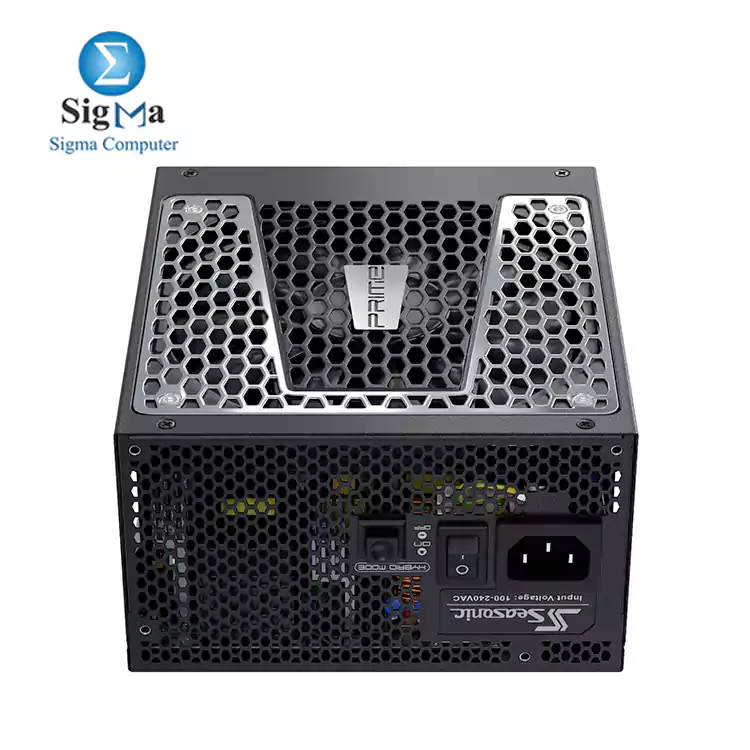

Seasonic PRIME PX-750 750W 80 Platinum Full Modular Power Supply

Seasonic PRIME PX-750 750W 80 Platinum Full Modular Power Supply

reviews | Write a review

5200 LE

shipped by (sigma)

Point: 30

Brand : Seasonic

Model : PX-750

Seller : sigma

Viewed : 3266 items

80PLUS® Platinum

Cybenetics Efficiency Level ETA A

Cybenetics Noise Level LAMBDA A-

Form Factor Intel ATX 12 V

Dimensions 170 mm (L) x 150 mm (W) x 86 mm (H)

Fan Information Fan Size 135 mm

Fan Control Premium Hybrid Fan Control

Fan Bearing Fluid Dynamic Bearing

Life Expectancy 50,000 hours at 40 °C, 15 % - 65 % RH

Cable Information Modularity Fully Modular

Cable type Flat black cables

Seller note

Fast delivery
2-5 Days
Online Support
Chat and Phone
order protection
secured information
promotion gift
special offers!
money back
return over 14 days

80PLUS® Platinum

Cybenetics Efficiency Level ETA A

Cybenetics Noise Level LAMBDA A-

Form Factor Intel ATX 12 V

Dimensions 170 mm (L) x 150 mm (W) x 86 mm (H)

Fan Information Fan Size 135 mm

Fan Control Premium Hybrid Fan Control

Fan Bearing Fluid Dynamic Bearing

Life Expectancy 50,000 hours at 40 °C, 15 % - 65 % RH

Cable Information Modularity Fully Modular

Cable type Flat black cables

Electrical Features Operating Temperature 0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C)

MTBF @ 25 °C, excl. fan 150,000 hours

AC Input Full Range

Protection OPP, OVP, UVP, OCP, OTP, SCP

Safety and Environmental Safety and EMC cTUVus, TUV, CB, CCC, BSMI, EAC, CE

Environmental Compliance Energy Star, RoHS, WEEE, ErP Lot 6, REACH

Warranty 12 Years

Power Output

AC Input Voltage: 100 V - 240 V

Current: 13 - 6.5 A

Frequency: 50 Hz - 60 Hz

DC Output Rail +3.3 V +5 V +12 V -12 V +5 VSB

Maximum Power 25 A 25 A 83 A 0.3 A 3 A

125 W 996 W 3.6 W 15 W

Total continuous power 1000 W

Cable type Connector(s) per cable Total Length (mm) Number(s) of cable(s) included

MB-610 MB (24/20 pins) 1 610 1

CPU-650 CPU (8/4 pins) 1 650 2

PCIe-750-2x PCIe (8/6 pins) 2 750 0

PCIe-750-1x PCIe (8/6 pins) 1 750 6

SATA-810-4x-90 SATA 4 810 2

SATA-800-4x-180 SATA 4 860 1

SATA-760-4x-90 SATA 4 760 0

SATA-700-2x-90 SATA 2 700 0

SATA-570-2x-180 SATA 2 570 0

SATA-470-2x-180 SATA 2 470 0

SATA-450-2x-180 SATA 2 450 1

Molex-690-3x Molex 3 690 1

Molex-470-2x Molex 2 470 1

Molex-to-SATA-3-3-300 Molex to SATA 3.3 Adapter 2 300 1

Molex-to-FDD-101 Molex to FDD Adapter 1 101 0

Category	Desktop
Subcategory	Power Supply
Brand	Seasonic
Model	PX-750
POWER OF SUPPLY POWER	750W
EFFICIENCY RATING	80+ Platinum
MODULAR	Full
