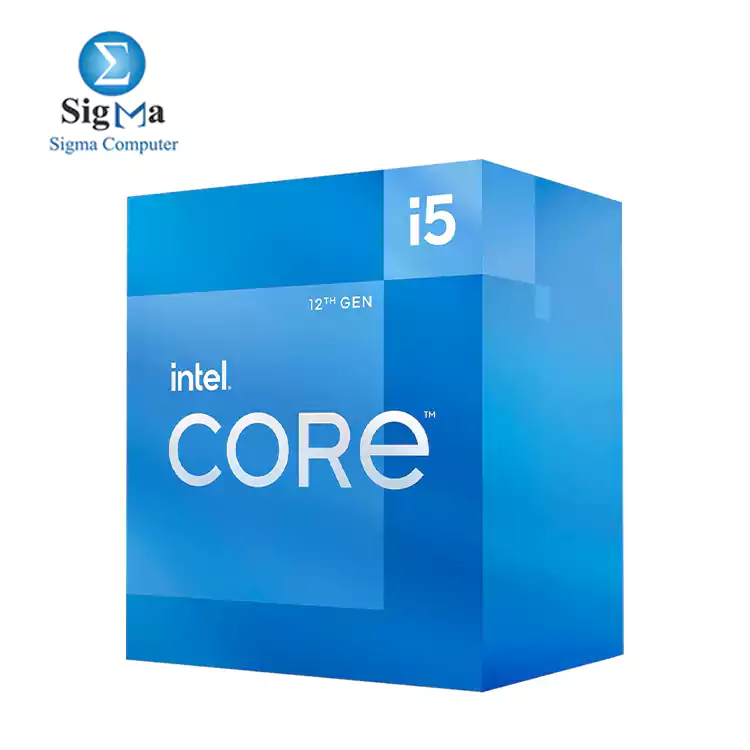

CPU-Intel-Core i5-12400 6 Core/12 Threads 2.5 GHz (4.4 GHz Turbo) Socket LGA 1700 Processor | 10200 EGP

CPU-Intel-Core i5-12400 6 Core 12 Threads 2.5 GHz 4.4 GHz Turbo Socket LGA 1700 Processor

10200 LE
shipped by (sigma)
Point: 35

Brand : Intel brand

Model : 12400

Seller : sigma

Viewed : 30435 items

CPU Specifications
Total Cores
6
# of Performance-cores
6
# of Efficient-cores
0
Total Threads
12
Max Turbo Frequency
4.40 GHz
Performance-core Max Turbo Frequency
4.40 GHz
Performance-core Base Frequency
2.50 GHz
Cache
18 MB Intel® Smart Cache
Total L2 Cache
7.5 MB
Processor Base Power
65 W
Maximum Turbo Power
117 W

CPU Specifications
Total Cores
6
# of Performance-cores
6
# of Efficient-cores
0
Total Threads
12
Max Turbo Frequency
4.40 GHz
Performance-core Max Turbo Frequency
4.40 GHz
Performance-core Base Frequency
2.50 GHz
Cache
18 MB Intel® Smart Cache
Total L2 Cache
7.5 MB
Processor Base Power
65 W
Maximum Turbo Power
117 W

Supplemental Information
Embedded Options Available
Yes
Datasheet
View now
Memory Specifications
Max Memory Size (dependent on memory type)
128 GB
Memory Types
Up to DDR5 4800 MT/s
Up to DDR4 3200 MT/s
Max # of Memory Channels
2
Max Memory Bandwidth
76.8 GB/s

Processor Graphics
Processor Graphics ‡
Intel® UHD Graphics 730
Graphics Base Frequency
300 MHz
Graphics Max Dynamic Frequency
1.45 GHz
Graphics Output
eDP 1.4b, DP 1.4a, HDMI 2.1
Execution Units
24
Max Resolution (HDMI)‡
4096 x 2160 @ 60Hz
Max Resolution (DP)‡
7680 x 4320 @ 60Hz
Max Resolution (eDP - Integrated Flat Panel)‡
5120 x 3200 @ 120Hz
DirectX* Support
12
OpenGL* Support
4.5
Multi-Format Codec Engines
1
Intel® Quick Sync Video
Yes
Intel® Clear Video HD Technology
Yes
# of Displays Supported ‡
4
Device ID
0x4692 / 0x4682
OpenCL* Support
2.1

Expansion Options
Direct Media Interface (DMI) Revision
4.0
Max # of DMI Lanes
8
Scalability
1S Only
PCI Express Revision
5.0 and 4.0
PCI Express Configurations ‡
Up to 1x16+4, 2x8+4
Max # of PCI Express Lanes
20

Package Specifications
Sockets Supported
FCLGA1700
Max CPU Configuration
1
Thermal Solution Specification
PCG 2020C
TJUNCTION
100°C
Package Size
45.0 mm x 37.5 mm
Advanced Technologies
Intel® Gaussian & Neural Accelerator
3.0
Intel® Thread Director
No
Intel® Deep Learning Boost (Intel® DL Boost)
Yes
Intel® Optane™ Memory Supported ‡
Yes
Intel® Speed Shift Technology
Yes
Intel® Turbo Boost Max Technology 3.0 ‡
No
Intel® Turbo Boost Technology ‡
2.0
Intel® Hyper-Threading Technology ‡
Yes
Intel® Virtualization Technology (VT-x) ‡
Yes
Intel® Virtualization Technology for Directed I/O (VT-d) ‡
Yes
Intel® VT-x with Extended Page Tables (EPT) ‡
Yes
Intel® 64 ‡
Yes
Instruction Set
64-bit
Instruction Set Extensions
Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
Idle States
Yes
Enhanced Intel SpeedStep® Technology
Yes
Thermal Monitoring Technologies
Yes
Intel® Volume Management Device (VMD)
Yes

Security & Reliability
Intel® AES New Instructions
Yes
Secure Key
Yes
Intel® OS Guard
Yes
Execute Disable Bit ‡
Yes
Intel® Boot Guard
Yes
Mode-based Execute Control (MBEC)
Yes
Intel® Control-Flow Enforcement Technology
Yes

CategoryDesktop
SubcategoryProcessors
BrandIntel
Model12400
SOCKETLGA 1700
SERIESIntel Core i5
Generation12th Gen
CPU Cores6 Cores
Processor Suffixes--
