GIGABYTE B650 UD AC rev. 1.0 AM5 LGA 1718 AMD B650 ATX Motherboard DDR5 PCIe 4.0 M.2 PCIe 4.0 USB 3.2 Gen2x2 Type-C GbE LAN
8999 LE
shipped by (sigma)
Point: 20
Brand : Gigabyte
Model : B650 UD AC
Seller : sigma
Viewed : 1273 items
he GIGABYTE B650 UD AC (rev. 1.0) is an ATX motherboard designed for AMD processors with the AM5 socket. It supports DDR5 memory, features PCIe 4.0 for M.2 and other expansion slots, and offers a range of connectivity options, including USB 3.2 Gen2x2 Type-C and GbE LAN.
-
Socket: AM5 (LGA 1718)
-
Chipset: AMD B650
-
Form Factor: ATX
-
Memory:
- Supports DDR5 RAM
- Dual Channel Memory Architecture
- 4 x DIMM slots
- Maximum Memory: 128GB
- Supports ECC & Non-ECC Un-buffered DIMM
-
Expansion Slots:
- 1 x PCIe 4.0 x16 (x16 mode)
- 2 x PCIe 4.0 x4 (x4 mode)
- 1 x PCIe 3.0 x1
-
Storage:
- 3 x M.2 slots (PCIe 4.0 x4)
- 4 x SATA 6Gb/s ports
-
USB Ports:

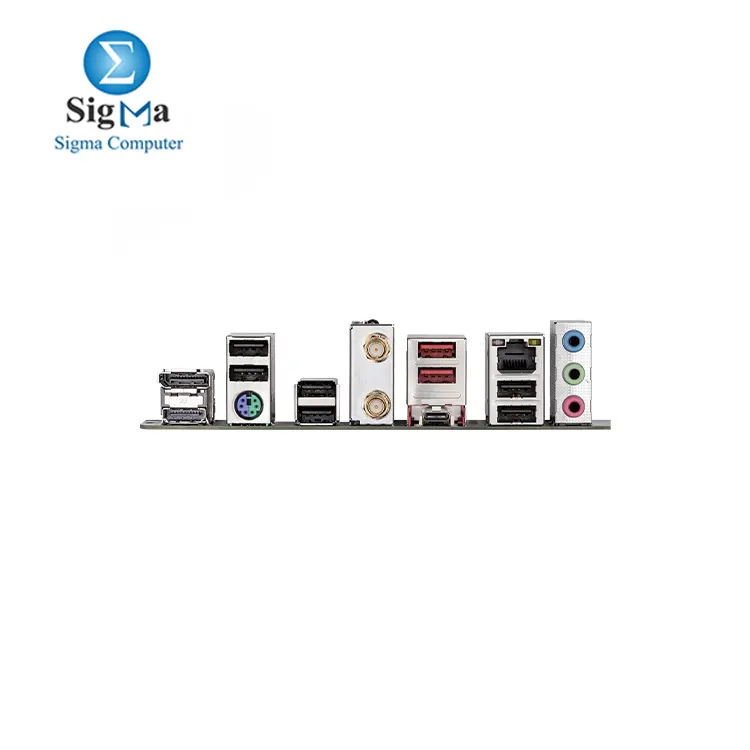

- Rear Panel:
- 1 x USB 3.2 Gen2x2 Type-C
- 2 x USB 3.2 Gen2 Type-A
- 4 x USB 3.2 Gen1 Type-A
- 2 x USB 2.0/1.1
- Internal:
- 1 x USB 3.2 Gen1 header (supports 2 USB 3.2 Gen1 ports)
- 2 x USB 2.0/1.1 headers (support 4 USB 2.0/1.1 ports)
- Rear Panel:
-
LAN:
- 1 x Gigabit Ethernet (Realtek GbE LAN chip)
-
Wi-Fi and Bluetooth:
- Intel Wi-Fi 6 AX200 (2x2)
- Bluetooth 5.2
-
Audio:
- Realtek Audio Codec
- Supports 7.1-Channel High Definition Audio
-
Power Connectors:
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x 4-pin ATX 12V power connector
-
Other Features:
- RGB Fusion 2.0 with addressable LED & RGB LED strips support
- Q-Flash Plus Button for BIOS update without CPU, memory, and graphics card
-
