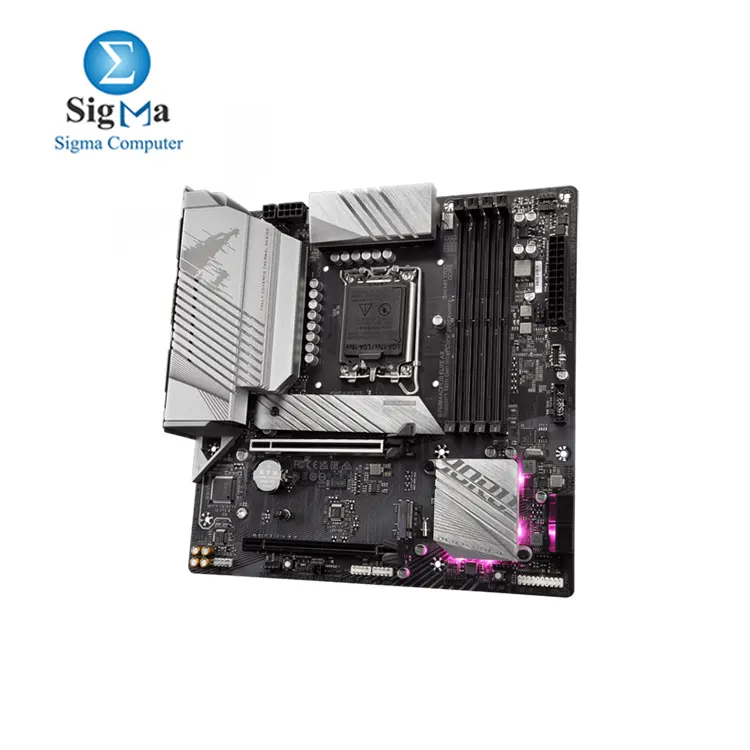

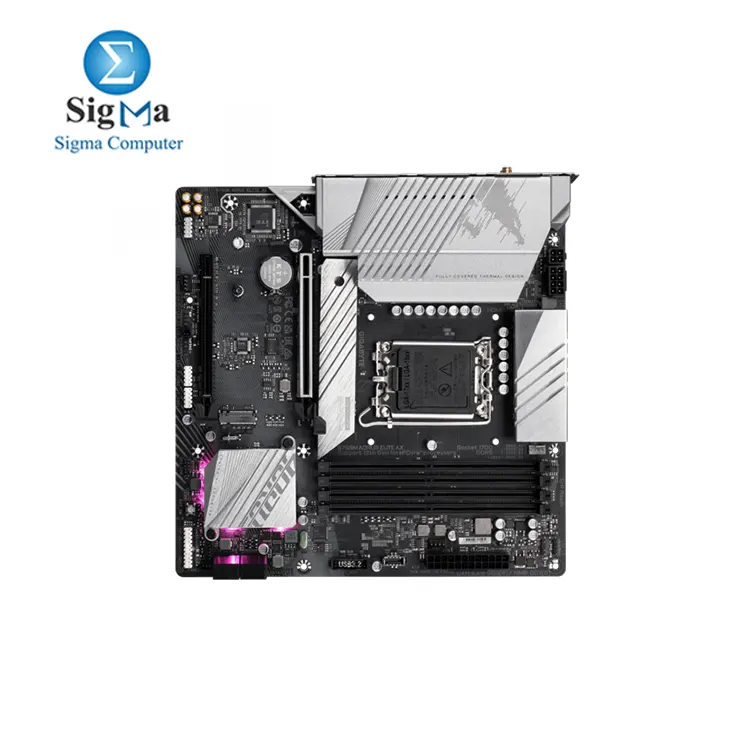

The B760M AORUS ELITE AX (rev. 1.x) is a feature-rich micro-ATX motherboard from GIGABYTE's AORUS lineup, designed to deliver robust performance and extensive connectivity for gaming and high-performance computing builds. Here's a detailed overview of its key features and what they offer:
**1. CPU Support
- Compatible Processors: Supports Intel® Core™ 14th, 13th, and 12th generation processors.
- Socket: Likely LGA 1700 (common for these Intel generations), ensuring compatibility with a wide range of Intel CPUs.
**2. Power Delivery
- Twin 12+1+1 Phases Digital VRM Solution*:
- Phases: A robust power delivery system with 12 power phases for the CPU, plus additional phases for other components like memory and I/O.
- Benefits: Ensures stable power delivery, which is crucial for overclocking and maintaining system stability under load.
**3. Memory Support
- Dual Channel DDR5:
- Slots: 4 SMD DIMM slots.
- XMP 3.0 Support: Allows for easy overclocking of memory modules to achieve higher performance.
- Benefits: Supports the latest DDR5 memory, offering higher speeds and better efficiency compared to DDR4, enhancing overall system performance.
**4. Storage Options
- Next Generation Storage:
- M.2 Connectors: 2 PCIe 4.0 x4 M.2 slots.
- EZ-Latch Plus:
- Features: Quick release and screwless design for easier installation and removal of M.2 SSDs.
- Advanced Thermal Design & M.2 Thermal Guard:
- Cooling: Ensures VRM power stability and maintains M.2 SSD performance by preventing thermal throttling.
**5. Networking
- Fast Networks:
- 2.5GbE LAN: High-speed wired internet connectivity for reduced latency and faster data transfer.
- Wi-Fi 6E 802.11ax: Latest Wi-Fi standard offering improved speed, capacity, and lower latency for wireless connections.
**6. Connectivity
- Extended Connectivity:
- Front USB-C® 10Gb/s: High-speed USB Type-C port for front panel connections, ideal for modern peripherals.
- Rear USB-C® 20Gb/s: Even faster USB Type-C on the rear I/O for quick data transfers and future-proofing.
- Display Outputs:
- DisplayPort (DP) and HDMI: Support for multiple monitors, useful for gaming, content creation, and productivity setups.
**7. Cooling and Thermal Management
- Advanced Thermal Design:
- Multiple Temperature Sensors: Monitors various components to manage cooling effectively.
- Hybrid Fan Headers with FAN STOP: Allows fans to be completely turned off under certain temperature conditions, reducing noise when full cooling is not needed.
- Smart Fan 6: Comprehensive fan control for optimal cooling performance tailored to system needs.
**8. BIOS and Firmware
- Q-Flash Plus:
- Functionality: Allows BIOS updates without the need to install the CPU, memory, or graphics card.
- Convenience: Useful for recovering from failed BIOS updates or ensuring compatibility with newer CPUs without disassembling the system.
**9. Form Factor
- Micro-ATX (mATX):
- Size: Smaller than standard ATX, making it suitable for compact builds while still offering ample features and expansion options.
Use Cases and Ideal Builds
The B760M AORUS ELITE AX is well-suited for:
- Gaming PCs: With robust VRM for CPU stability, high-speed DDR5 memory support, and advanced networking options like 2.5GbE LAN and Wi-Fi 6E, it's ideal for high-performance gaming rigs.
- Content Creation: Multiple high-speed storage options and extensive connectivity (USB-C, DP, HDMI) make it suitable for creative professionals who need fast data transfer and multiple display setups.
- Enthusiast Builds: Features like Q-Flash Plus and extensive cooling options cater to enthusiasts who may want to tweak and optimize their systems.
- Future-Proofing: Support for the latest Intel CPUs, DDR5 memory, PCIe 4.0 storage, and advanced networking ensure that the motherboard remains relevant and capable as new technologies emerge.
Pros
- Strong Power Delivery: Suitable for high-performance CPUs and potential overclocking.
- Latest Memory and Storage Support: DDR5 and PCIe 4.0 ensure fast and efficient performance.
- Advanced Networking: 2.5GbE LAN and Wi-Fi 6E provide fast and reliable internet connectivity.
- Comprehensive Cooling Solutions: Ensures system stability and longevity.
- User-Friendly Features: EZ-Latch Plus and Q-Flash Plus enhance ease of use and maintenance.
Cons
- Micro-ATX Form Factor: While versatile, it has fewer expansion slots compared to full ATX motherboards, which might limit future upgrades in some cases.
- Price: AORUS motherboards typically come at a premium price, so it might be more expensive than non-AORUS alternatives with similar specs.
Conclusion
The B760M AORUS ELITE AX (rev. 1.x) is a high-performance motherboard that offers a balanced mix of cutting-edge features, robust power delivery, and extensive connectivity options. It is an excellent choice for gamers, content creators, and PC enthusiasts who seek reliability, performance, and future-proofing in a compact micro-ATX form factor. If you’re building a system with a focus on high-speed memory, fast storage, and advanced networking, this motherboard should serve you well.
| Category | Desktop |
| Subcategory | Motherboard |
| Brand | Gigabyte |
| Model | B760M |
