Gigabyte B650 AORUS ELITE AX ICE | 12600 EGP

Gigabyte B650 AORUS ELITE AX ICE

12600 LE
Availability: In Stock
shipped by (sigma)
Point: 50

Brand : Gigabyte brand

Model : B650

Seller : sigma

Viewed : 992 items

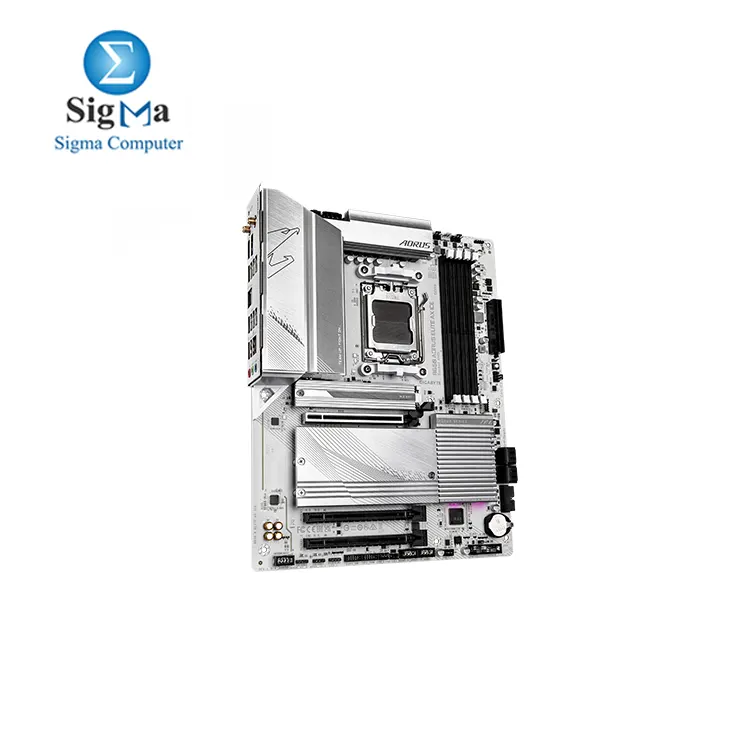

The B650 AORUS ELITE AX ICE is a high-performance motherboard with some impressive features:

  • Socket AM5: Compatible with AMD Ryzen™ 7000, 8000, and 9000 Series processors.
  • VRM Solution: Twin 12+2+2 Phases Digital VRM for robust power delivery.
  • Memory: Supports Dual Channel DDR5 with 4 DIMMs, compatible with AMD EXPO™ and Intel® XMP.
  • Storage: Offers superfast storage with 1 PCIe 5.0 x4 and 2 PCIe 4.0 x4 M.2 connectors.
  • Thermal Design: Advanced thermal solutions and M.2 Thermal Guard for stable VRM power and SSD performance.
  • EZ-Latch: Features quick-release and screwless design for PCIe x16 slot and M.2 connectors.
  • Networking: Equipped with 2.5GbE LAN and Wi-Fi 6E for fast connectivity.
  • Connectivity: Includes HDMI, DP, Front USB-C® 20Gb/s, and Rear USB-C® 10Gb/s.
  • Smart Fan 6: Comes with multiple temperature sensors and hybrid fan headers with FAN STOP.
  • Q-Flash Plus: Allows BIOS updates without needing to install the CPU, memory, or graphics card.

It looks like a great choice for high-end builds and offers a lot of flexibility and performance.





CPU Support

  • Socket AM5 for AMD Ryzen™ 7000, 8000, and 9000 Series processors.
  • CPU Support List available for detailed compatibility.

Chipset

  • AMD B650

Memory

  • Type: DDR5
  • Speeds: 8000(OC) to 4800 MT/s
  • Capacity: Up to 256 GB (64 GB per DIMM)
  • Configuration: Dual Channel
  • Modules: Non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16
  • Profiles: Supports AMD EXPO™ and Intel® XMP

Onboard Graphics

  • Integrated Graphics: AMD Radeon™ Graphics
  • DisplayPort: 3840x2160@144 Hz, DisplayPort 1.4, HDR support
  • HDMI: 4096x2160@60 Hz, HDMI 2.1, HDCP 2.3

Audio

  • Codec: Realtek® Audio CODEC
  • Channels: 2/4/5.1/7.1-channel

Networking

  • LAN: Realtek® 2.5GbE (2.5 Gbps/1 Gbps/100 Mbps)
  • Wireless: Realtek® Wi-Fi 6E RTL8852CE (2.4/5/6 GHz), Bluetooth 5.3

Expansion Slots

  • PCIe x16 Slot:
    • AMD Ryzen™ 7000 Series: PCIe 4.0 x16
    • AMD Ryzen™ 8000 Series-Phoenix 1: PCIe 4.0 x8
    • AMD Ryzen™ 8000 Series-Phoenix 2: PCIe 4.0 x4
  • PCIe x16 Slots (Chipset):
    • 2 x PCIe 3.0 x1

Storage Interface

  • M.2 Connectors:
    • M2A_CPU: PCIe 5.0 x4/x2 (7000 Series), PCIe 4.0 x4/x2 (8000 Series-Phoenix 1), PCIe 4.0 x4/x2 (8000 Series-Phoenix 2)
    • M2B_CPU: PCIe 4.0 x4/x2 (7000 Series), PCIe 4.0 x4/x2 (8000 Series-Phoenix 1), PCIe 4.0 x2 (8000 Series-Phoenix 2)
    • M2C_SB: PCIe 4.0 x4/x2
  • SATA: 4 x SATA 6Gb/s
  • RAID Support: RAID 0, RAID 1, RAID 10 for NVMe and SATA storage

USB Ports

  • Back Panel:
    • 1 x USB Type-C® (USB 3.2 Gen 2)
    • 2 x USB 3.2 Gen 2 Type-A (red)
    • 4 x USB 3.2 Gen 1
    • 4 x USB 2.0/1.1
    • 1 x RJ-45
    • 3 x Audio Jacks
  • Internal:
    • 1 x USB Type-C® (USB 3.2 Gen 2x2)
    • 3 x USB 3.2 Gen 1
    • 4 x USB 2.0/1.1

Internal I/O Connectors

  • Power Connectors: 24-pin ATX, 8-pin ATX 12V, 4-pin ATX 12V
  • Fan Connectors: CPU fan, CPU fan/water cooling pump, 3 x system fan, 1 x system fan/water cooling pump
  • RGB Connectors: 3 x addressable RGB Gen2, 1 x RGB LED strip
  • M.2 Slots: 3
  • SATA Connectors: 4
  • Front Panel Headers: 1 x front panel, 1 x front panel audio
  • USB Headers: 1 x USB Type-C® (USB 3.2 Gen 2x2), 1 x USB 3.2 Gen 1, 2 x USB 2.0/1.1
  • TPM Header: 1

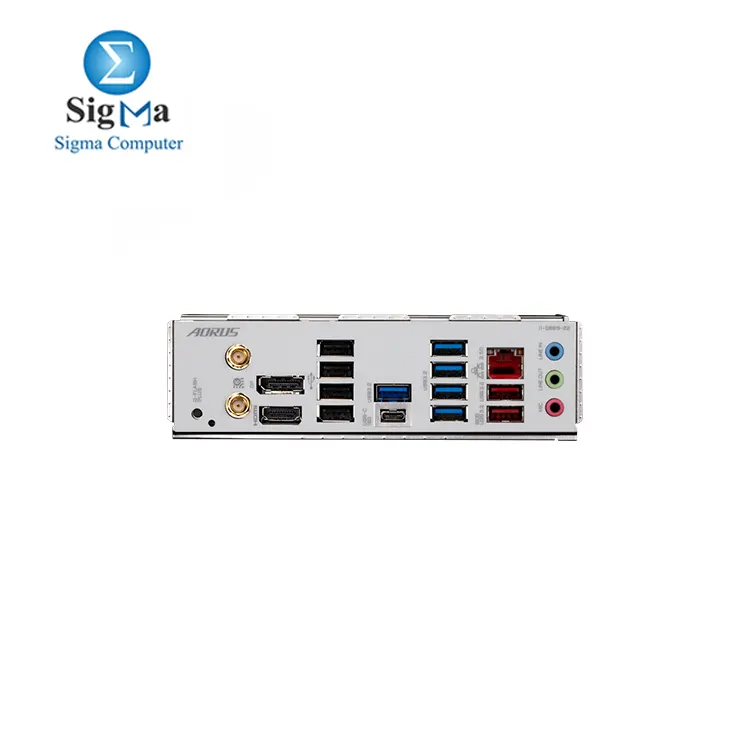

Back Panel Connectors

  • Q-Flash Plus Button: 1
  • Antenna Connectors: 2 x SMA (2T2R)
  • Display Outputs: 1 x DisplayPort, 1 x HDMI
  • USB Ports: 1 x USB Type-C® (USB 3.2 Gen 2), 2 x USB 3.2 Gen 2 Type-A (red), 5 x USB 3.2 Gen 1, 4 x USB 2.0/1.1
  • LAN Port: 1 x RJ-45
  • Audio Jacks: 3

I/O Controller

  • Chip: iTE® I/O Controller

H/W Monitoring

  • Voltage, temperature, fan speed, water cooling flow rate detection
  • Fan speed control and fail warning

BIOS

  • Chip: 256 Mbit flash
  • Software: Licensed AMI UEFI BIOS

Unique Features

  • GIGABYTE Control Center (GCC) support
  • Q-Flash and Q-Flash Plus support

Bundled Software

  • Norton® Internet Security (OEM version)
  • LAN bandwidth management software

Operating System Support

  • Windows 11 64-bit
  • Windows 10 64-bit

Form Factor

  • ATX: 30.5 cm x 24.4 cm

This motherboard offers extensive support for high-speed memory and storage, multiple expansion options, and robust connectivity features, making it a versatile choice for high-performance builds.
