Gigabyte B650 EAGLE AX | 9700 EGP

Gigabyte B650 EAGLE AX

9700 LE
shipped by (sigma)
Point: 30

Brand : Gigabyte brand

Model : B650

Seller : sigma

Viewed : 2002 items

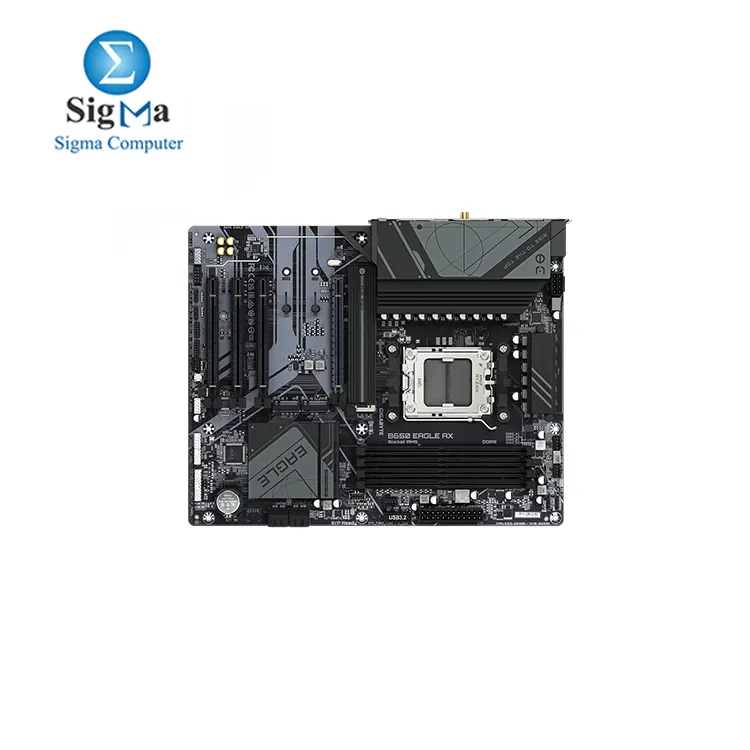

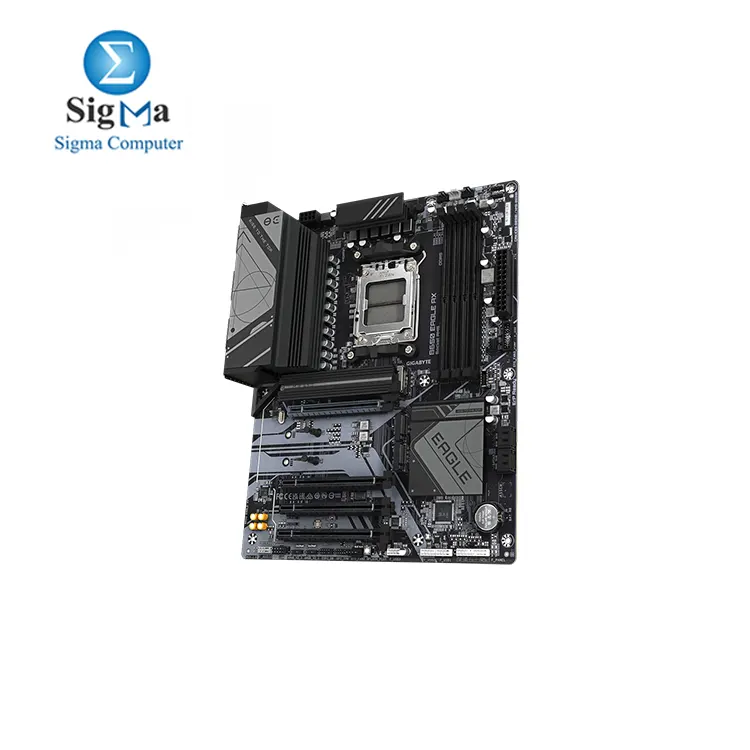

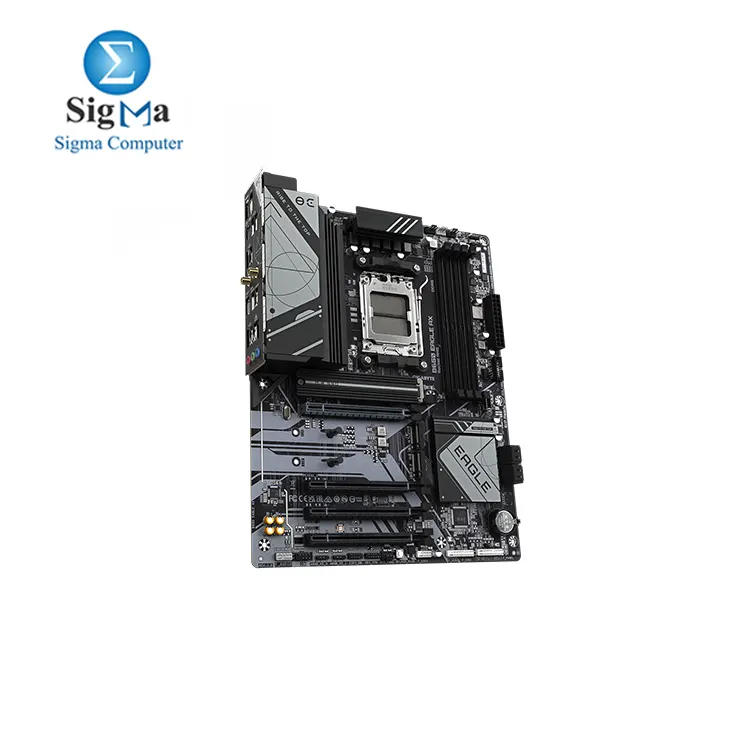

B650 EAGLE AX motherboard. It’s a robust board with support for AMD Ryzen™ 7000/8000/9000 series processors and plenty of high-speed connectivity options. Key features include:

  • 12+2+2 Phases Digital VRM Solution: Ensures stable power delivery.
  • Dual Channel DDR5: Supports high-performance memory with AMD EXPO™ and Intel® XMP.
  • SuperSpeed Storage: Offers a PCIe 5.0 slot and two PCIe 4.0 M.2 slots for fast storage options.
  • Advanced Thermal Design & M.2 Thermal Guard: Maintains stability and performance.
  • EZ-Latch PCIe x16 Slot: Facilitates easy installation and removal of components.
  • Wi-Fi 6E & GbE LAN: Provides fast network connectivity.
  • Extended Connectivity: Includes DisplayPort, HDMI, and high-speed USB ports.
  • Smart Fan 6: Advanced cooling with multiple temperature sensors and hybrid fan headers.
  • Q-Flash Plus: Allows BIOS updates without needing to install CPU, memory, or graphics card.




CPU Compatibility

  • Socket AM5
  • Supports AMD Ryzen™ 7000 / 8000 / 9000 Series Processors

Chipset

  • AMD B650

Memory

  • Supported Types: DDR5
  • Memory Speeds: 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s
  • Capacity: Up to 256 GB (64 GB per DIMM)
  • Architecture: Dual channel
  • Compatibility: Non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16
  • Overclocking Support: AMD EXPO™ and Intel® XMP

Onboard Graphics

  • Integrated Graphics: AMD Radeon™ Graphics
  • Display Outputs:
    • 1 x DisplayPort 1.4 (3840x2160@144 Hz)
    • 1 x HDMI 2.1 (4096x2160@60 Hz)

Audio

  • Codec: Realtek® Audio CODEC
  • Channels: 2/4/5.1/7.1-channel

Networking

  • LAN: Realtek® GbE LAN (1 Gbps/100 Mbps/10 Mbps)
  • Wireless: Realtek® Wi-Fi 6E RTL8852CE
    • Wi-Fi: a/b/g/n/ac/ax (2.4/5/6 GHz)
    • Bluetooth: 5.3

Expansion Slots

  • PCIe Slots:
    • 1 x PCIe x16 (CPU): Supports PCIe 4.0 x16 (Ryzen™ 7000) or PCIe 4.0 x8/x4 (Ryzen™ 8000 Phoenix 1/2)
    • 2 x PCIe x16 (CPU) running at x1 (PCIEX1_1/PCIEX1_2, may be unavailable with Ryzen™ 8000 Phoenix 2)
    • 1 x PCIe x16 (Chipset) running at x1 (PCIEX1_3)

Storage

  • M.2 Slots:
    • 1 x M.2 PCIe 5.0 x4/x2 (M2A_CPU, Ryzen™ 7000) / PCIe 4.0 x4/x2 (Ryzen™ 8000 Phoenix 1/2)
    • 1 x M.2 PCIe 4.0 x2 (M2P_CPU, Ryzen™ 7000) / PCIe 4.0 x2 (Ryzen™ 8000 Phoenix 1/2)
    • 1 x M.2 PCIe 4.0 x4/x2 (M2C_SB)
  • SATA Ports: 4 x SATA 6Gb/s
  • RAID Support: RAID 0, RAID 1, RAID 10

USB Ports

  • Back Panel:
    • 2 x USB 3.2 Gen 2 Type-A (red)
    • 1 x USB Type-C® (USB 3.2 Gen 1)
    • 4 x USB 2.0/1.1
    • 1 x RJ-45
    • 3 x Audio jacks
    • 2 x SMA antenna connectors (2T2R)
    • 1 x PS/2 keyboard/mouse
  • Internal:
    • 2 x USB 3.2 Gen 1 ports
    • 1 x USB Type-C® (USB 3.2 Gen 1)
    • 4 x USB 2.0/1.1

Internal I/O Connectors

  • Power:
    • 1 x 24-pin ATX main power
    • 1 x 8-pin ATX 12V power
  • Fans:
    • 1 x CPU fan
    • 1 x CPU fan/water cooling pump
    • 2 x System fans
    • 1 x System fan/water cooling pump
  • RGB:
    • 3 x Addressable RGB Gen2
    • 1 x RGB LED strip header
  • Other:
    • 3 x M.2 connectors
    • 4 x SATA 6Gb/s
    • 1 x Front panel header
    • 1 x Front panel audio header
    • 1 x USB Type-C® header
    • 1 x USB 3.2 Gen 1 header
    • 3 x USB 2.0/1.1 headers
    • 1 x Trusted Platform Module header
    • 1 x Q-Flash Plus button
    • 1 x Serial port header
    • 1 x Clear CMOS jumper

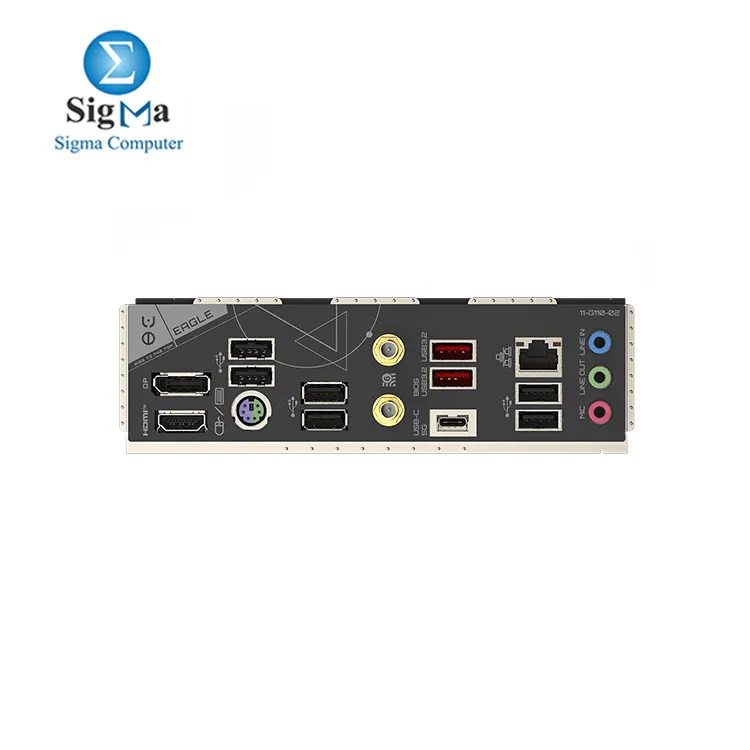

Back Panel Connectors

  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x PS/2 keyboard/mouse
  • 2 x USB 3.2 Gen 2 Type-A (red)
  • 1 x USB Type-C® (USB 3.2 Gen 1)
  • 4 x USB 2.0/1.1
  • 1 x RJ-45
  • 3 x Audio jacks
  • 2 x SMA antenna connectors

I/O Controller

  • iTE® I/O Controller Chip
  • Monitoring:
    • Voltage detection
    • Temperature detection
    • Fan speed detection
    • Water cooling flow rate detection
    • Fan fail warning
    • Fan speed control

BIOS

  • 256 Mbit flash
  • AMI UEFI BIOS
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

  • GIGABYTE Control Center (GCC) support
  • Q-Flash and Q-Flash Plus

Bundled Software

  • Norton® Internet Security (OEM version)
  • LAN bandwidth management software

Operating System Support

  • Windows 11 64-bit
  • Windows 10 64-bit

Form Factor

  • ATX; 30.5cm x 24.4cm
