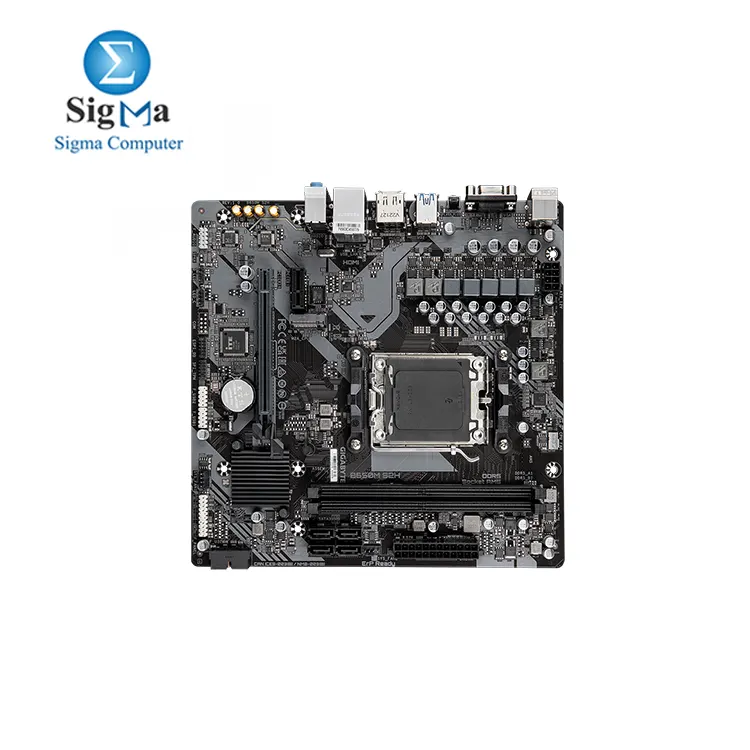

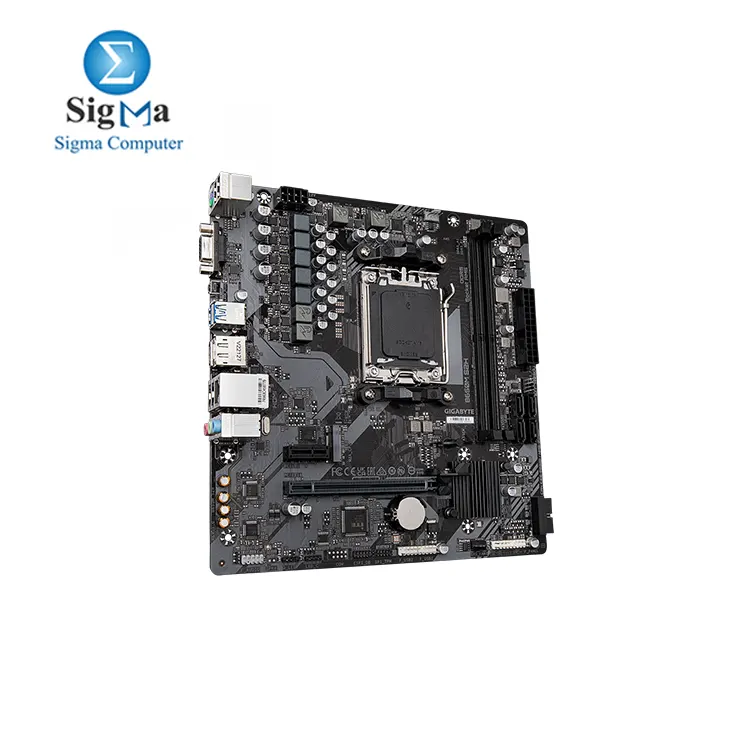

Gigabyte B650M S2H

reviews | Write a review

5999 LE

Availability: In Stock

shipped by (sigma)

Point: 15

Brand : Gigabyte

Model : B650M S2H

Seller : sigma

Viewed : 740 items

Processor Support:

AMD Socket AM5

Compatible with AMD Ryzen™ 7000, Ryzen™ 8000, and Ryzen™ 9000 Series Processors

Power Delivery:

5+2+2 Phases Digital VRM Solution

Memory:

Dual Channel DDR5

2*SMD DIMMs

Supports AMD EXPO™ and Intel® XMP Memory Modules

Storage:

PCIe 4.0 x4 M.2 Connector for SuperSpeed Storage

Expansion Slots:

EZ-Latch PCIe x16 Slot with Quick Release Design

Networking:

Gigabit Ethernet (GbE LAN)

Connectivity:

DisplayPort (DP)

HDMI

D-Sub (VGA)

Cooling:

Smart Fan 6 with Multiple Temperature Sensors

Hybrid Fan Headers with FAN STOP

BIOS Update:

Q-Flash Plus: Update BIOS Without Installing CPU, Memory, and Graphics Card

Seller note

010062151000151

Fast delivery
2-5 Days
Online Support
Chat and Phone
order protection
secured information
promotion gift
special offers!
money back
return over 14 days

1. CPU Support:

AMD Socket AM5
Compatible with AMD Ryzen™ 7000, Ryzen™ 8000, and Ryzen™ 9000 Series Processors
Check GIGABYTE's website for the latest CPU support list

2. Chipset:

AMD B650

3. Memory:

Supports DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s
2 x DDR5 DIMM sockets, up to 128 GB (64 GB per DIMM)
Dual channel memory architecture
Non-ECC Un-buffered DIMM support
AMD EXPO™ and Intel® XMP memory module support
Refer to GIGABYTE’s Memory Support List for compatibility

4. Onboard Graphics:

1 x D-Sub port (1920x1200@60 Hz)
1 x DisplayPort (3840x2160@144 Hz, DisplayPort 1.4)
1 x HDMI port (4096x2160@60 Hz, HDMI 2.1, HDCP 2.3)
Support for up to 3 displays simultaneously

5. Audio:

Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel

6. LAN:

Realtek® GbE LAN (1 Gbps/100 Mbps/10 Mbps)

7. Expansion Slots:

1 x PCI Express x16 slot (PCIEX16)
- AMD Ryzen™ 7000: PCIe 4.0 x16
- Ryzen™ 8000 Series-Phoenix 1: PCIe 4.0 x8
- Ryzen™ 8000 Series-Phoenix 2: PCIe 4.0 x4
1 x PCI Express x1 slot (PCIEX1), PCIe 3.0

8. Storage Interface:

1 x M.2 connector (M2A_CPU) for PCIe 4.0 x4/x2 SSDs
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 10 support for NVMe SSDs and SATA storage

9. USB Ports:

CPU:
- 2 x USB 3.2 Gen 1 (rear panel)
- 1 x USB 2.0/1.1 (rear panel)
Chipset:
- 2 x USB 3.2 Gen 1 (internal)
- 7 x USB 2.0/1.1 (3 rear, 4 internal)

10. Internal I/O Connectors:

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header
1 x Clear CMOS jumper

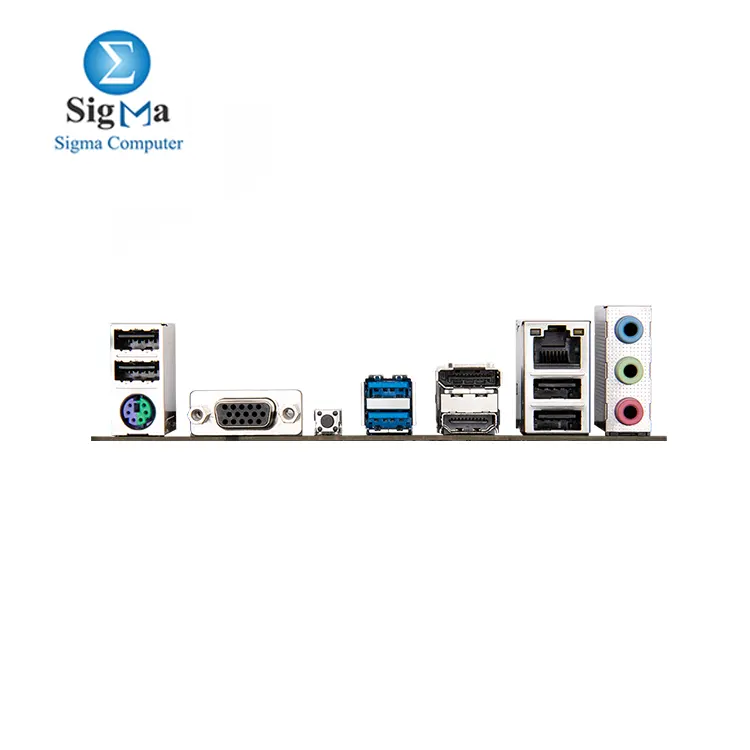

11. Back Panel Connectors:

4 x USB 2.0/1.1
1 x PS/2 keyboard/mouse
1 x D-Sub
1 x Q-Flash Plus button
2 x USB 3.2 Gen 1
1 x DisplayPort
1 x HDMI
1 x RJ-45 (LAN)
3 x audio jacks

12. I/O Controller:

iTE® I/O Controller Chip

13. H/W Monitoring:

Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control (depends on installed fan)

14. BIOS:

1 x 256 Mbit flash
AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

15. Unique Features:

GIGABYTE Control Center (GCC) support
Q-Flash and Q-Flash Plus support

16. Bundled Software:

Norton® Internet Security (OEM version)
LAN bandwidth management software

17. Operating System Support:

Windows 11 64-bit
Windows 10 64-bit

18. Form Factor:

Micro ATX (23.0cm x 22.5cm)

Category	Desktop
Subcategory	Motherboard
Brand	Gigabyte
Model	B650M S2H
