Gigabyte B760M AORUS ELITE AX DDR4

Gigabyte B760M AORUS ELITE AX DDR4

reviews | Write a review

8900 LE

Availability: In Stock

shipped by (sigma)

Point: 20

Brand : Gigabyte

Model : B760M

Seller : sigma

Viewed : 1741 items

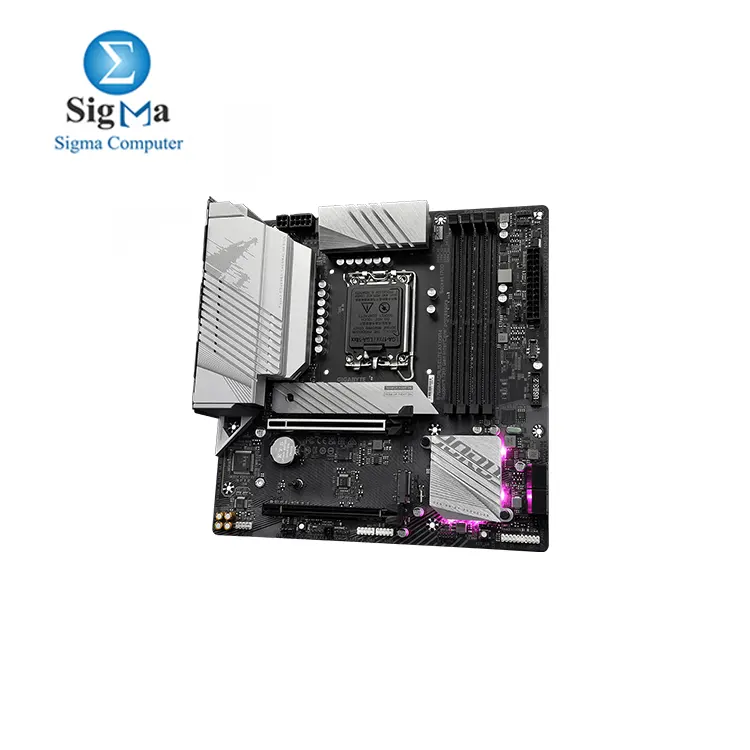

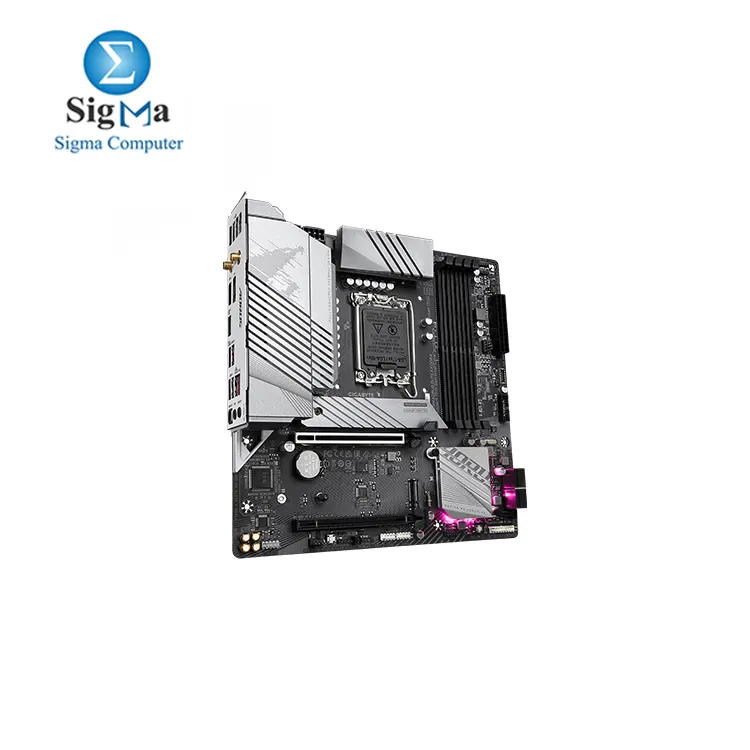

The B760M AORUS ELITE AX DDR4 motherboard is a high-performance component designed to support Intel® Core™ 14th, 13th, and 12th generation processors.

Processor Support: Compatible with Intel® Core™ 14th, 13th, and 12th processors.

Power Delivery: Features a robust Twin 12+1+1 Phases Digital VRM solution, ensuring stable power delivery to the CPU for optimal performance.

Memory Support: Supports dual-channel DDR4 memory with 4 DIMM slots and XMP memory module compatibility for enhanced memory performance.

Storage Options: Includes 2 PCIe 4.0 x4 M.2 connectors for next-generation storage solutions, offering faster data transfer rates.

Thermal Management: Comes with an advanced thermal design and M.2 Thermal Guard to ensure the stability of VRM power and M.2 SSD performance.

EZ-Latch Plus: M.2 connectors feature a quick-release and screwless design for easy installation and upgrades.

Networking: Equipped with 2.5GbE LAN and Wi-Fi 6E 802.11ax for fast and reliable networking.

Connectivity: Offers extended connectivity options including front USB-C® 10Gb/s, rear USB-C® 20Gb/s, DisplayPort, and HDMI.

Cooling: Smart Fan 6 technology, with multiple temperature sensors and hybrid fan headers that include FAN STOP functionality.

BIOS Update: Q-Flash Plus allows for BIOS updates without the need to install the CPU, memory, or graphics card.

This motherboard is designed for users seeking a balance between performance, connectivity, and ease of use, making it suitable for gaming, content creation, and other demanding applications.

Seller note

010062151000152

Fast delivery
2-5 Days
Online Support
Chat and Phone
order protection
secured information
promotion gift
special offers!
money back
return over 14 days

CPU

Socket: LGA1700
Compatibility: Supports 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold, and Celeron® processors.
L3 Cache: Varies with CPU.

Chipset

Type: Intel® B760 Express Chipset.

Memory

Type: DDR4
Supported Speeds: From 2133 MT/s to 5333 MT/s (Overclocked).
Capacity: 4 DDR DIMM slots, supporting up to 128 GB (32 GB per DIMM).
Features: Dual-channel architecture, support for ECC (non-ECC mode) and non-ECC memory, XMP support.

Onboard Graphics

Integrated Graphics: Intel® HD Graphics (depending on CPU).
Video Outputs:
- HDMI: Supports up to 4096x2160@60 Hz, HDMI 2.1, HDCP 2.3.
- DisplayPort: Supports up to 4096x2304@60 Hz, DisplayPort 1.2, HDCP 2.3.

Audio

Codec: Realtek® Audio CODEC.
Channels: 2/4/5.1/7.1-channel support, with configurable audio jacks.
Digital Output: S/PDIF Out support.

Networking

LAN: Realtek® 2.5GbE LAN chip.
Wireless:
- Wi-Fi: Intel® Wi-Fi 6E AX211 or Realtek® Wi-Fi 6E RTL8852CE (depending on PCB revision).
- Bluetooth: Bluetooth 5.3.

Expansion Slots

PCIe Slots:
- CPU-controlled: 1 x PCIe 4.0 x16 (supports graphics card or NVMe SSD).
- Chipset-controlled: 1 x PCIe 4.0 x4 (supports AMD CrossFireX™ technology).

Storage Interface

M.2 Slots:
- CPU: 1 x M.2 PCIe 4.0 x4/x2 (type 2280).
- Chipset: 1 x M.2 PCIe 4.0 x4/x2 (type 22110/2280).
SATA: 4 x SATA 6Gb/s connectors.
RAID Support: RAID 0, 1, 5, 10 for SATA.

USB Ports

Back Panel:
- 1 x USB Type-C® (USB 3.2 Gen 2x2).
- 1 x USB Type-C® (USB 3.2 Gen 2).
- 1 x USB 3.2 Gen 2 Type-A.
- 3 x USB 3.2 Gen 1 Type-A.
- 4 x USB 2.0/1.1 Type-A.
Internal Headers:
- Additional USB 3.2 Gen 1 and USB 2.0/1.1 ports.

Internal I/O Connectors

Power Connectors: 1 x 24-pin ATX, 1 x 8-pin ATX 12V, 1 x 4-pin ATX 12V.
Fan Headers: 1 x CPU fan, 3 x system fans.
RGB Headers: 2 x addressable LED strip headers, 2 x RGB LED strip headers.
Storage: 2 x M.2 connectors, 4 x SATA 6Gb/s connectors.
USB Headers: 1 x USB Type-C® header (USB 3.2 Gen 2), 1 x USB 3.2 Gen 1 header, 2 x USB 2.0/1.1 headers.
Other Connectors: Thunderbolt™ add-in card connectors, TPM header, front panel header, front panel audio header, Clear CMOS jumper, Q-Flash Plus button, and more.

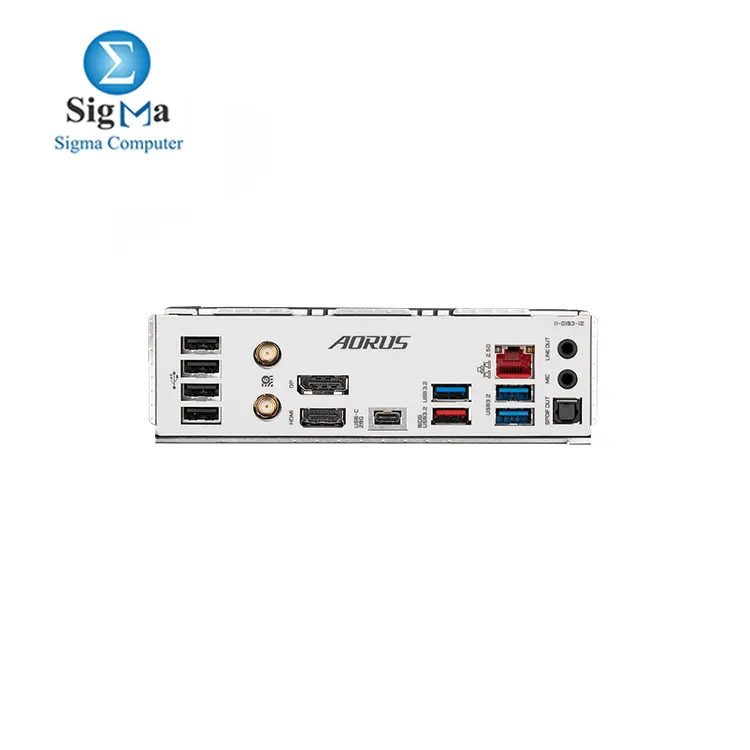

Back Panel Connectors

Network: 1 x RJ-45 (2.5GbE).
Display: 1 x HDMI, 1 x DisplayPort.
Audio: 2 x audio jacks, 1 x optical S/PDIF Out.
Wireless: 2 x SMA antenna connectors.
USB: Multiple USB Type-C and Type-A ports.

BIOS

Storage: 1 x 256 Mbit flash.
Type: Licensed AMI UEFI BIOS with multiple standards (PnP, DMI, WfM, SM BIOS, ACPI).

Unique Features

Software: GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus.
Bundled Software: Norton® Internet Security (OEM), LAN bandwidth management software.

Operating System

Compatibility: Windows 11 64-bit, Windows 10 64-bit.

Form Factor

Type: Micro ATX, dimensions 24.4cm x 24.4cm.

This motherboard is designed for a wide range of use cases, from gaming to professional applications, providing robust connectivity, expansion options, and support for the latest Intel processors and technologies.
