Gigabyte Z790 AERO G | 18499 EGP

Gigabyte Z790 AERO G

18499 LE
Availability: In Stock only 1 item left
shipped by (sigma)
Point: 50

Brand : Gigabyte brand

Model : Z790

Seller : sigma

Viewed : 801 items

The Gigabyte Z790 AERO G is a motherboard designed specifically for content creators, offering a robust set of features tailored to handle demanding tasks like 3D rendering and video production. Part of the AERO series, this motherboard is equipped to support powerful computing performance, excellent connectivity options, and expandable graphics capabilities. It also supports ultra-fast storage solutions, making it ideal for professionals who work with large files and require high-speed data processing.

Key features include:

  • Optimized Performance: Built to handle heavy design workloads, ensuring reliable and stable operation during intensive tasks.
  • Impressive Connectivity: Offers a variety of ports and connectivity options, including multiple USB ports, Thunderbolt support, and high-speed networking capabilities.
  • Expandable Graphics: Designed to accommodate powerful GPUs, which is essential for creators working with complex visual projects.
  • Ultra-Fast Storage: Supports the latest storage technologies, including NVMe SSDs, to provide quick access to large files and reduce loading times.

Overall, the Gigabyte Z790 AERO G is an excellent choice for creators looking for a motherboard that can keep up with their demanding projects.





CPU Support

  • Socket: LGA1700
  • Compatibility: Supports 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold, and Celeron® processors.
  • L3 Cache: Varies with the installed CPU.

Chipset

  • Chipset: Intel® Z790 Express Chipset.

Memory

  • Type: Supports DDR5 memory modules.
  • Speed: Capable of handling speeds up to DDR5 7600(O.C.).
  • Capacity: Up to 256 GB across 4 DIMM slots.
  • Features: Dual-channel architecture, ECC (in non-ECC mode) and non-ECC Un-buffered DIMM support, XMP support.

Onboard Graphics

  • Integrated Graphics Processor: Intel® HD Graphics.
  • Video Outputs:
    • USB Type-C: Supports DisplayPort 1.4 and 4096x2304@60 Hz resolution, also supports drawing tablets and power delivery.
    • HDMI: Supports HDMI 2.1 with 4096x2160@60 Hz resolution.

Audio

  • Codec: Realtek® ALC1220-VB.
  • Channels: High Definition Audio with support for 2/4/5.1/7.1-channel configurations.
  • Special Features: S/PDIF Out support, DSD audio through the back panel line out.

LAN & Wireless

  • LAN: Intel® 2.5GbE LAN chip.
  • Wireless: Intel® Wi-Fi 6E AX211 with Bluetooth 5.3, supporting 2.4/5/6 GHz frequencies and up to 2.4 Gbps data rates.

Expansion Slots

  • PCIe Slots:
    • CPU: 1 x PCIe 5.0 x16 slot (shares bandwidth with an M.2 slot).
    • Chipset: 1 x PCIe 4.0 x4 slot, 1 x PCIe 3.0 x4 slot.

Storage

  • M.2 Slots:
    • CPU: 1 x PCIe 5.0 x4, 1 x PCIe 4.0 x4.
    • Chipset: 3 x PCIe 4.0 x4 slots, 1 of which supports SATA.
  • SATA: 4 x SATA 6Gb/s connectors.
  • RAID: Supports RAID 0, 1, 5, and 10 for both NVMe and SATA storage.

USB Ports

  • Back Panel:
    • 2 x USB 2.0/1.1
    • 4 x USB 3.2 Gen 1
    • 2 x USB 3.2 Gen 2 Type-A (red)
    • 2 x USB Type-C® (1 with USB 3.2 Gen 2x2, 1 with USB 3.2 Gen 2)
  • Internal:
    • Headers for additional USB 3.2 Gen 1, USB 2.0/1.1, and USB Type-C®.

Internal I/O Connectors

  • Includes connectors for power, fans, LEDs, SATA, M.2, front panel, audio, USB, Thunderbolt add-in cards, TPM, and more.

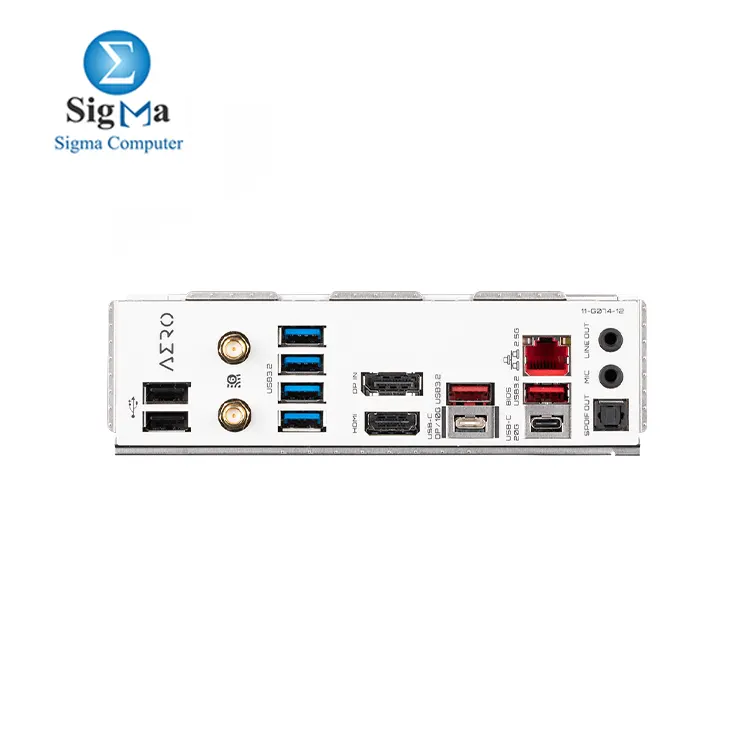

Back Panel Connectors

  • Features various USB ports, HDMI, DisplayPort In, RJ-45 LAN port, audio jacks, optical S/PDIF Out, and SMA antenna connectors.

Monitoring & Control

  • I/O Controller: iTE® I/O Controller Chip.
  • Monitoring: Voltage, temperature, fan speed, water cooling flow rate, and noise detection.
  • Fan Control: Adjustable fan speed depending on the installed fans or pump.

BIOS

  • Size: 256 Mbit flash.
  • Features: AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0.

Unique Features

  • Support for GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, and Smart Backup.

Software

  • Bundled Software: Norton® Internet Security (OEM version) and LAN bandwidth management software.

Operating System

  • Compatibility: Supports Windows 11 and Windows 10 64-bit versions.

Form Factor

  • Size: ATX Form Factor, 30.5cm x 24.4cm.



CategoryDesktop
SubcategoryMotherboard
BrandGigabyte
ModelZ790
