Gigabyte Z790 S DDR4 | 9600 EGP

Gigabyte Z790 S DDR4

9600 LE
Availability: In Stock
shipped by (sigma)
Point: 15

Brand : Gigabyte brand

Model : Z790 S

Seller : sigma

Viewed : 1651 items

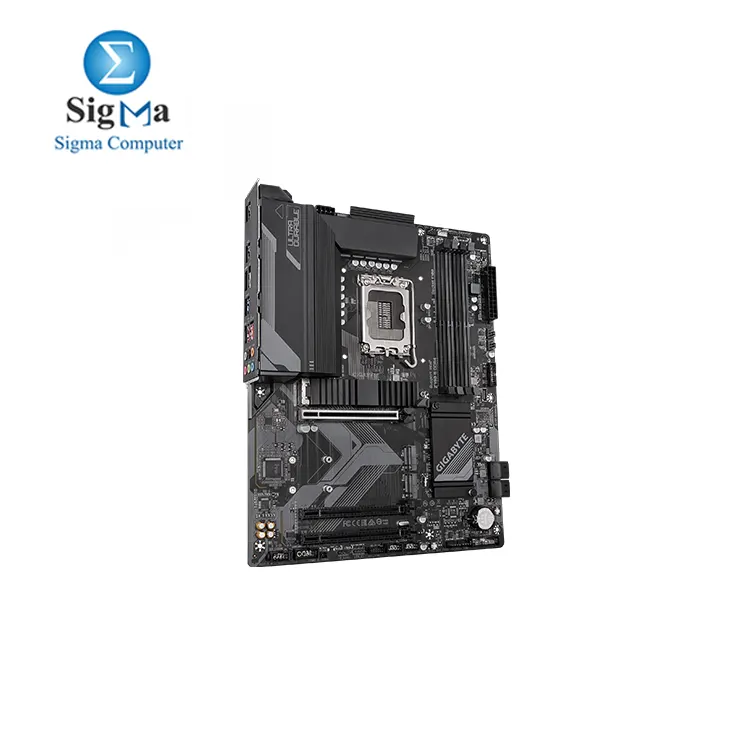

The Gigabyte Z790 S DDR4 motherboard is designed to support Intel's 14th, 13th, and 12th generation Core™ processors, making it suitable for both current and future systems. Here's a breakdown of its key features:

1. Processor Compatibility

  • Supports Intel® Core™ 14th, 13th, and 12th processors for high performance.

2. Power Delivery

  • Hybrid 8+1+1 Phases Digital VRM Solution: Ensures stable power delivery to the CPU, which is critical for system stability and overclocking.

3. Memory

  • Dual Channel DDR4: Supports up to 4 DIMM slots with XMP (Extreme Memory Profile) for optimized memory performance.

4. Storage

  • 3x PCIe 4.0 x4 M.2 Connectors: Provides fast storage options with the latest PCIe Gen4 speeds.

5. Thermal Design

  • Advanced Thermal Design & M.2 Thermal Guard: Ensures that both the VRM and M.2 SSDs remain cool during operation, promoting system stability and long-term performance.

6. PCIe Slot

  • EZ-Latch PCIe 4.0x16 Slot: A quick-release design for the primary PCIe slot, making it easier to swap out GPUs without tools.

7. Networking

  • 2.5GbE LAN: Provides high-speed wired networking capabilities, ideal for gaming and content creation.

8. Connectivity

  • USB-C Front Panel: Supports 10Gb/s speeds, allowing for fast data transfers.
  • Display Outputs: Includes both DisplayPort and HDMI for integrated graphics.

9. Cooling Management

  • Smart Fan 6: Multiple temperature sensors and hybrid fan headers with support for FAN STOP, enabling fine control over cooling and fan noise.

10. BIOS Flashing

  • Q-Flash Plus: Allows users to update the BIOS without the need to install a CPU, memory, or graphics card, simplifying the upgrade process.

This motherboard is designed for enthusiasts and gamers looking for stability, performance, and expandability while still supporting DDR4 memory.





1. CPU Support

  • Socket: LGA1700
  • Supports: Intel® 14th, 13th, and 12th Generation Core™, Pentium® Gold, and Celeron® processors.
  • L3 Cache: Varies by CPU.
  • Chipset: Intel® Z790 Express Chipset.

2. Memory Support

  • DDR4 Memory Speeds: Up to 5333 MT/s (O.C.) with support for various other speeds (e.g., 3200/3000/2933/2666/2400/2133 MT/s).
  • Capacity: Up to 128 GB (4x DIMMs, 32 GB per DIMM).
  • Dual-channel architecture.
  • Supports XMP (Extreme Memory Profile) for easier overclocking.
  • Supports ECC Un-buffered DIMM (in non-ECC mode) and non-ECC Un-buffered DIMMs.

3. Integrated Graphics (depending on CPU support)

  • DisplayPort: Supports up to 4096x2304 @ 60 Hz (DP 1.2, HDCP 2.3).
  • HDMI 2.1: Supports up to 4096x2160 @ 60 Hz (HDCP 2.3, native HDMI 2.1 TMDS).

4. Audio

  • Realtek® Audio CODEC.
  • Supports up to 7.1-channel HD audio with S/PDIF out.

5. LAN

  • Realtek® 2.5GbE LAN (2.5 Gbps/1 Gbps/100 Mbps).

6. Expansion Slots

  • 1 x PCIe 4.0 x16 (full x16 support, reserved for graphics cards or NVMe SSD).
  • 2 x PCIe 3.0 x1 slots (for expansion cards).

7. Storage

  • M.2 Slots:
    • 1 x M.2 (PCIe 4.0 x4) connected to the CPU.
    • 2 x M.2 (PCIe 4.0 x4) connected to the chipset.
  • SATA: 4 x SATA 6Gb/s ports with RAID 0, 1, 5, 10 support for both NVMe and SATA.

8. USB Ports

  • USB 3.2 Gen 2:
    • 1x USB Type-C® (internal header).
    • 1x USB 3.2 Gen 2 Type-A (rear panel).
  • USB 3.2 Gen 1:
    • 2x USB 3.2 Gen 1 (rear).
    • 2x USB 3.2 Gen 1 (internal header).
  • USB 2.0/1.1:
    • 1x USB 2.0/1.1 (rear).
    • 8x USB 2.0/1.1 (rear and internal headers).

9. Internal I/O Connectors

  • Power connectors: 24-pin ATX, 8-pin ATX 12V.
  • Cooling: CPU fan, water pump, system fan headers, hybrid fan headers, and fan stop support.
  • RGB: 2x addressable LED strip headers, 2x RGB LED strip headers.
  • Other connectors: Front audio, S/PDIF, USB 3.2, USB 2.0, TPM, serial port, and Q-Flash Plus button.

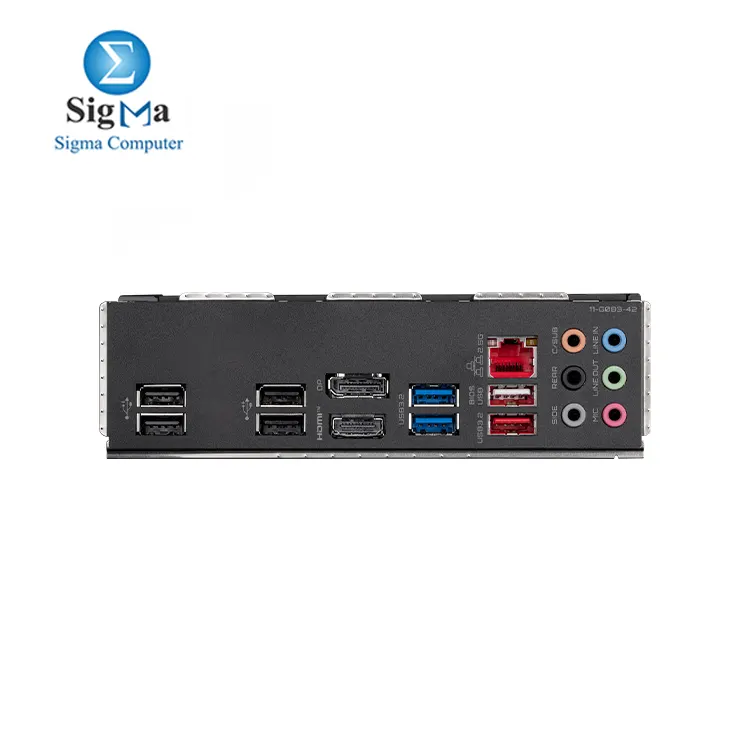

10. Back Panel Connectors

  • USB: 1x USB 3.2 Gen 2 Type-A, 2x USB 3.2 Gen 1, 5x USB 2.0/1.1.
  • Display: 1x DisplayPort, 1x HDMI.
  • Audio: 6x audio jacks.
  • Networking: 1x RJ-45 (2.5GbE).

11. BIOS

  • 256 Mbit flash.
  • AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0.
  • Features: Q-Flash Plus, Smart Backup.

12. Unique Features

  • Gigabyte Control Center (GCC) support for system management.
  • Q-Flash, allows BIOS updates without CPU, RAM, or GPU.

13. Software and OS Support

  • Norton® Internet Security (OEM).
  • Windows 11 and Windows 10 64-bit support.

14. Form Factor

  • ATX (30.5cm x 24.4cm).

This motherboard is a well-rounded choice for users looking for a powerful yet flexible platform that supports both current and next-gen Intel processors and DDR4 memory.
