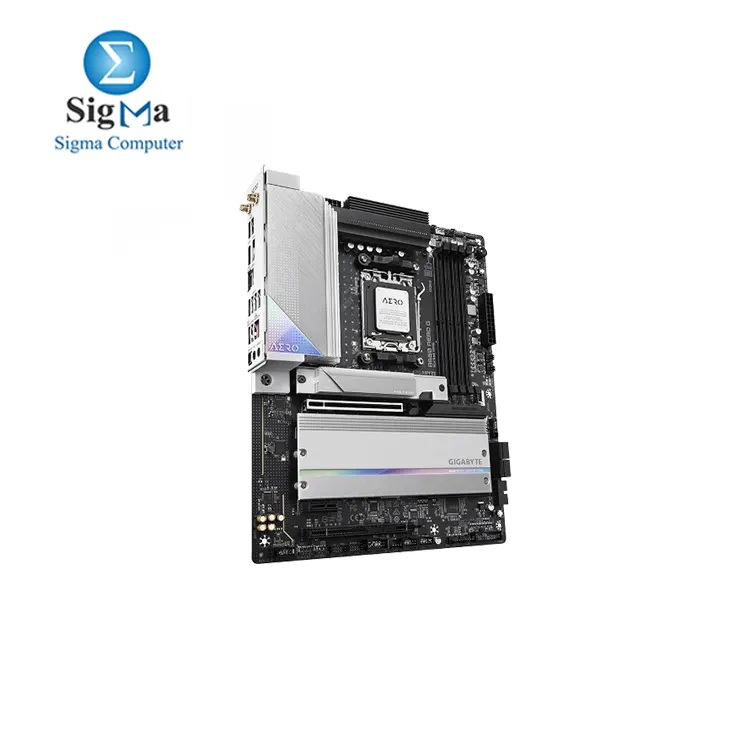

Gigabyte AMD B650 AERO G Motherboard

reviews | Write a review

15500 LE

Availability: In Stock

shipped by (sff4$vjs2hf5kg)

Point: 10

Brand : Gigabyte

Model : B650 AERO G

Seller : sff4$vjs2hf5kg

Viewed : 1819 items

AERO SERIES

AERO Series motherboards are a fresh approach to creators that evolve with optimized features for content creation. To deliver reliable computing performance, impressive connectivity, expandable graphics,and ultra-fast storage for creators to deal with heavy design workloads like 3D rendering and feature-length video production.

Seller note

010062152000062

Fast delivery
2-5 Days
Online Support
Chat and Phone
order protection
secured information
promotion gift
special offers!
money back
return over 14 days

B650 AERO G (rev. 1.0)

Supports AMD Ryzen™ 7000 / 8000 / 9000 Series Processors (Refer to "CPU Support List" for more details)

Supports DDR5 memory with speeds up to 8000 MT/s (OC)

4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB per module)

Dual channel memory architecture

Supports non-ECC, unbuffered DIMM modules

AMD EXPO™ & XMP memory overclocking profiles supported

Integrated Graphics Processor:

1 x USB Type-C® (USB 3.2 Gen 2) port with DisplayPort support (Max: 3840x2160@144 Hz)

1 x HDMI 2.1 port (Max: 4096x2160@60 Hz)

Support for DisplayPort 1.4, HDCP 2.3

Realtek® ALC1220-VB Codec

High Definition Audio (2/4/5.1/7.1-channel)

LAN: Intel® 2.5GbE LAN (2.5 Gbps / 1 Gbps / 100 Mbps)

Wireless: AMD Wi-Fi 6E RZ616 (2.4/5/6 GHz) with Bluetooth 5.2

1 x PCIe 4.0 x16 (for AMD Ryzen™ 7000 Series Processors)

1 x PCIe 4.0 x4 (shared with M2C_SB connector)

M2A_CPU: PCIe 5.0 x4/x2 SSDs (7000 Series), PCIe 4.0 (8000 Series)

M2B_CPU: PCIe 4.0 x4/x2 SSDs

M2C_SB: PCIe 4.0 x4 SSDs

4 x SATA 6Gb/s connectors

RAID 0, 1, 10 support (for both NVMe and SATA)

1 x USB Type-C® (USB 3.2 Gen 2)

3 x USB 3.2 Gen 2 Type-A (red)

1 x USB Type-C® (USB 3.2 Gen 2x2)

1 x 24-pin ATX power connector

1 x 8-pin and 1 x 4-pin ATX 12V power connectors

1 x CPU fan header, 1 x water cooling CPU fan header

4 x system fan headers

2 x system fan/water cooling pump headers

2 x addressable LED strip headers, 2 x RGB LED strip headers

3 x M.2 connectors, 4 x SATA connectors

1 x front panel audio, 1 x front panel header

1 x USB Type-C® header, 1 x USB 3.2 Gen 1 header, 2 x USB 2.0 headers

2 x temperature sensor headers, 1 x noise detection header

1 x THB_U4 add-in card connector

1 x TPM header, 1 x Q-Flash Plus button, 1 x reset button/jumper

2 x SMA antenna connectors

1 x DisplayPort In port

3 x USB 3.2 Gen 2 Type-A (red)

1 x USB Type-C® (USB 3.2 Gen 2)

1 x RJ-45 (2.5G LAN)

2 x audio jacks, 1 x optical S/PDIF out

BIOS: AMI UEFI BIOS, 256 Mbit Flash

Form Factor: ATX, 30.5cm x 24.4cm

GIGABYTE Control Center (GCC)

Q-Flash / Q-Flash Plus support

Norton Internet Security (OEM)

Windows 11 and Windows 10 64-bit support
