GIGABYTE B760 DS3H AX DDR4 (LGA 1700/ Intel/ B760/ ATX/ DDR4/ M.2/ PCIe 4.0/ USB 3.2 Gen 2 Type-C/WiFi 6E Realtek GbE LAN/Q-Flash Plus/PCIe EZ-Latch/Motherboard) | 8200 EGP

GIGABYTE B760 DS3H AX DDR4 LGA 1700 Intel B760 ATX DDR4 M.2 PCIe 4.0 USB 3.2 Gen 2 Type-C WiFi 6E Realtek GbE LAN Q-Flash Plus PCIe EZ-Latch Motherboard

8200 LE
Availability: In Stock
shipped by (sigma)
Point: 20

Brand : Gigabyte brand

Model : B760 DS3H AX

Seller : sigma

Viewed : 699 items

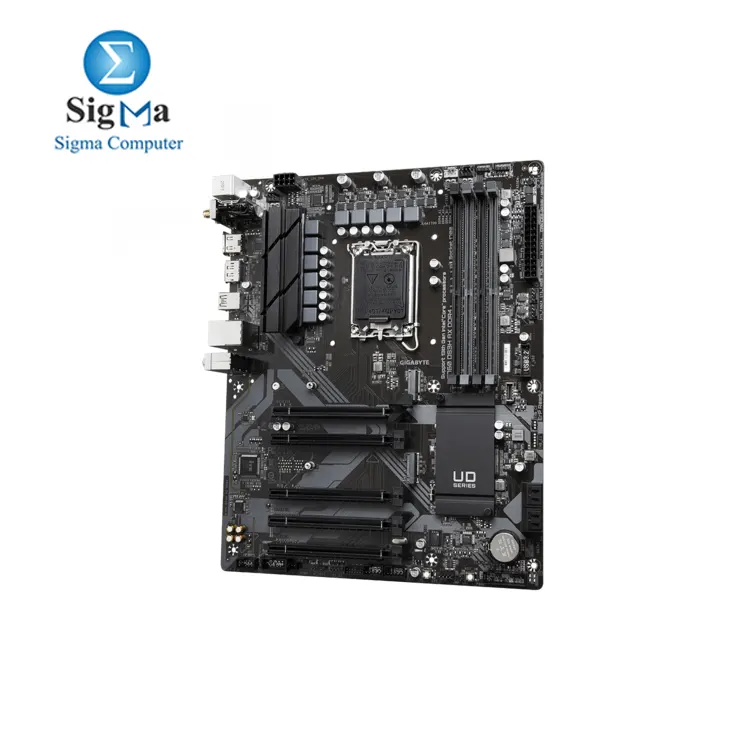

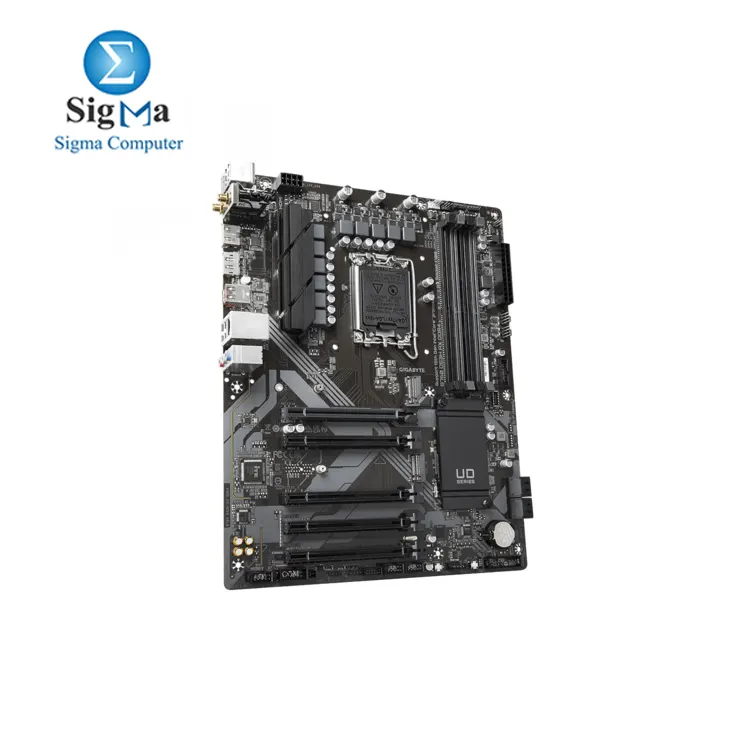

The GIGABYTE B760 DS3H AX DDR4 motherboard offers a solid foundation for building high-performance Intel-based systems.

  • Socket Type: LGA 1700, compatible with Intel 12th and 13th generation processors.
  • Chipset: Intel B760 chipset, offering strong mid-range performance.
  • Form Factor: ATX, ideal for full-sized PC cases.
  • Memory Support: DDR4, with support for high-speed memory up to 5333 MHz (OC).
  • PCIe 4.0: Provides fast data transfer speeds for GPUs, NVMe drives, and other expansion cards.
  • M.2 Slots: Two M.2 slots for high-speed SSD storage, with PCIe 4.0 support.
  • USB 3.2 Gen 2 Type-C: Offers high-speed connectivity for modern devices.
  • WiFi 6E: Supports the latest WiFi 6E standard, providing faster wireless connections.
  • Realtek GbE LAN: Wired Ethernet support for stable, high-speed network connectivity.
  • Q-Flash Plus: Enables BIOS updates without needing a CPU or memory.
  • PCIe EZ-Latch: Simplifies installation and removal of PCIe devices.




CPU Support

  • Socket: LGA 1700
  • Compatibility: Supports 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® processors.
  • Cache: L3 cache varies by CPU.

Chipset

  • Intel® B760 Express: Offers reliable performance for mainstream use.

Memory

  • Type: DDR4
  • Capacity: Up to 128 GB (4 DIMMs, max 32 GB per DIMM)
  • Speeds: Up to 5333 MHz (OC), backward-compatible with lower frequencies.
  • Features: Dual-channel architecture, XMP support, ECC (non-ECC operation).

Graphics

  • Integrated Intel® HD Graphics (depends on CPU):
    • HDMI: Up to 4096x2160@60 Hz (HDMI 2.1, HDCP 2.3).
    • DisplayPort: Up to 4096x2304@60 Hz (DP 1.2, HDCP 2.3).

Audio

  • Realtek® Audio CODEC:
    • Channels: 2/4/5.1/7.1 with S/PDIF Out.
    • Customizable Audio Jacks.

Networking

  • LAN: Realtek® 1 Gbps Ethernet.
  • WiFi & Bluetooth (varies by PCB revision):
    • WiFi: Up to WiFi 6E (Intel/AMD variations).
    • Bluetooth: Versions 5.2 or 5.3.

Expansion Slots

  • PCIe 4.0 x16 (for GPU or NVMe SSD).
  • PCIe 3.0 x1 (4 slots for additional devices).

Storage

  • M.2 Slots:
    • 1 PCIe 4.0 x4 (CPU-controlled, up to 22110).
    • 1 PCIe 4.0 x4 (chipset-controlled, up to 2280).
  • SATA: 4 SATA 6Gb/s ports with RAID support (0/1/5/10).

USB Ports

  • Rear I/O:
    • 1 x USB-C (3.2 Gen 2x2).
    • 1 x USB-C (3.2 Gen 1).
    • 1 x USB-A (3.2 Gen 2).
    • 4 x USB 2.0.
  • Internal Headers:
    • USB-C (3.2 Gen 1).
    • USB-A (3.2 Gen 1, USB 2.0).

Cooling and Lighting

  • 4 fan headers, water pump compatibility.
  • Addressable RGB and standard RGB headers for lighting customization.

Key Features

  • Q-Flash Plus: BIOS update without CPU or RAM.
  • PCIe EZ-Latch: Simplified card installation/removal.
  • GIGABYTE Control Center: Unified software for system management.

Form Factor

  • Size: ATX (30.5 cm x 24.4 cm).



CategoryDesktop
SubcategoryMotherboard
BrandGigabyte
ModelB760 DS3H AX
