GIGABYTE B550M DS3H AMD B550 Socket AM4 Micro ATX DDR4 | 5100 EGP

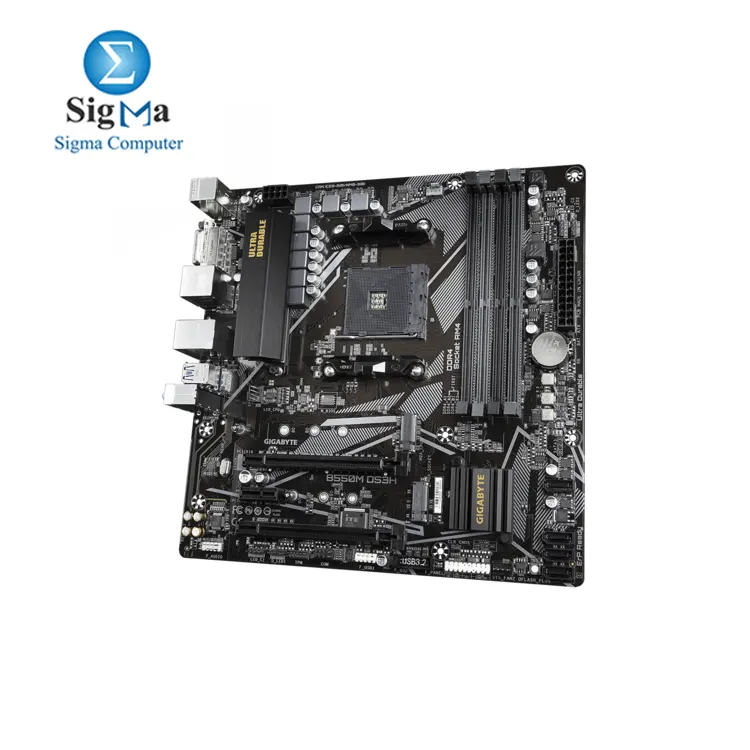

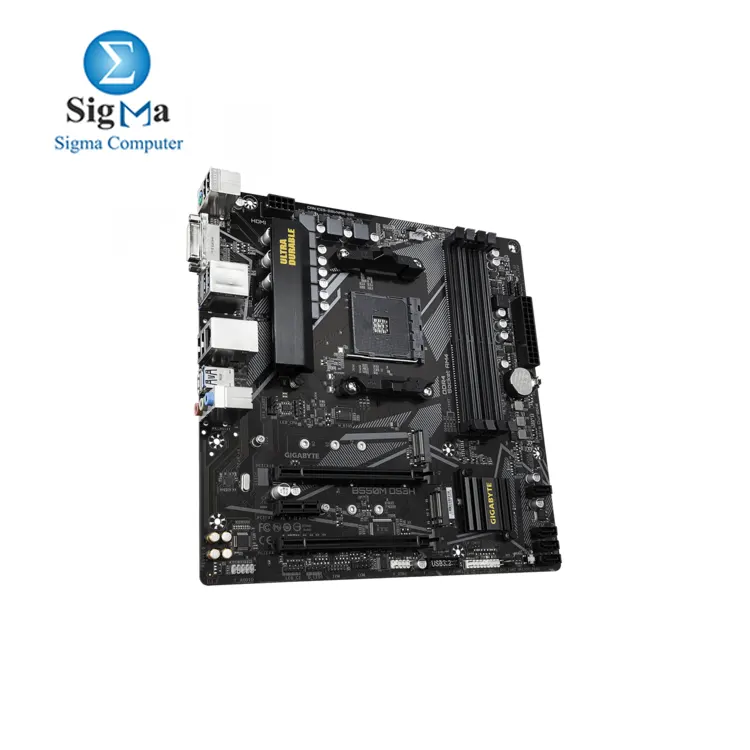

GIGABYTE B550M DS3H AMD B550 Socket AM4 Micro ATX DDR4

5100 LE
Availability: In Stock
shipped by (sigma)
Point: 10

Brand : Gigabyte brand

Model : B550M DS3H

Seller : sigma

Viewed : 856 items

AMD B550 Ultra Durable Motherboard

Key Features:

  • Processor Support: Compatible with AMD Ryzen™ 5000, 5000 G-Series, 4000 G-Series, 3000, and 3000 G-Series processors.
  • Memory: Dual-channel ECC/Non-ECC DDR4 support with 4 DIMM slots.
  • VRM Solution: 5+3 phases with low RDS(on) MOSFETs for efficient power delivery.
  • PCIe: Ultra Durable™ PCIe 4.0 x16 slot for high-performance GPUs.
  • Storage: Dual PCIe 4.0/3.0 M.2 connectors for ultra-fast NVMe SSDs.
  • Audio: High-quality audio capacitors and noise guard for superior sound clarity.
  • Networking: Realtek GbE LAN with bandwidth management.
  • Display: Rear HDMI and DVI outputs.
  • RGB Lighting: RGB FUSION 2.0 supports addressable and RGB LED strips.
  • Cooling: Smart Fan 5 with multiple sensors, hybrid fan headers, and FAN STOP feature.
  • BIOS Update: Q-Flash Plus allows BIOS updates without CPU, memory, or GPU installation.
  • Durability: Anti-sulfur resistors design for extended lifespan.

CPU & Chipset

  • Socket: AMD AM4
  • CPU Support: AMD Ryzen™ 5000, 5000 G-Series, 4000 G-Series, 3000, and 3000 G-Series processors.
  • Chipset: AMD B550

Memory

  • Capacity: Up to 128GB (4x DIMMs, 32GB per DIMM)
  • Supported Speeds: DDR4 up to 4733MHz (OC) and standard frequencies down to 2133MHz
  • Features: Dual-channel architecture, ECC (varies by CPU), and XMP support

Graphics

  • Integrated Graphics Processor with:
    • 1x DVI-D Port: Max resolution 1920x1200 @ 60Hz
    • 1x HDMI Port: HDMI 2.1, max resolution 4096x2160 @ 60Hz, HDCP 2.3, HDR
    • Max Shared Memory: 16GB

Expansion Slots

  • 1x PCIe 4.0/3.0 x16 slot (depends on CPU)
  • 1x PCIe 3.0 x4 slot
  • 1x PCIe 3.0 x1 slot

Storage

  • M.2 Slots:
    • M2A_CPU: PCIe 4.0/3.0 x4 (depends on CPU) & SATA support
    • M2B_SB: PCIe 3.0 x2 & SATA support
  • SATA Ports: 4x 6Gb/s ports with RAID 0, 1, 10 support

Audio

  • Realtek® Audio CODEC with support for 2/4/5.1/7.1 channels
  • Enhancements: High-quality audio capacitors, audio noise guard

Networking

  • Realtek® GbE LAN (10/100/1000 Mbps)

USB

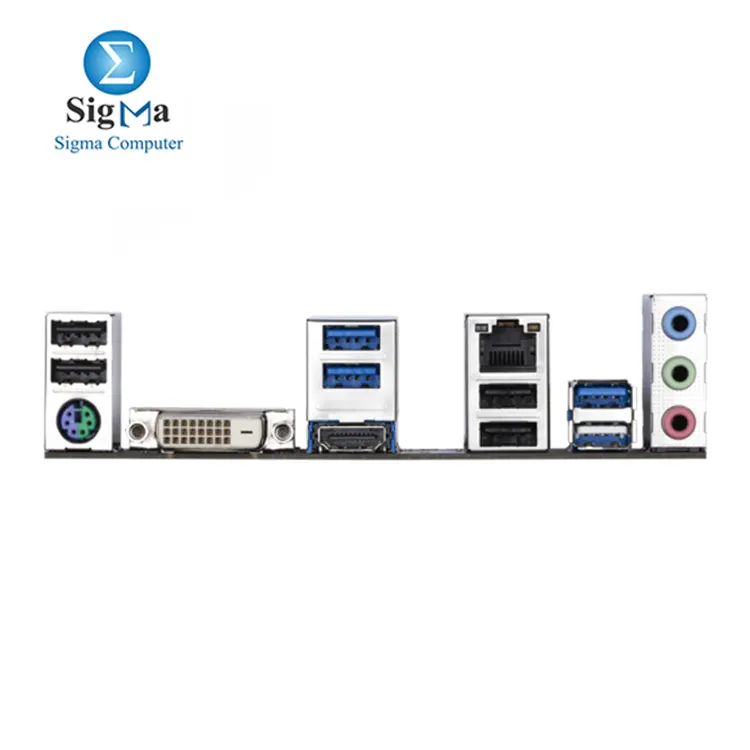

  • Back Panel: 4x USB 3.2 Gen 1, 4x USB 2.0/1.1
  • Internal Headers:
    • 2x USB 3.2 Gen 1
    • 2x USB 2.0/1.1

Cooling & RGB

  • Cooling:
    • 1x CPU fan header, 2x system fan headers
    • Fan Stop and AIO pump support (up to 2A/12V, 24W)
  • RGB Support:
    • 2x addressable LED headers, 2x RGB LED headers

BIOS & Features

  • BIOS: 256 Mbit AMI UEFI BIOS
  • Unique Features:
    • Q-Flash Plus (BIOS update without CPU/GPU/RAM)
    • RGB Fusion, APP Center, EasyTune, @BIOS

Form Factor

  • Micro-ATX: 24.4cm x 24.4cm
CategoryDesktop
SubcategoryMotherboard
BrandGigabyte
ModelB550M DS3H
