ASUS Prime H610M-A D4-CSM LGA 1700 Micro ATX DDR4 Motherboard | 4699 EGP

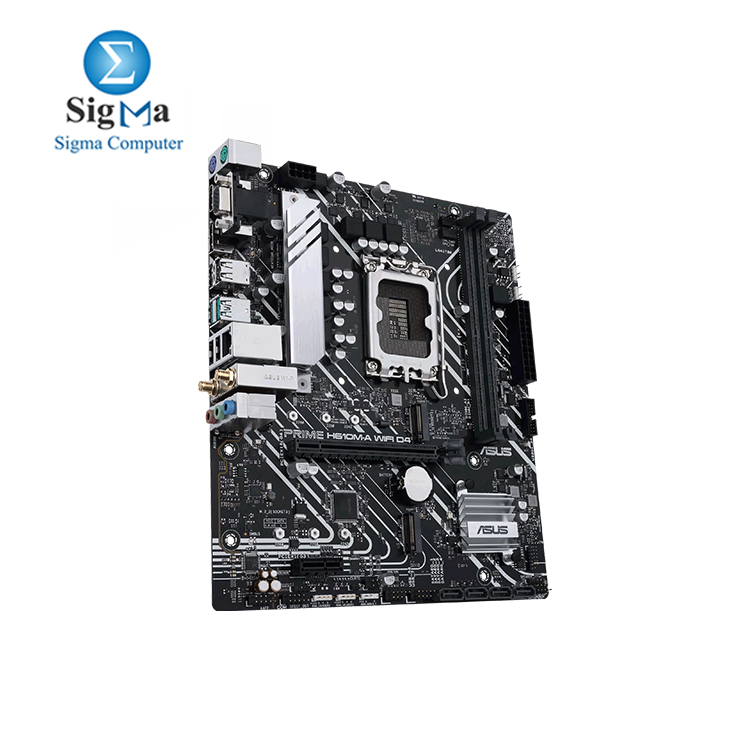

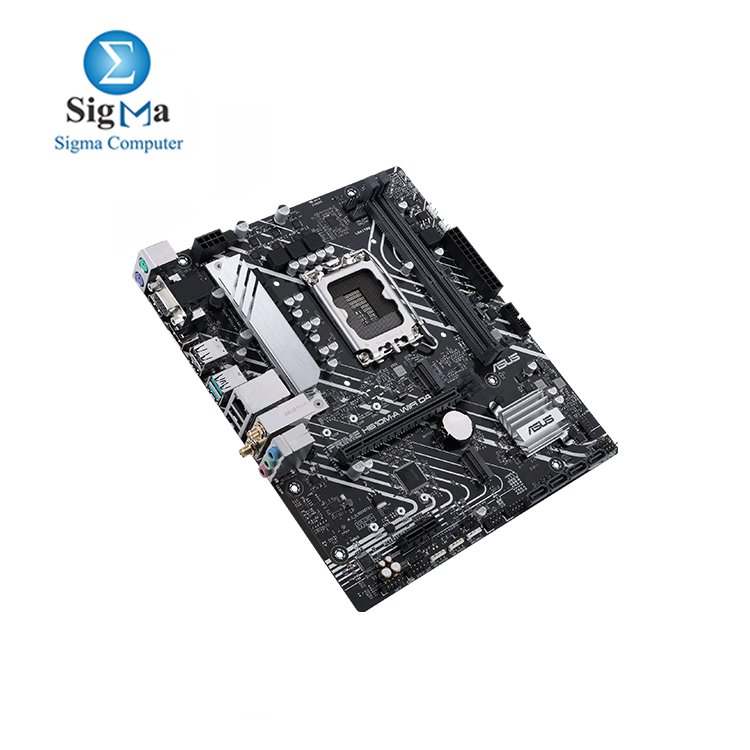

ASUS Prime H610M-A D4-CSM LGA 1700 Micro ATX DDR4 Motherboard

4699 LE
Availability: In Stock
shipped by (sff4$vjs2hf5kg)
Point: 15

Brand : ASUS brand

Model : H610M-A

Seller : sff4$vjs2hf5kg

Viewed : 117 items

Intel® H610 Micro-ATX Motherboard Features

Processor Support:

  • Intel® LGA 1700 Socket: Compatible with 14th, 13th, and 12th Gen Intel® processors.

Cooling Solution:

  • Comprehensive Cooling: Includes VRM heatsink, PCH heatsink, and Fan Xpert 2+ for optimal thermal performance.

Connectivity and Expansion:

  • Ultrafast M.2 Slot: Supports up to 32Gbps transfer speed for rapid data access.
  • Intel® 1 Gb Ethernet: Reliable and fast wired networking.
  • WIFI 5: Supports wireless connectivity with fast speeds.
  • USB 3.2 Gen 2 Ports: High-speed data transfer with backward compatibility.
  • Dual M.2 Slots: For enhanced storage flexibility and performance.
  • SATA 6 Gbps: Standard for fast and reliable storage connections.

Video Output:

  • DisplayPort, HDMI®, D-Sub: Multiple display output options for versatile setups.

RGB Lighting:

  • Aura Sync RGB: Includes onboard addressable Gen 2 headers for easy syncing with Aura Sync-compatible hardware for customizable lighting effects.

Additional Features:

  • Addressable Gen 2 Headers: For adding RGB LED strips and accessories, controlled through Aura Sync.




ASUS PRIME H610M-A WIFI D4 Motherboard Specifications

Model:

  • PRIME H610M-A WIFI D4

CPU Support:

  • Socket: Intel® LGA1700
  • Compatible Processors: Intel® Core™ 14th, 13th & 12th Gen, Intel® Pentium® Gold, and Intel® Celeron® processors
  • Intel® Turbo Boost Technology: Supports Turbo Boost 2.0 & Turbo Boost Max Technology 3.0 (depending on CPU)

Chipset:

  • Intel® H610 Chipset

Memory Support:

  • Slots: 2 x DIMM
  • Maximum Capacity: 64GB
  • Memory Types: DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered
  • Dual Channel Architecture
  • Intel® Extreme Memory Profile (XMP) Support

Graphics Outputs:

  • 1 x DisplayPort (supports up to 4K @ 60Hz)
  • 1 x D-Sub Port
  • 1 x HDMI® Port (supports 4K @ 60Hz)

Expansion Slots:

  • 1 x PCIe 4.0 x16 Slot
  • 1 x PCIe 3.0 x1 Slot

Storage Support:

  • 2 x M.2 Slots
    • M.2_1 (PCIe 3.0 x4 mode)
    • M.2_2 (PCIe 3.0 x2 mode)
  • 4 x SATA 6Gb/s Ports

Ethernet & Wireless:

  • Ethernet: 1 x Intel® 1Gb Ethernet
  • Wi-Fi: Wi-Fi 5 (802.11 a/b/g/n/ac), Supports 2.4/5GHz
  • Bluetooth: v5.0

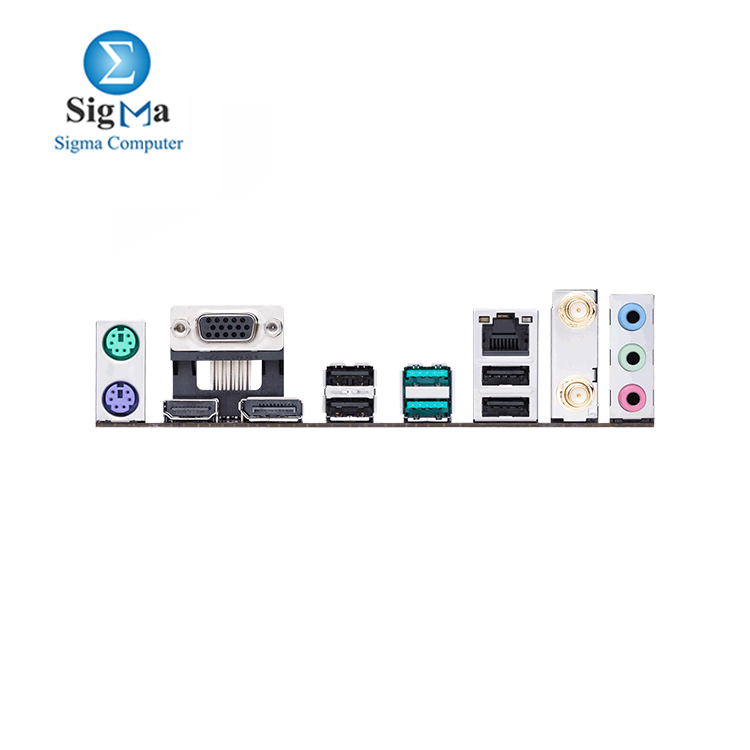

USB Ports:

  • Rear I/O:
    • 2 x USB 3.2 Gen 2 (Type-A)
    • 4 x USB 2.0 (Type-A)
    • 1 x DisplayPort
    • 1 x HDMI®
    • 1 x D-Sub
    • 1 x Wi-Fi Module
    • 1 x Intel® 1Gb Ethernet Port
    • 3 x Audio Jacks
    • 1 x PS/2 Keyboard Port (Purple)
    • 1 x PS/2 Mouse Port (Green)
  • Internal I/O:
    • 1 x USB 3.2 Gen 1 Header
    • 2 x USB 2.0 Headers
    • 3 x Addressable Gen 2 Headers
    • 2 x AURA RGB Headers

Audio:

  • Realtek 7.1 Surround Sound High Definition Audio CODEC
    • 24-Bit/192 kHz Playback
    • Supports Jack-detection, Multi-streaming, Front Panel Jack-retasking
    • Audio Shielding, Premium Audio Capacitors

Form Factor:

  • mATX (9.6 inches x 8.3 inches, 24.4 cm x 21.1 cm)

Special Features:

  • ASUS 5X PROTECTION III: DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core, Stainless-Steel Back I/O
  • AURA Sync RGB: Addressable Gen 2 headers for customizable lighting
  • ASUS Thermal Solution: VRM Heatsink Design
  • ASUS Q-Design: Q-DIMM, Q-Slot
  • Fan Xpert 2+ & AI Suite 3 for enhanced cooling and power management

BIOS Features:

  • UEFI BIOS
    • 128 Mb Flash ROM
    • EZ Flash 3, CrashFree BIOS 3, EZ Mode

Operating System Support:

  • Windows® 11 64-bit, Windows® 10 64-bit

Manageability:

  • WOL by PME, PXE



CategoryDesktop
SubcategoryMotherboard
BrandASUS
ModelH610M-A
