GIGABYTE X870 AORUS ELITE WIFI7 Motherboard - Supports AMD Ryzen 9000 CPUs, 16+2+2 phases VRM, up to 8000MHz DDR5 (OC), 4xPCIe 5.0 + 4xM.2, Wi-Fi 7, 2.5GbE LAN, USB 3.2 Gen 2x2 | 17000 EGP

GIGABYTE X870 AORUS ELITE WIFI7 Motherboard - Supports AMD Ryzen 9000 CPUs 16 2 2 phases VRM up to 8000MHz DDR5 OC 4xPCIe 5.0 4xM.2 Wi-Fi 7 2.5GbE LAN USB 3.2 Gen 2x2

17000 LE
Availability: In Stock only 2 item left
shipped by (sigma)
Point: 40

Brand : Gigabyte brand

Model : X870

Seller : sigma

Viewed : 365 items

GIGABYTE X870 AORUS ELITE – Key Features

  • Socket: AMD AM5 (Supports Ryzen™ 9000, 8000, 7000 Series).
  • Chipset: AMD X870.
  • Memory: DDR5 up to 8200 MT/s (OC), 256GB max, Dual-channel, AMD EXPO™ & XMP support.
  • Graphics: Integrated Radeon™ Graphics, USB4® (4K@240 Hz), HDMI 2.1 (4K@60 Hz).
  • Storage: 4x M.2 slots (PCIe 5.0 & 4.0), 4x SATA 6Gb/s, RAID 0/1/5/10.
  • Networking: Realtek® 2.5Gb LAN, Wi-Fi 7, Bluetooth 5.4.
  • USB Ports: USB4® Type-C®, USB 3.2 Gen 2x2, Gen 1, and USB 2.0.
  • Expansion Slots: PCIe 5.0 x16, PCIe 4.0 x4, PCIe 3.0 x2.
  • Audio: Realtek® ALC1220, 7.1-channel HD Audio.
  • Form Factor: ATX (30.5 cm x 24.4 cm).

GIGABYTE X870 AORUS ELITE motherboard:


CPU Support

  • AMD Socket AM5.
  • Compatible with AMD Ryzen™ 9000, 8000, and 7000 Series Processors.

Chipset

  • AMD X870.

Memory

  • DDR5 Support: Up to 8200 MT/s (OC).
  • 4 x DIMM slots, supporting up to 256 GB.
  • Dual-channel memory architecture.
  • AMD EXPO™ & XMP compatibility.

Graphics

  • Integrated Radeon™ Graphics (CPU dependent).
  • Ports:
    • 2 x USB4® Type-C® (DisplayPort 1.4, 4K@240 Hz).
    • 1 x HDMI 2.1 (4K@60 Hz).
    • 1 x Front HDMI 1.4 (1080p@30 Hz).
  • Quad-display support.

Audio

  • Realtek® ALC1220 CODEC.
  • High Definition Audio, supports 7.1-channel.

Networking

  • LAN: Realtek® 2.5GbE.
  • Wi-Fi: MediaTek/Realtek Wi-Fi 7, Bluetooth 5.4.
  • Wi-Fi 7 features require Windows 11.

Expansion Slots

  • PCIe Slots:
    • 1 x PCIe 5.0 x16 (CPU dependent bandwidth).
    • 1 x PCIe 4.0 x4.
    • 1 x PCIe 3.0 x2.

Storage

  • M.2 Slots:
    • 4 total: PCIe 5.0 (CPU-dependent), PCIe 4.0.
  • 4 x SATA 6Gb/s.
  • RAID 0, 1, 5, 10 support (RAID 5 for Ryzen™ 9000 only).

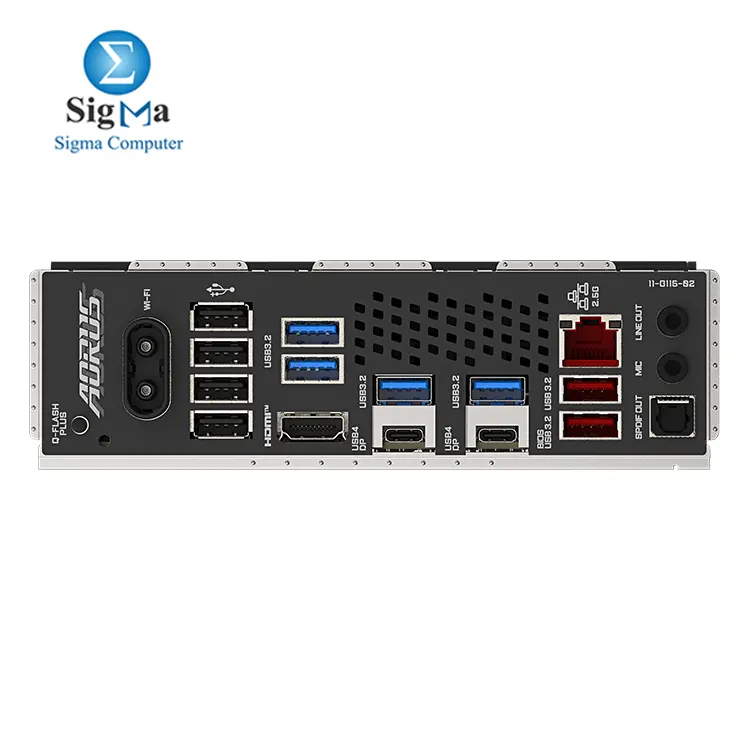

USB Ports

  • Rear:
    • 2 x USB4® Type-C®.
    • 2 x USB 3.2 Gen 2 Type-A.
    • 4 x USB 3.2 Gen 1.
    • 4 x USB 2.0.
  • Internal:
    • USB 3.2 Gen 2x2 Type-C® header.
    • 2 x USB 3.2 Gen 1.
    • 4 x USB 2.0.

Cooling and Monitoring

  • Multiple fan and water pump headers.
  • Temperature and noise detection.

Form Factor

  • ATX: 30.5 cm x 24.4 cm.
CategoryDesktop
SubcategoryMotherboard
BrandGigabyte
ModelX870
