MSI SPATIUM M570 PRO 2TB – PCIe 5.0 NVMe, PHISON E26, 12400MBs Read, 11800MBs Write, 4GB DRAM, 1400TBW | 13400 EGP

MSI SPATIUM M570 PRO 2TB PCIe 5.0 NVMe PHISON E26 12400MBs Read 11800MBs Write 4GB DRAM 1400TBW

13400 LE
Availability: In Stock only 2 item left
shipped by (sigma)
Point: 30

Brand : MSI brand

Seller : sigma

Viewed : 224 items

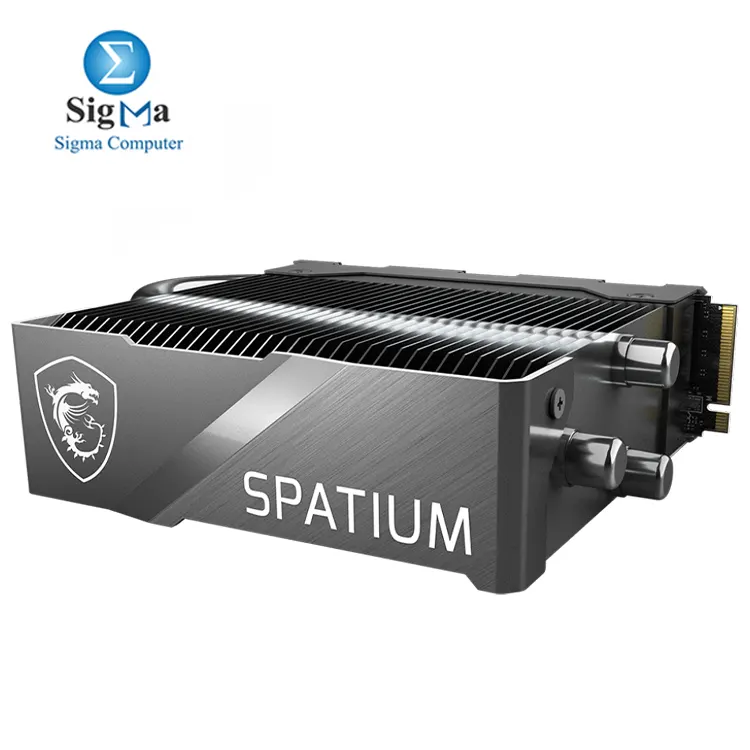

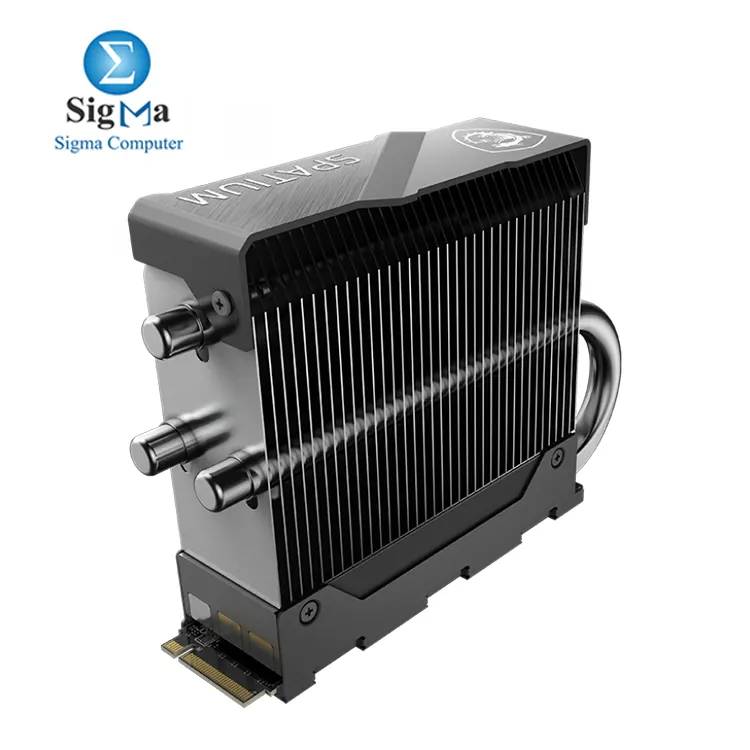

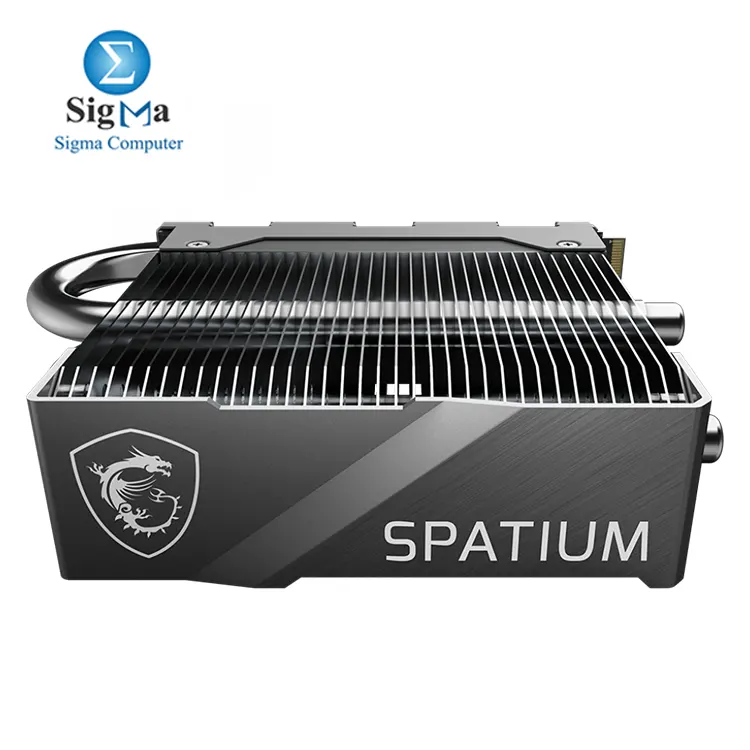

MSI SPATIUM M570 PRO 2TB – PCIe 5.0 NVMe M.2

  • Capacity: 2TB
  • Controller: PHISON E26
  • Flash Memory: 3D NAND
  • DRAM Cache: 4GB LPDDR4
  • Interface: PCIe Gen5x4, NVMe 2.0
  • Sequential Read Speed: Up to 12,400 MB/s
  • Sequential Write Speed: Up to 11,800 MB/s
  • TBW (Endurance): 1,400 TB
  • MTBF: Up to 1,600,000 hours
  • Power Consumption: Max 11.5W, Idle 144mW
  • Operating Temperature: 0°C – 70°C
  • Features: TRIM, SMART, LDPC ECC, AES256 Encryption

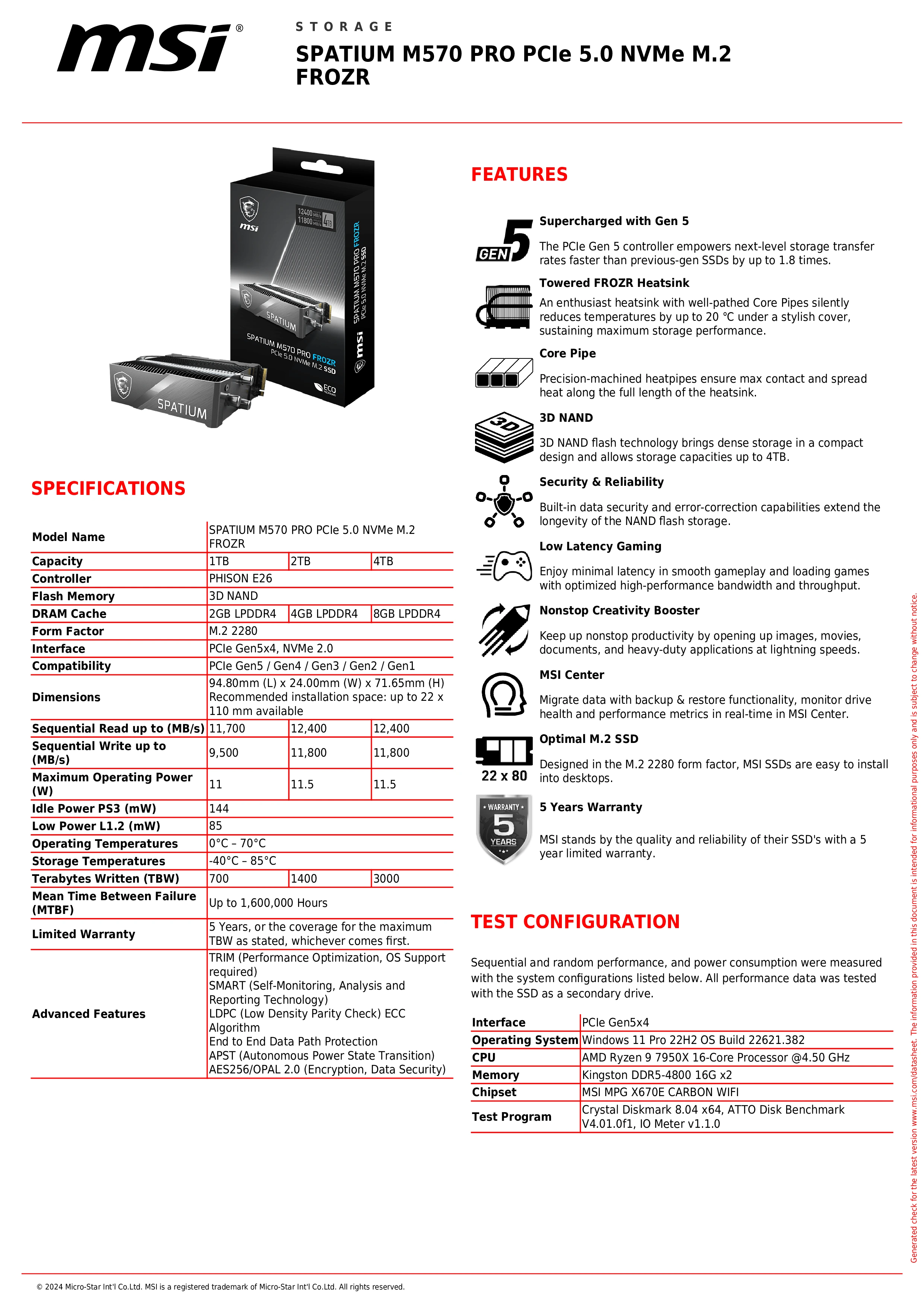

MSI SPATIUM M570 PRO PCIe 5.0 NVMe M.2 FROZR – 2TB

  • Model Name: SPATIUM M570 PRO PCIe 5.0 NVMe M.2 FROZR
  • Capacity: 2TB
  • Controller: PHISON E26
  • Flash Memory: 3D NAND
  • DRAM Cache: 4GB LPDDR4
  • Form Factor: M.2 2280
  • Interface: PCIe Gen5x4, NVMe 2.0
  • Compatibility: PCIe Gen5 / Gen4 / Gen3 / Gen2 / Gen1
  • Dimensions: 94.80mm (L) x 24.00mm (W) x 71.65mm (H)
  • Recommended Installation Space: Up to 22 x 110 mm available
  • Sequential Read Speed: Up to 12,400 MB/s
  • Sequential Write Speed: Up to 11,800 MB/s
  • Maximum Operating Power: 11.5W
  • Idle Power (PS3): 144mW
  • Low Power (L1.2): 85mW
  • Operating Temperatures: 0°C – 70°C
  • Storage Temperatures: -40°C – 85°C
  • Terabytes Written (TBW): 1,400 TB
  • MTBF (Mean Time Between Failure): Up to 1,600,000 hours
  • Advanced Features:
    • TRIM (Performance Optimization, OS Support required)
    • SMART (Self-Monitoring, Analysis, and Reporting Technology)
    • LDPC (Low-Density Parity Check) ECC Algorithm
    • End-to-End Data Path Protection
    • APST (Autonomous Power State Transition)
    • AES256/OPAL 2.0 (Encryption, Data Security)
CategoryStorage
SubcategoryM.2
BrandMSI
ModelSPATIUM M570 PRO
