ASUS PRIME Z790-P LGA1700 DDR5 up to 192GB PCIe 5.0 3x M.2 2.5G LAN USB-C Aura Sync RGB

ASUS PRIME Z790-P LGA1700 DDR5 up to 192GB PCIe 5.0 3x M.2 2.5G LAN USB-C Aura Sync RGB

reviews | Write a review

10800 LE

Availability: In Stock

shipped by (sigma)

Point: 20

Brand : ASUS

Model : PRIME Z790-P

Seller : sigma

Viewed : 228 items

ASUS PRIME Z790-P

Socket: LGA1700 (14th/13th/12th Gen Intel CPUs)

Chipset: Intel Z790

RAM: 4 x DDR5 up to 192GB - 7200MHz (OC)

GPU Outputs: HDMI 2.1 + DisplayPort 1.4 (4K@60Hz)

Storage: 3 x M.2 + 4 x SATA, PCIe 4.0 + RAID support

Slots: 1 x PCIe 5.0 x16, 3 x PCIe 4.0 x16 (x4)

LAN: 2.5Gb Ethernet

USB Ports:

Rear: USB-C 3.2 Gen2x2 + USB-A

Front: USB-C + headers

Audio: Realtek 7.1 HD with premium components

Form Factor: ATX

RGB: Aura Sync, Addressable Gen 2

Seller note

010084167000070

Fast delivery
2-5 Days
Online Support
Chat and Phone
order protection
secured information
promotion gift
special offers!
money back
return over 14 days

ASUS PRIME Z790-P - Specifications

Model:
ASUS PRIME Z790-P

CPU Support:

Intel® Socket LGA1700
Supports Intel® 14th, 13th, 12th Gen Core™, Pentium® Gold, and Celeron® Processors
Intel® Turbo Boost Technology 2.0
Intel® Turbo Boost Max Technology 3.0 (depending on CPU)

Chipset:

Intel® Z790 Chipset

Memory:

4 x DIMM, up to 192GB DDR5
DDR5 7200+(OC) to 4800MHz
Dual Channel Architecture
Intel® XMP support
ASUS OptiMem II

Graphics Output:

1 x DisplayPort 1.4 (Max. 4K@60Hz)
1 x HDMI 2.1 (Max. 4K@60Hz)
Graphics depend on CPU used

Expansion Slots:

1 x PCIe 5.0 x16
3 x PCIe 4.0 x16 (x4 mode)
1 x PCIe 3.0 x1

Storage:

3 x M.2 slots (PCIe 4.0 & SATA)
- M.2_1: PCIe 4.0 x4
- M.2_2: PCIe 4.0 x4
- M.2_3: PCIe 4.0 x4 & SATA
4 x SATA 6Gb/s ports
RAID 0/1/5/10 support

Networking:

1 x Realtek 2.5Gb Ethernet
1 x M.2 Key E slot for Wi-Fi module (sold separately)

USB Ports:
Rear I/O:

1 x USB 3.2 Gen 2x2 Type-C
1 x USB 3.2 Gen 2 Type-A
2 x USB 3.2 Gen 1 Type-A
4 x USB 2.0 Type-A

Front Panel Support:

1 x USB 3.2 Gen 2 Type-C header
2 x USB 3.2 Gen 1 headers (4 ports)
2 x USB 2.0 headers (4 ports)

Audio:

Realtek 7.1 Surround Sound HD Audio Codec
Premium audio capacitors
Audio shielding
Supports up to 24-bit/192kHz

Back Panel I/O:

1 x USB 3.2 Gen 2x2 Type-C
1 x USB 3.2 Gen 2 Type-A
2 x USB 3.2 Gen 1 Type-A
4 x USB 2.0 Type-A
1 x HDMI
1 x DisplayPort
1 x Realtek 2.5Gb LAN
3 x Audio jacks
1 x PS/2 Combo port
1 x M.2 Key E slot

Internal Headers:

3 x Addressable Gen 2 RGB
2 x Aura RGB
1 x Front Panel Audio (AAFP)
1 x COM port
1 x Thunderbolt (USB4) header
1 x S/PDIF Out
1 x Clear CMOS
1 x SPI TPM
1 x 20-5pin Front Panel
3 x Chassis Fan headers
1 x CPU Fan + 1 x CPU OPT + 1 x AIO Pump
1 x 24-pin ATX + 1 x 8-pin + 1 x 4-pin CPU Power

Special Features:

ASUS 5X Protection III
Q-LED Core / Q-DIMM / Q-Slot
ProCool Power Connector
Flexible M.2 Heatsinks
Armoury Crate (Aura Sync, Fan Xpert 4)
AI Suite 3 (TurboV EVO, DIGI+ VRM, PC Cleaner)

Software:

ASUS CPU-Z
Norton 360 (60 Days Trial)
WinRAR
ASUS UEFI BIOS (CrashFree BIOS 3, EZ Flash 3)

BIOS:

192Mb UEFI AMI BIOS

Operating System:

Windows 11 / 10 64-bit

Form Factor:

ATX (30.5cm x 23.4cm)

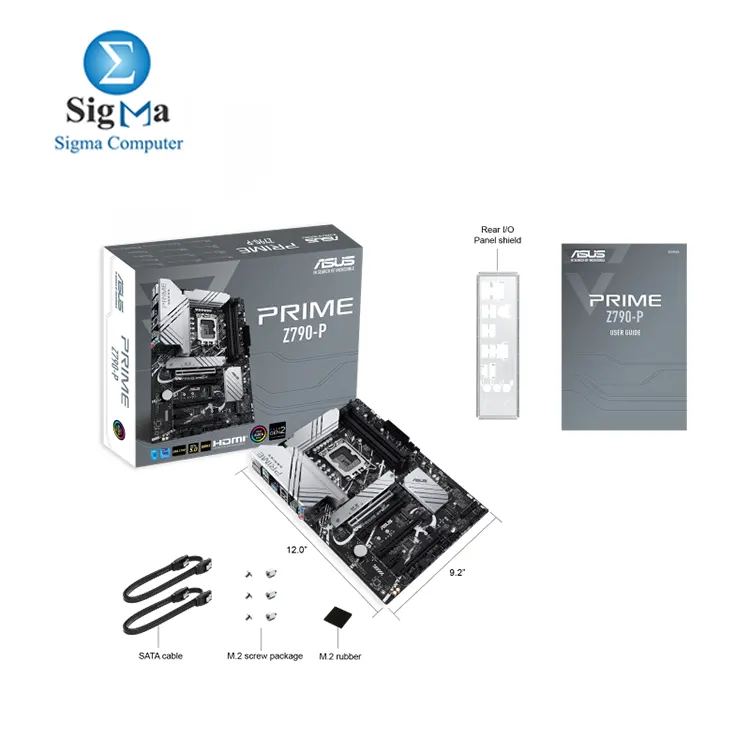

Accessories:

2 x SATA 6Gb/s cables
1 x I/O Shield
2 x M.2 screw packs
1 x M.2 Rubber package
1 x User Guide

Category	Desktop
Subcategory	Motherboard
Brand	ASUS
Model	PRIME Z790-P
