Lian Li PW-PCI-4-60W 600mm PCIe 4.0 x16 ultra-flexible riser cable with EMI shielding 16GT s speed and O11D EVO Upright GPU Bracket compatibility.

reviews | Write a review

4500 LE

Availability: In Stock only 1 item left

shipped by (sff4$vjs2hf5kg)

Point: 10

Brand : LIAN LI

Viewed : 170 items

Lian Li 600mm PCI-E 4.0 Riser Cable – Key Features

Length: 600mm PCIe 4.0 x16 riser cable

Bandwidth: Supports up to 16GT/s (double PCIe 3.0 speed)

Compatibility: Designed for O11D EVO Upright GPU Bracket (Model: O11DE-6X/W)

Routing Options: Bottom and side cable routing through second chamber

Flexibility: Ultra-flexible, durable materials with EMI shielding

Color Options: Available in Black (PW-PCI-4-60X) and White (PW-PCI-4-60W)

Performance: Minimal performance loss compared to direct GPU mounting

Warranty: 1 year

Seller note

001357000000004

Fast delivery
2-5 Days
Online Support
Chat and Phone
order protection
secured information
promotion gift
special offers!
money back
return over 14 days

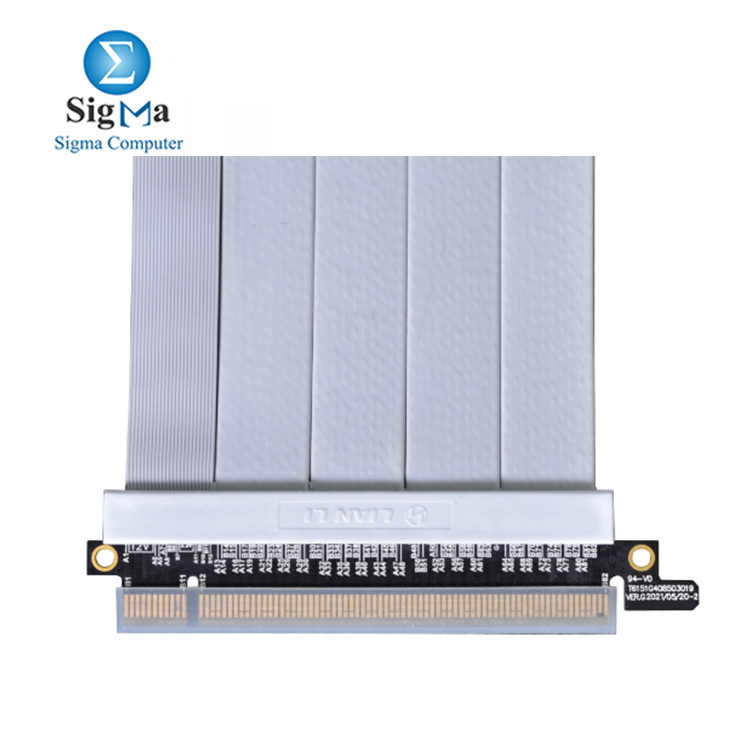

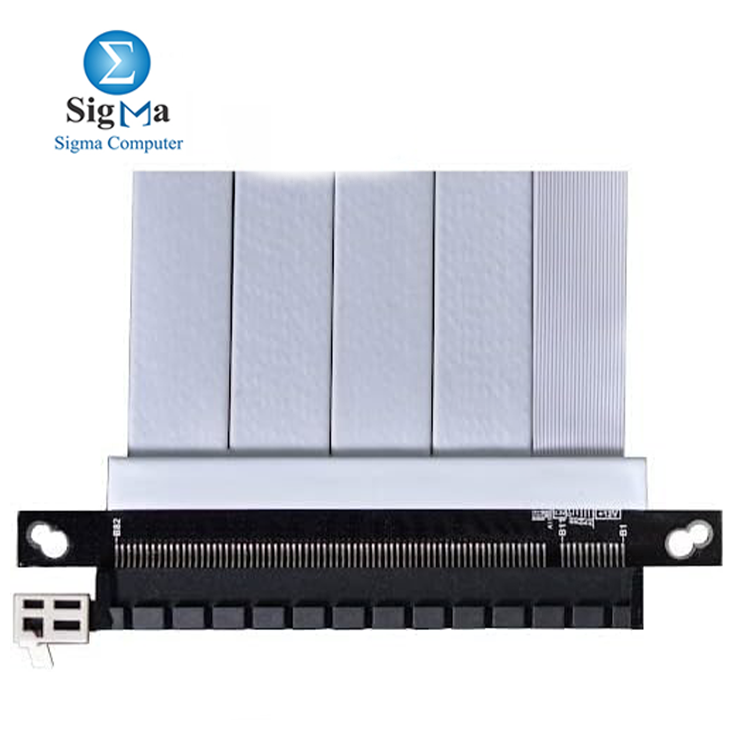

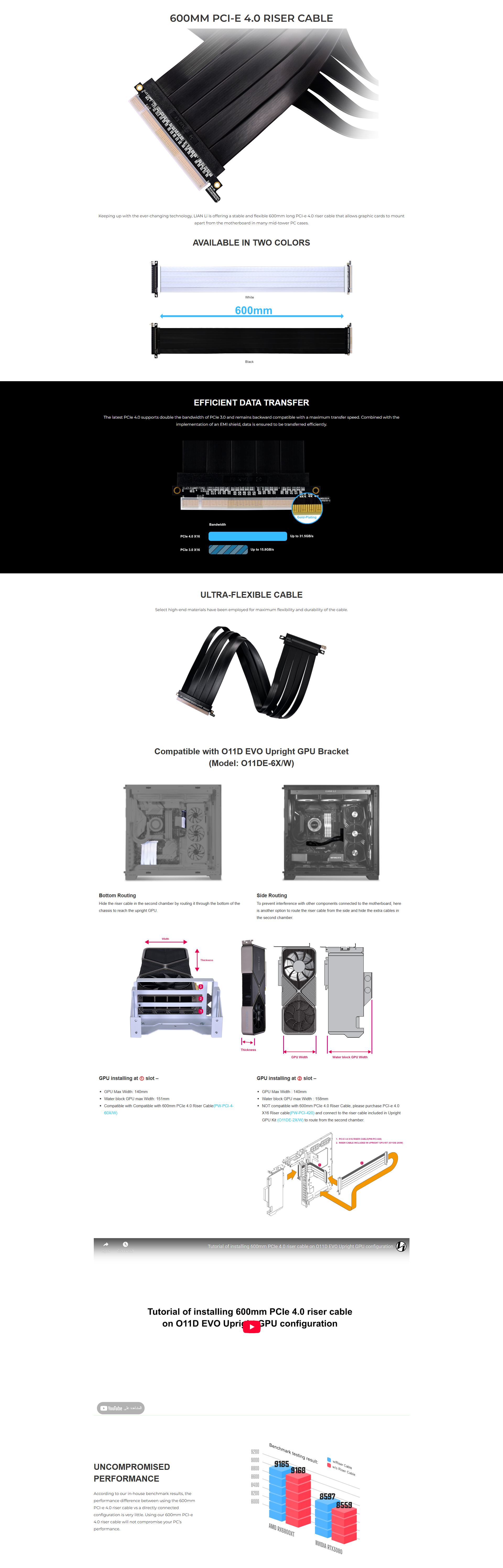

600MM PCI-E 4.0 RISER CABLE

Keeping up with the ever-changing technology, LIAN Li is offering a stable and flexible 600mm long PCI-e 4.0 riser cable that allows graphic cards to mount apart from the motherboard in many mid-tower PC cases.

AVAILABLE IN TWO COLORS

EFFICIENT DATA TRANSFER
The latest PCIe 4.0 supports double the bandwidth of PCIe 3.0 and remains backward compatible with a maximum transfer speed. Combined with the implementation of an EMI shield, data is ensured to be transferred efficiently.

ULTRA-FLEXIBLE CABLE
Select high-end materials have been employed for maximum flexibility and durability of the cable.

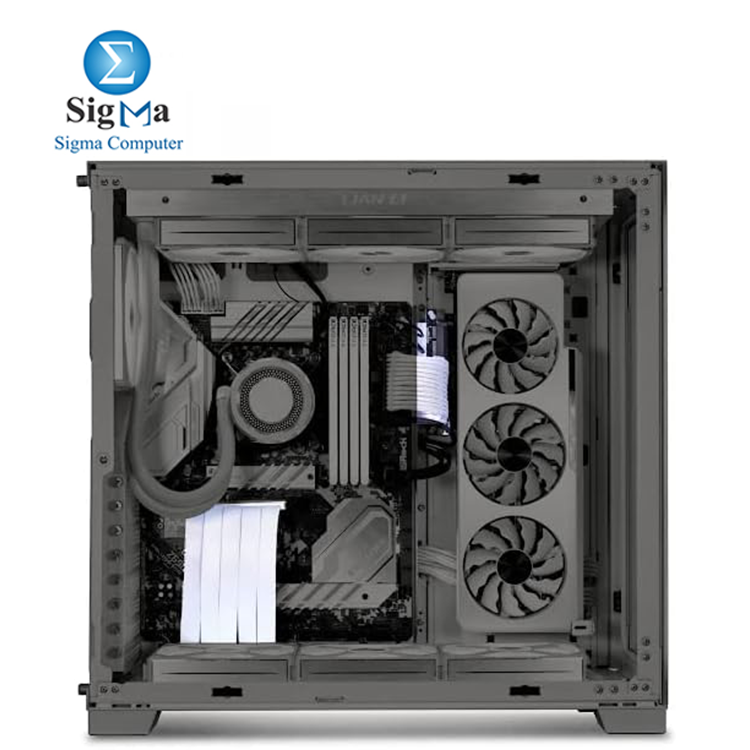

Compatible with O11D EVO Upright GPU Bracket (Model: O11DE-6X/W)

Bottom Routing
Hide the riser cable in the second chamber by routing it through the bottom of the chassis to reach the upright GPU.

Side Routing
To prevent interference with other components connected to the motherboard, here is another option to route the riser cable from the side and hide the extra cables in the second chamber.

GPU installing at ① slot –
GPU Max Width: 140mm
Water block GPU Max Width: 151mm
Compatible with 600mm PCIe 4.0 Riser Cable (PW-PCI-4-60X/W)

GPU installing at ② slot –
GPU Max Width: 140mm
Water block GPU Max Width: 158mm
NOT compatible with 600mm PCIe 4.0 Riser Cable, please purchase PCI-e 4.0 X16 Riser cable (PW-PCI-420) and connect to the riser cable included in Upright GPU Kit (O11DE-2X/W) to route from the second chamber.

UNCOMPROMISED PERFORMANCE
According to our in-house benchmark results, the performance difference between using the 600mm PCI-e 4.0 riser cable vs a directly connected configuration is very little. Using our 600mm PCI-e 4.0 riser cable will not compromise your PC’s performance.

SPECIFICATIONS
MODEL NAME: 600mm PCI-e 4.0 Riser Cable
MODEL NO.: PW-PCI-4-60X / PW-PCI-4-60W
COLOR: Black / White
INTERFACE: PCI-e x 16
CABLE LENGTH: 600 mm
WARRANTY: 1 year
