LIAN LI EDGE GOLD 850W L-shape design 80 PLUS Gold fully modular braided cables PCIe 5.1 ready detachable dust filter silent 120mm fan 10-year warranty.

reviews | Write a review

5500 LE

Availability: In Stock only 1 item left

shipped by (sff4$vjs2hf5kg)

Point: 15

Brand : LIAN LI

Model : EG0850G

Seller : sff4$vjs2hf5kg

Viewed : 188 items

LIAN LI EDGE GOLD 850W Key Specs:

Unique L-shape design for dual chamber cases (e.g., LIAN LI O11)

80 PLUS Gold and Cybenetics Gold certified for high energy efficiency

Fully modular with braided cables and pre-installed cable combs for clean builds

PCIe 5.1 ready with high-quality 12V-2×6 alloy copper soldered terminals

Detachable magnetic dust filter for easy cleaning and better airflow

Built with German industrial-grade EPCOS capacitors for durability

Silent 120mm FDB fan with fanless mode at low loads

Comprehensive protections: OCP, OVP, SCP, OTP, OPP, UVP, SIP, NLO

Connectors include motherboard, CPU (8-pin + 4+4 pin), GPU (6+2 pin), SATA, peripheral, and 12V-2×6 power

Dimensions: 182 x 86 x 150 mm

Warranty: 10 years

Seller note

001058836000004

Fast delivery
2-5 Days
Online Support
Chat and Phone
order protection
secured information
promotion gift
special offers!
money back
return over 14 days

LIAN LI EDGE GOLD 850W

L-shape design tailored for dual chamber cases
80 PLUS Gold efficiency
PCIe 5.1 ready with in-house R&D 12V-2×6 alloy copper soldered terminals
Detachable USB hub with 4 internal USB 2.0 headers and 6 PWM headers
Removable magnetic fan dust filter
Built with German top-end, industrial-grade EPCOS capacitors
Fully modular braided-texture cables with pre-installed cable combs on MB/CPU/GPU connectors

Category: Power supply
Tags: ATX PSU, braided-texture cables, Dual Chamber Cases, fan hub, LIAN LI PSU, PCIe gen5 connector, PWM hub, removable dust filter, USB Hub

Wattage: 850W
Color options: Black / White (USB hub not included)

Features

The EDGE Gold 850W PSU is designed specifically for dual chamber cases like the LIAN LI O11 series, featuring a unique L-shape design that orients connectors outward for easier cable management and a cleaner build.

It is certified 80 PLUS GOLD and Cybenetics GOLD, ensuring high energy efficiency, reduced power consumption, and lower heat output.

The removable magnetic dust filter allows for easy cleaning, ensuring dust-free operation and optimal airflow with quiet fan performance.

The PSU includes longer fully modular cables with a braided texture and pre-installed cable combs on motherboard, CPU, and GPU connectors to keep your build neat and organized.

High-quality industrial-grade EPCOS capacitors from Germany (or equivalent Japanese capacitors) provide robust performance and high temperature tolerance.

Comprehensive protection features include OCP, OVP, SCP, OTP, OPP, UVP, SIP, NLO, and inrush current limiter, guaranteeing stable and safe power delivery.

The 120mm FDB fan offers silent and efficient cooling, with a fanless mode that keeps the fan off during low loads for quiet operation.

Backed by a 10-year warranty for long-term reliability and peace of mind.

Technical Specs

Model: EG0850G
Dimensions: 182mm (D) x 86mm (W) x 150mm (H)
Material: Steel
Form Factor: ATX 3.1
Max Power Output: 850W
Combined +3.3V & +5V: 120W
Combined +12V: 849W
Input Voltage: 100-240Vac
Input Frequency: 50-60Hz
Efficiency: Up to 90.71%
Fan Speed: Up to 2400 RPM
Fan Noise Level: 39.3 dBA

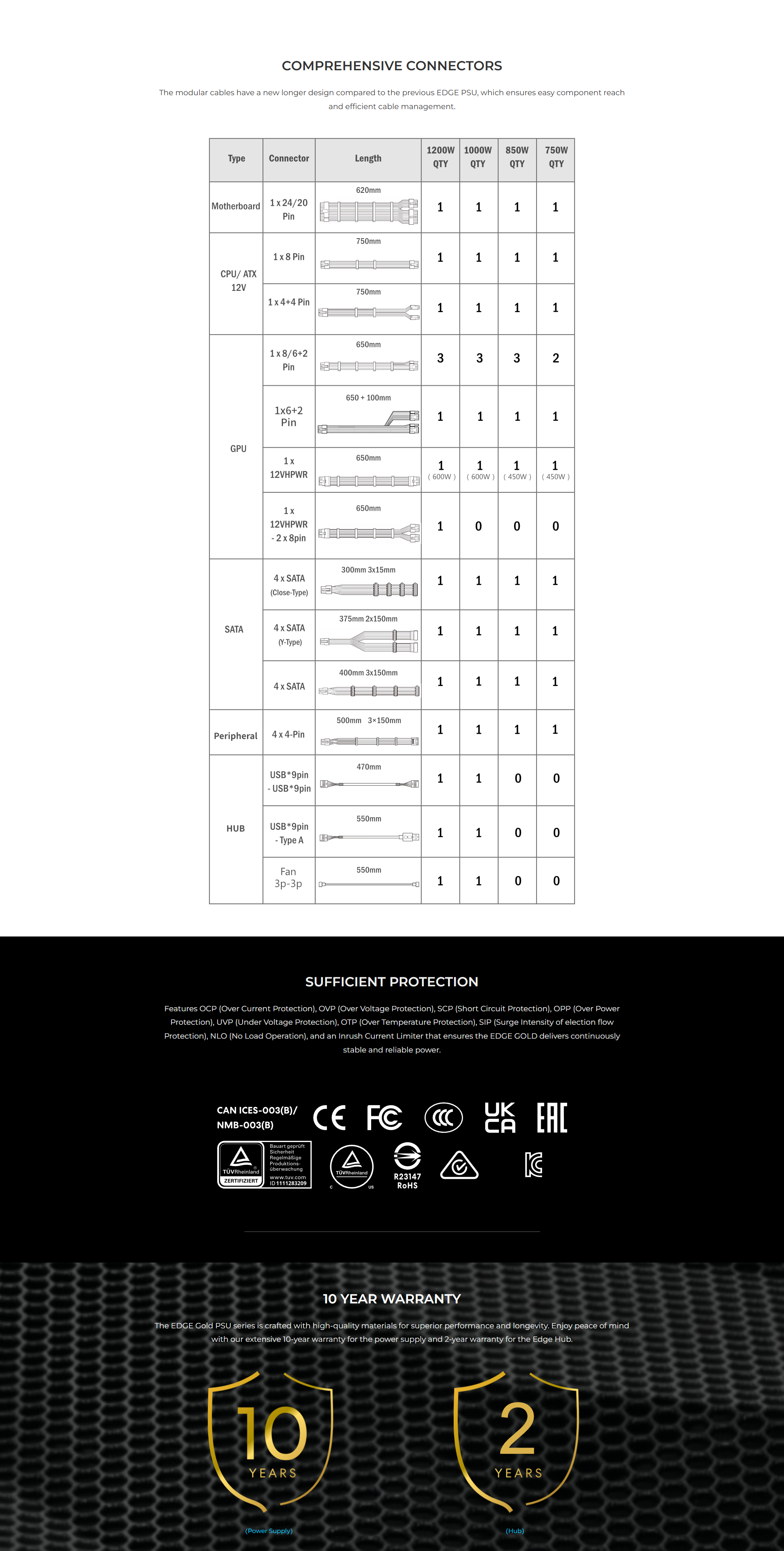

Connectors

1 x 24/20-pin motherboard connector (620mm)
1 x 8-pin CPU/ATX 12V connector (750mm)
1 x 4+4-pin CPU connector (750mm)
1 x 6+2-pin GPU connector (650mm + 100mm)
SATA connectors and Y-type SATA connectors with various lengths
4 x 4-pin Peripheral connectors (500mm + extensions)
1 x 12V – 2×6 450W connector (650mm)
