GIGABYTE B850M DS3H DDR5 – AM5, 8+2+2 Phases, PCIe 5.0, M.2 Gen5, 2.5G LAN, HDMI & DP, USB-C, Q-Flash Plus | 8700 EGP
GIGABYTE B850M DS3H DDR5 AM5 8 2 2 Phases PCIe 5.0 M.2 Gen5 2.5G LAN HDMI DP USB-C Q-Flash Plus
GIGABYTE B850M DS3H DDR5 AM5 8 2 2 Phases PCIe 5.0 M.2 Gen5 2.5G LAN HDMI DP USB-C Q-Flash Plus GIGABYTE B850M DS3H DDR5 AM5 8 2 2 Phases PCIe 5.0 M.2 Gen5 2.5G LAN HDMI DP USB-C Q-Flash Plus GIGABYTE B850M DS3H DDR5 AM5 8 2 2 Phases PCIe 5.0 M.2 Gen5 2.5G LAN HDMI DP USB-C Q-Flash Plus GIGABYTE B850M DS3H DDR5 AM5 8 2 2 Phases PCIe 5.0 M.2 Gen5 2.5G LAN HDMI DP USB-C Q-Flash Plus

GIGABYTE B850M DS3H DDR5 AM5 8 2 2 Phases PCIe 5.0 M.2 Gen5 2.5G LAN HDMI DP USB-C Q-Flash Plus

reviews | Write a review
8700 LE
Availability: In Stock
shipped by (sigma)
Point: 20

Brand : Gigabyte brand

Model : B850M DS3H

Seller : sigma

Viewed : 247 items

  • Socket: AM5 – Ryzen 9000/8000/7000

  • RAM: 4× DDR5, up to 256GB, EXPO & XMP

  • VRM: 8+2+2 phases digital

  • PCIe: 1× PCIe 5.0 x16, 1× PCIe 3.0 x4

  • Storage: 2× M.2 (1× PCIe 5.0), 4× SATA

  • LAN: 2.5GbE

  • Display: 2× DP, 1× HDMI

  • Audio: 7.1ch HD Audio

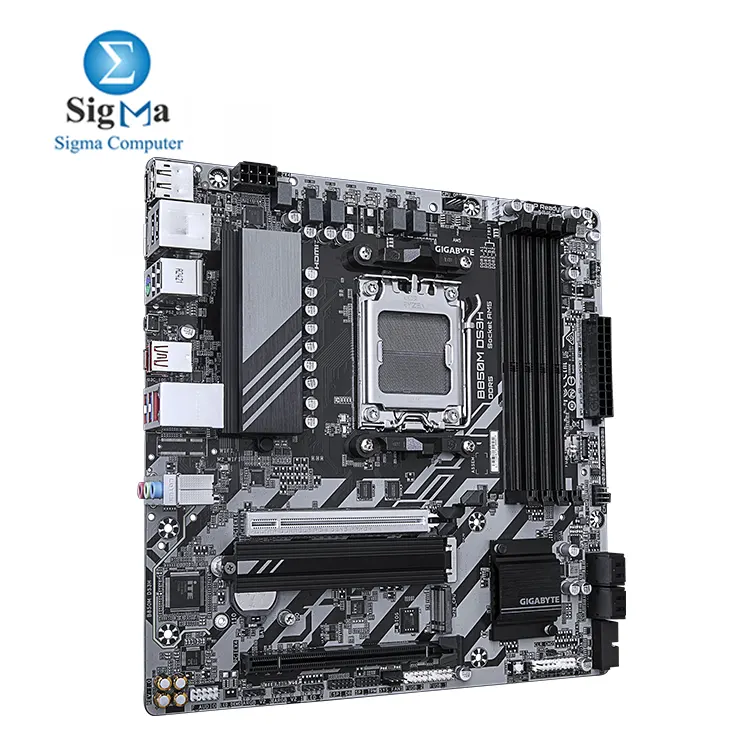

GIGABYTE B850M DS3H

X3D Turbo Mode: Unleash new era gaming performance
AMD Socket AM5: Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
Digital Twin 8+2+2 Phases VRM Solution
Dual Channel DDR5: 4×DIMMs with AMD EXPO™ Memory Module Support
EZ-Latch: PCIe x16 Slot with Quick Release Design
M.2 EZ-Latch Plus: Screwless Installation for M.2 SSDs
Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and Software
Ultra-Fast Storage: 2×M.2 slots, including 1×PCIe 5.0 slot
M.2 Thermal Guard: To Ensure M.2 SSD Performance
Fast Networking: 2.5GbE LAN
Extended Connectivity: 2×DP, HDMI

CPU
AMD Socket AM5, support for:

  • AMD Ryzen™ 9000 Series Processors

  • AMD Ryzen™ 8000 Series Processors

  • AMD Ryzen™ 7000 Series Processors
    (Refer to GIGABYTE's website for the latest CPU support list)

Chipset
AMD B850

Memory

  • Supports DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s

  • 4×DDR5 DIMM sockets, up to 256 GB (64 GB per DIMM)

  • Dual channel memory architecture

  • Supports non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 modules

  • Supports AMD EXPO™ and Intel XMP profiles

Onboard Graphics
Integrated Graphics with AMD Radeon™ support:

  • 1×HDMI port (4096x2160@60Hz, HDMI 2.1, HDCP 2.3, HDR)

  • 2×DisplayPort (3840x2160@144Hz, DP 1.4)

  • Triple-display support (depending on CPU)

Audio

  • Realtek® Audio CODEC

  • High Definition Audio

  • Supports 2/4/5.1/7.1 channels (configurable via software)

LAN

  • Realtek® 2.5GbE LAN chip (2.5 Gbps / 1 Gbps / 100 Mbps)

Expansion Slots

  • 1×PCIe x16 (CPU):

    • Ryzen™ 9000/7000: PCIe 5.0 x16

    • Ryzen™ 8000-Phoenix 1: PCIe 4.0 x8

    • Ryzen™ 8000-Phoenix 2: PCIe 4.0 x4

    • Supports GPU or NVMe SSD only

  • 1×PCIe x16 (Chipset): PCIe 3.0 x4

Storage Interface

  • 1×M.2 (M2A_CPU):

    • Supports 25110/22110/2580/2280 SSDs

    • PCIe 5.0 x4/x2 (9000/7000)

    • PCIe 4.0 x4/x2 (8000)

  • 1×M.2 (M2B_CPU):

    • Same form factors

    • PCIe 4.0 x4/x2 (9000/7000/8000 Phoenix 1)

    • PCIe 4.0 x2 (8000 Phoenix 2)

  • 4×SATA 6Gb/s

  • NVMe RAID 0/1/5/10 (RAID 5 for Ryzen™ 9000 only)

  • SATA RAID 0/1/10

USB Ports

  • CPU:

    • 1×USB 3.2 Gen 2 Type-C® (Rear)

    • 1×USB 3.2 Gen 2 Type-A (Red, Rear)

    • 4×USB 2.0 (Rear)

  • Chipset:

    • 1×USB 3.2 Gen 2 Type-C® (Front Panel Header)

    • 4×USB 3.2 Gen 1 (2 Rear, 2 Internal)

    • 4×USB 2.0 (Internal)

Internal I/O

  • 1×24-pin ATX Power

  • 1×8-pin ATX 12V

  • 1×CPU Fan Header

  • 1×CPU Fan/Water Pump Header

  • 1×System Fan Header

  • 1×System Fan/Water Pump Header

  • 3×ARGB Gen2 Headers

  • 1×RGB LED Header

  • 2×M.2 Slots

  • 4×SATA

  • 1×Front Panel Header

  • 1×Front Audio Header

  • 1×USB 3.2 Gen 1 Header

  • 1×USB 3.2 Gen 2 Type-C® Header

  • 2×USB 2.0 Headers

  • 1×TPM Header

  • 1×Reset Button

  • 1×Clear CMOS Jumper

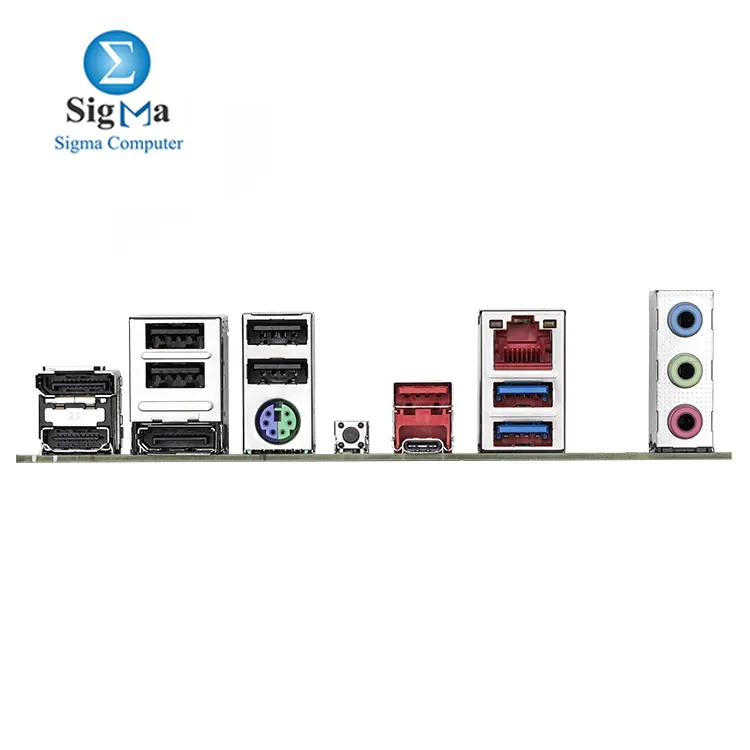

Back Panel I/O

  • 1×HDMI

  • 2×DisplayPort

  • 1×Q-Flash Plus Button

  • 1×PS/2 Keyboard/Mouse Port

  • 1×USB 3.2 Gen 2 Type-A (Red)

  • 1×USB 3.2 Gen 2 Type-C®

  • 2×USB 3.2 Gen 1

  • 4×USB 2.0

  • 1×RJ-45 LAN Port

  • 3×Audio Jacks

I/O Controller

  • iTE® Controller

Monitoring

  • Voltage, Temperature, Fan Speed, Water Flow

  • Fan/Pump Fail Warning

  • Fan Speed Control (depends on fan)

BIOS

  • 256Mbit Flash

  • AMI UEFI BIOS

  • PnP 1.0a, DMI 2.7, WfM 2.0, SMBIOS 2.7, ACPI 5.0

Unique Features

  • GIGABYTE Control Center (GCC)

  • Q-Flash & Q-Flash Plus

  • Smart Backup

Bundled Software

  • Norton® Internet Security (OEM)

  • LAN Bandwidth Management Software

OS Support

  • Windows 11 64-bit

  • Windows 10 64-bit

Form Factor

  • Micro ATX (24.4 cm x 24.4 cm)

CategoryDesktop
SubcategoryMotherboard
BrandGigabyte
ModelB850M DS3H
