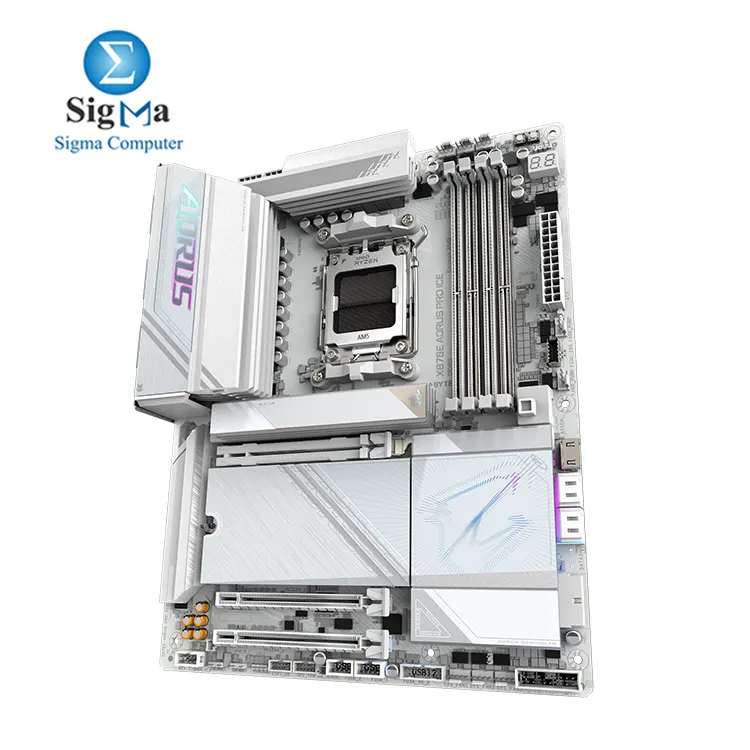

GIGABYTE X870E AORUS PRO ICE
-
AMD Socket AM5: Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
-
Digital Twin 16+2+2 Phases VRM Solution
-
Dual Channel DDR5: 4*DIMMs with AMD EXPO™ Memory Module Support
-
WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
-
EZ-Latch Plus: PCIe and M.2 slots with Quick Release & Screwless Design
-
EZ-Latch Click: M.2 heatsinks with screwless design
-
Sensor Panel Link: Onboard video port for hassle-free in-chassis panel setup
-
Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and Software
-
New Power Monitor in HWinfo for real-time monitoring on CPU power phases
-
Ultra-Fast Storage: 4M.2 slots, including 3 PCIe 5.0 x4
-
Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard L
-
Fast Networking: 2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
-
Extended Connectivity: Dual USB4 Type-C with DP-Alt, HDMI
-
Reliable Audio: Realtek ALC1220 HD Audio & Audiophile Grade Capacitors
-
Ultra Durable PCIe Armor: The metal back plate of PCIe x16 slot for enhanced durability
-
PCIe UD Slot X: PCIe 5.0 x16 slot with 10X strength for graphics card
CPU
AMD Socket AM5, support for:
-
AMD Ryzen™ 9000 Series Processors
-
AMD Ryzen™ 8000 Series Processors
-
AMD Ryzen™ 7000 Series Processors
(Go to GIGABYTE's website for the latest CPU support list.)
Chipset
AMD X870E
Memory
-
Support for DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
-
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)
-
Dual channel memory architecture
-
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
-
Support for AMD EXPO™ and Intel® XMP memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules. Please refer to "Memory Support List" on GIGABYTE's website for more information.)
Onboard Graphics
Integrated Graphics Processor with AMD Radeon™ Graphics support + ASMedia USB4® Controller:
-
2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs up to 3840x2160@240 Hz (DisplayPort 1.4, HDR)
-
1 x HDMI port, supporting up to 4096x2160@60 Hz (HDMI 2.1, HDCP 2.3, HDR)
-
1 x front HDMI port, up to 1920x1080@30 Hz (HDMI 1.4)
(Graphics specifications may vary depending on CPU support.)
Audio
LAN
Wireless Communication Module
-
Qualcomm® Wi-Fi 7 QCNCM865
-
802.11a/b/g/n/ac/ax/be, supporting 2.4/5/6 GHz bands
-
Bluetooth 5.3
-
Support for 11be 320MHz standard
*Wi-Fi 7 requires Windows 11 SV3. No driver support for Windows 10.
**6GHz Wi-Fi 7 availability may vary by country.
Expansion Slots
1 x PCIe x16 slot (from CPU):
-
Ryzen™ 9000/7000: PCIe 5.0 x16
-
Ryzen™ 8000 Phoenix 1: PCIe 4.0 x8
-
Ryzen™ 8000 Phoenix 2: PCIe 4.0 x4
Chipset:
-
1 x PCIe x16 (PCIe 4.0, x4 mode)
-
1 x PCIe x16 (PCIe 3.0, x4 mode)
Storage Interface
-
1 x M.2 (M2A_CPU): PCIe 5.0 x4/x2 (Ryzen 9000/7000), PCIe 4.0 (Ryzen 8000)
-
2 x M.2 (M2B_CPU, M2C_CPU): PCIe 5.0 x4/x2 (Ryzen 9000/7000 only)
-
1 x M.2 (M2D_SB): PCIe 4.0 x4/x2
-
4 x SATA 6Gb/s
-
RAID 0/1/5/10 for NVMe SSDs (RAID 5 with Ryzen 9000 only)
-
RAID 0/1/10 for SATA devices
USB
CPU + ASMedia USB4 Controller:
-
2 x USB4 Type-C (rear)
CPU:
-
1 x USB 3.2 Gen 2 Type-A (red, rear)
Chipset:
-
1 x USB 3.2 Gen 2x2 Type-C (internal header)
-
2 x USB 3.2 Gen 2 Type-A (red, rear)
-
8 x USB 3.2 Gen 1 (4 rear, 4 internal)
-
6 x USB 2.0 (2 rear, 4 internal)
Internal I/O Connectors
-
1 x 24-pin ATX power
-
2 x 8-pin ATX 12V power
-
1 x CPU fan
-
1 x CPU fan/water pump
-
4 x system fans
-
2 x system fan/water pump
-
3 x addressable RGB Gen2 headers
-
1 x RGB LED header
-
4 x SATA
-
4 x M.2 sockets
-
1 x front panel
-
1 x front panel audio
-
1 x USB 3.2 Gen 2x2 Type-C header
-
2 x USB 3.2 Gen 1 headers
-
2 x USB 2.0 headers
-
1 x noise detection header
-
1 x HDMI port
-
1 x TPM header
-
1 x power button
-
1 x reset button
-
2 x temperature sensor headers
-
1 x reset jumper
-
1 x Clear CMOS jumper

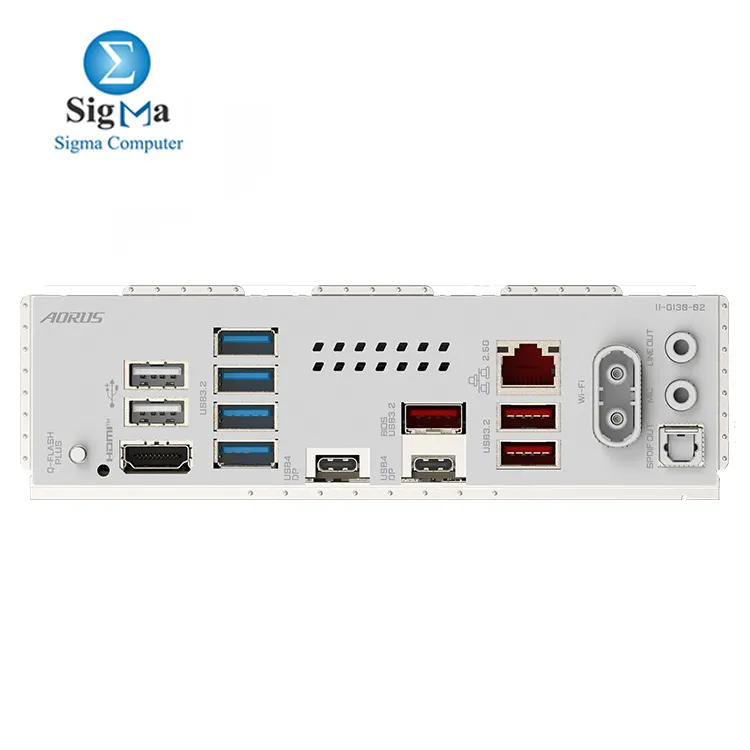

Back Panel Connectors
I/O Controller
iTE® I/O Controller Chip
H/W Monitoring
-
Voltage, temperature, fan speed, water flow detection
-
Fan fail warning
-
Fan/pump speed control (depending on model)
-
Noise detection
BIOS
-
1 x 256 Mbit flash
-
AMI UEFI BIOS
-
PnP 1.0a, DMI 2.7, WfM 2.0, SMBIOS 2.7, ACPI 5.0
Unique Features
Bundled Software
Operating System
Form Factor
ATX Form Factor: 30.5cm x 24.4cm
| Category | Desktop |
| Subcategory | Motherboard |
| Brand | Gigabyte |
| Model | X870E AORUS PRO ICE |
