GIGABYTE B850 GAMING WIFI6 AMD AM5 socket DDR5 up to 8200MT s PCIe 5.0 x16 Wi-Fi 6 3x M.2 slots PCIe 5.0 Realtek GbE LAN HDMI 2.1 ATX form factor.

reviews | Write a review

9600 LE

Availability: In Stock only 2 item left

shipped by (sigma)

Point: 20

Seller : sigma

Viewed : 390 items

GIGABYTE B850 GAMING WIFI6 – Key Specifications

CPU Support: AMD Socket AM5, Ryzen™ 9000 / 8000 / 7000 Series

Chipset: AMD B850

Memory: 4 x DDR5 DIMMs, up to 256GB, OC up to 8200MT/s, supports AMD EXPO & XMP

Graphics Outputs: 1 x DisplayPort 1.4 (4K@144Hz), 1 x HDMI 2.1 (4K@60Hz)

Storage: 3 x M.2 slots (including PCIe 5.0 x4), 4 x SATA 6Gb/s, RAID 0/1/5/10 support

Networking: Realtek GbE LAN (1 Gbps), Wi-Fi 6 (802.11ax), Bluetooth 5.3

Expansion Slots: 1 x PCIe 5.0 x16 (CPU), 3 x PCIe 3.0 x1

USB Ports: Multiple USB 3.2 Gen 2/Gen 1 Type-A & Type-C, USB 2.0

Audio: Realtek HD Audio, up to 7.1 channels

Cooling: VRM Thermal Armor, multiple fan headers, RGB headers

Form Factor: ATX (30.5 x 24.4 cm)

BIOS: AMI UEFI BIOS with Q-Flash and Q-Flash Plus support

Seller note

010062152000075

Fast delivery
2-5 Days
Online Support
Chat and Phone
order protection
secured information
promotion gift
special offers!
money back
return over 14 days

GIGABYTE B850 GAMING WIFI6

X3D Turbo Mode: Unleash new era gaming performance
DDR5 OC: Up to 8200MT/s
AMD Socket AM5: Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
Digital VRM: 6+2+2 phases VRM solution
Dual Channel DDR5: 4 DIMMs with AMD EXPO™ Memory Module Support
WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
PCIe EZ-Latch Plus: PCIe slots with Quick Release Design
Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and software
Ultra-Fast Storage: 3 M.2 slots, including PCIe 5.0 x4 slot
Efficient Thermal: VRM Thermal Armor Advanced
Fast Networking: GbE LAN & Wi-Fi 6 802.11ax
Extended Connectivity: HDMI, DisplayPort

CPU

AMD Socket AM5, supports:
- AMD Ryzen™ 9000 Series Processors
- AMD Ryzen™ 8000 Series Processors
- AMD Ryzen™ 7000 Series Processors
(Check GIGABYTE's website for latest CPU support list)

Chipset

AMD B850

Memory

Support DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules
4 x DDR5 DIMM sockets, up to 256 GB (64 GB single DIMM capacity)
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 modules
Support AMD EXPO™ and XMP memory modules
(CPU and memory config may affect support; see GIGABYTE's Memory Support List)

Onboard Graphics

Integrated AMD Radeon™ Graphics support:
- 1 x DisplayPort, max resolution 3840x2160@144Hz (DP 1.4, HDR supported)
- 1 x HDMI port, max resolution 4096x2160@60Hz (HDMI 2.1, HDCP 2.3, HDR supported)
(Graphics depend on CPU support)

Audio

Realtek® Audio CODEC
High Definition Audio
Supports 2/4/5.1/7.1 channel configurations
Audio jack functions configurable via software

LAN

Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

Wireless Communication

Realtek® Wi-Fi 6 RTL8851BE
Supports Wi-Fi a/b/g/n/ac/ax, 2.4/5 GHz bands
Bluetooth 5.3
Supports 11ax 80MHz wireless standard
(Actual rates depend on environment)

Expansion Slots

1 x PCIe x16 slot (PCIEX16), integrated in CPU:
- Ryzen 9000/7000 support PCIe 5.0 x16
- Ryzen 8000 Phoenix 1 supports PCIe 4.0 x8
- Ryzen 8000 Phoenix 2 supports PCIe 4.0 x4
3 x PCIe x16 slots (PCIe 3.0 running at x1)

Storage Interface

1 x M.2 (M2A_CPU) Socket 3, supports 22110/2280 SSDs:
- Ryzen 9000/7000: PCIe 5.0 x4/x2
- Ryzen 8000 Phoenix 1 & 2: PCIe 4.0 x4/x2 or x2
1 x M.2 (M2B_CPU) Socket 3, supports 22110/2280 SSDs:
- Ryzen 9000/7000: PCIe 4.0 x4/x2
- Ryzen 8000 Phoenix 1 & 2: PCIe 4.0 x4/x2 or x2
1 x M.2 (M2C_SB) Socket 3, chipset integrated, PCIe 4.0 x2
4 x SATA 6Gb/s connectors
RAID 0,1,5,10 support for NVMe SSDs (RAID 5 only with Ryzen 9000)
RAID 0,1,10 support for SATA devices

USB Ports

CPU:
- 1 x USB Type-C® (USB 3.2 Gen 1) back panel
- 2 x USB 3.2 Gen 2 Type-A (red) back panel
Chipset:
- 1 x USB Type-C® (USB 3.2 Gen 1) internal header
- 4 x USB 3.2 Gen 1 (2 back panel, 2 internal header)
- 4 x USB 2.0/1.1 ports on back panel
Additional:
- 4 x USB 2.0/1.1 internal headers

Internal I/O Connectors

1 x 24-pin ATX main power
1 x 8-pin ATX 12V power
1 x 4-pin ATX 12V power
1 x CPU fan header
1 x CPU fan/water pump header
3 x system fan headers
1 x system fan/water pump header
3 x addressable RGB Gen2 LED headers
1 x RGB LED header
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header (USB 3.2 Gen 1)
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (for TPM modules)
1 x reset jumper
1 x Clear CMOS jumper

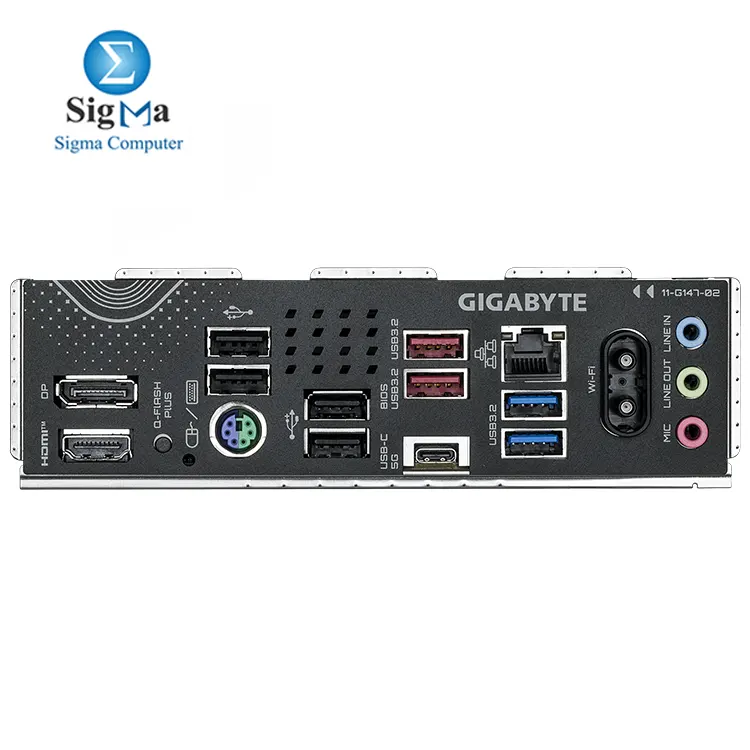

Back Panel Connectors

1 x DisplayPort
1 x HDMI port
1 x Q-Flash Plus button
4 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
2 x USB 3.2 Gen 2 Type-A (red)
1 x USB Type-C® (USB 3.2 Gen 1)
1 x RJ-45 Ethernet port
2 x USB 3.2 Gen 1 ports
2 x antenna connectors (2T2R)
3 x audio jacks

I/O Controller

iTE® I/O Controller Chip

Hardware Monitoring

Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control (dependent on fan/pump installed)

BIOS

1 x 256 Mbit flash
Licensed AMI UEFI BIOS
Supports PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

Support for GIGABYTE Control Center (GCC)
Support for Q-Flash, Q-Flash Plus
Support for Smart Backup

Bundled Software

Norton® Internet Security (OEM version)
LAN bandwidth management software

Operating System Support

Windows 11 64-bit
Windows 10 64-bit

Form Factor

ATX Form Factor
Dimensions: 30.5cm x 24.4cm

Category	Desktop
Subcategory	Motherboard
Brand	Gigabyte
Model	B850 GAMING WF6
