Gigabyte B650M GAMING WIFI AMD AM5 socket for Ryzen 7000 8000 9000 DDR5 up to 128GB PCIe 4.0 M.2 2.5GbE LAN Wi-Fi 802.11ac HDMI 2.1 Micro ATX.

reviews | Write a review

6500 LE

Availability: In Stock

shipped by (sigma)

Point: 20

Brand : Gigabyte

Model : B650M GAMING WIFI

Seller : sigma

Viewed : 543 items

Gigabyte B650M GAMING WIFI - Key Specifications

CPU Support: AMD Socket AM5 for Ryzen™ 7000 / 8000 / 9000 Series processors

Chipset: AMD B650

Memory: 2 x DDR5 DIMM slots, up to 128GB, supports DDR5 speeds up to 6400(OC), AMD EXPO™ & Intel XMP support

Graphics: Integrated AMD Radeon™ with HDMI 2.1 (4K@60Hz) and D-Sub outputs

Storage: 1 x PCIe 4.0 M.2 slot, 4 x SATA 6Gb/s ports, RAID 0/1/10 support

Expansion Slots: 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x1

Networking: Realtek 2.5GbE LAN + Wi-Fi 802.11ac + Bluetooth 4.2

USB Ports: Multiple USB 3.2 Gen1 and USB 2.0 ports (front and back)

Audio: Realtek HD Audio (up to 7.1 channel)

Form Factor: Micro ATX (24.0 x 22.5 cm)

Special Features: Q-Flash Plus BIOS update without CPU/Memory/GPU, Smart Fan 6, GIGABYTE Control Center support

Seller note

010062152000076

Fast delivery
2-5 Days
Online Support
Chat and Phone
order protection
secured information
promotion gift
special offers!
money back
return over 14 days

GIGABYTE B650M GAMING WIFI

CPU

AMD Socket AM5, support for:
AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors
(Go to GIGABYTE's website for the latest CPU support list.)

Chipset

AMD B650

Memory

Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect supported memory types, data rate (speed), and number of DRAM modules. Refer to "Memory Support List" on GIGABYTE's website.)

Onboard Graphics

Integrated Graphics Processor with AMD Radeon™ Graphics support:
- 1 x D-Sub port, max resolution 1920x1200@60 Hz
- 1 x HDMI port, max resolution 4096x2160@60 Hz
- Support for HDMI 2.1 and HDCP 2.3
- Support for native HDMI 2.1 TMDS compatible ports
- (Graphics specs vary depending on CPU support.)

Audio

Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
(Audio jack functionality can be customized via software for 7.1-channel configuration.)

LAN

Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication Module

AzureWave Wi-Fi AW-CB304NF (Realtek® RTL8821CE)
WIFI 802.11 a/b/g/n/ac, dual-band 2.4/5 GHz
BLUETOOTH 4.2
Support for 11ac wireless standard
(Actual data rate depends on environment and equipment.)

Expansion Slots

1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
- AMD Ryzen™ 7000/9000 Series support PCIe 4.0 x16 mode
- AMD Ryzen™ 8000 Series-Phoenix 1 support PCIe 4.0 x8 mode
- AMD Ryzen™ 8000 Series-Phoenix 2 support PCIe 4.0 x4 mode
- (For best performance, install a single graphics card in PCIEX16 slot.)
1 x PCI Express x1 slot, PCIe 3.0 x1

Storage Interface

1 x M.2 connector (Socket 3, M key, type 2580/2280 SSDs):
- Ryzen™ 7000/9000 Series support PCIe 4.0 x4/x2 SSDs
- Ryzen™ 8000 Series-Phoenix 1 and 2 support PCIe 4.0 x4/x2 SSDs
4 x SATA 6Gb/s connectors
RAID 0, 1, 10 support for NVMe and SATA devices

USB

CPU:
- 2 x USB 3.2 Gen 1 ports (back panel)
- 1 x USB 2.0/1.1 port (back panel)
Chipset:
- 2 x USB 3.2 Gen 1 ports (internal header)
- 5 x USB 2.0/1.1 ports (3 back panel, 2 internal header)
Chipset + USB 2.0 Hub:
- 2 x USB 2.0/1.1 ports (internal header)

Internal I/O Connectors

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
2 x addressable LED strip headers
1 x RGB LED strip header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (for GC-TPM2.0 SPI modules only)
1 x Clear CMOS jumper

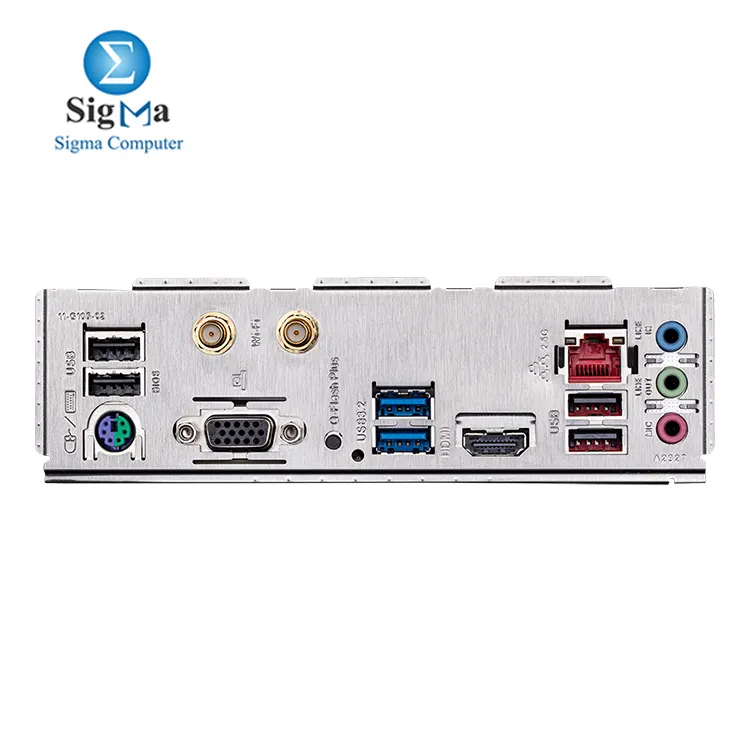

Back Panel Connectors

4 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x Q-Flash Plus button
2 x USB 3.2 Gen 1 ports
1 x HDMI port
1 x RJ-45 port
3 x audio jacks

I/O Controller

iTE® I/O Controller Chip

Hardware Monitoring

Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control (dependent on installed fan)

BIOS

1 x 256 Mbit flash
Licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

Support for GIGABYTE Control Center (GCC)
Support for Q-Flash and Q-Flash Plus

Bundled Software

Norton® Internet Security (OEM version)
LAN bandwidth management software

Operating System Support

Windows 11 64-bit
Windows 10 64-bit

Form Factor

Micro ATX; 24.0 cm x 22.5 cm

Category	Desktop
Subcategory	Motherboard
Brand	Gigabyte
Model	B650M GAMING WIFI
