HAVN-HS 420 Black CASE | AIR Cooling Up to 185mm | VGA Support Up to 480mm | Type-C Ready | GPU Holder | 20000 EGP

HAVN-HS 420 Black CASE AIR Cooling Up to 185mm VGA Support Up to 480mm Type-C Ready GPU Holder

20000 LE
shipped by (sigma)
Point: 10

Brand : HAVN brand

Model : HS 420

Seller : sigma

Viewed : 81 items

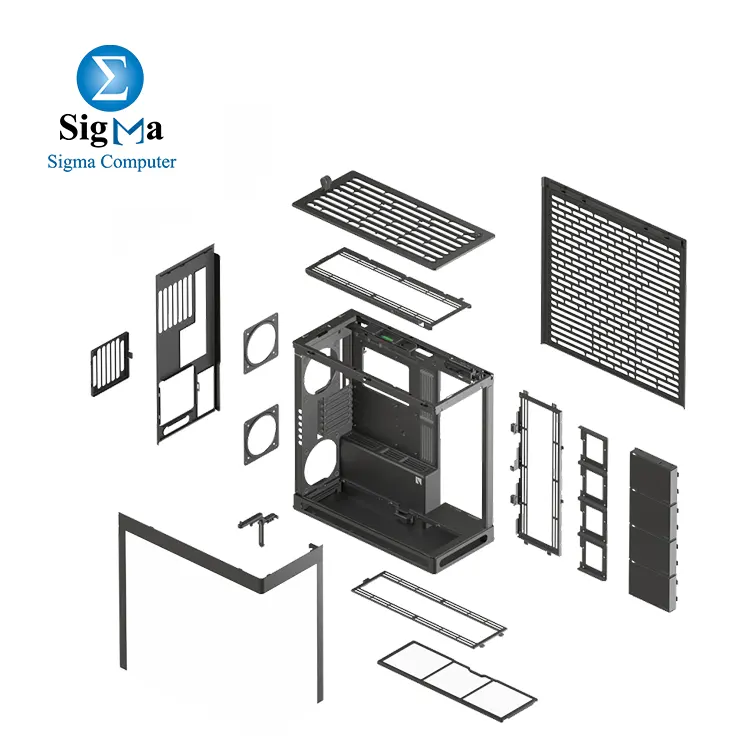

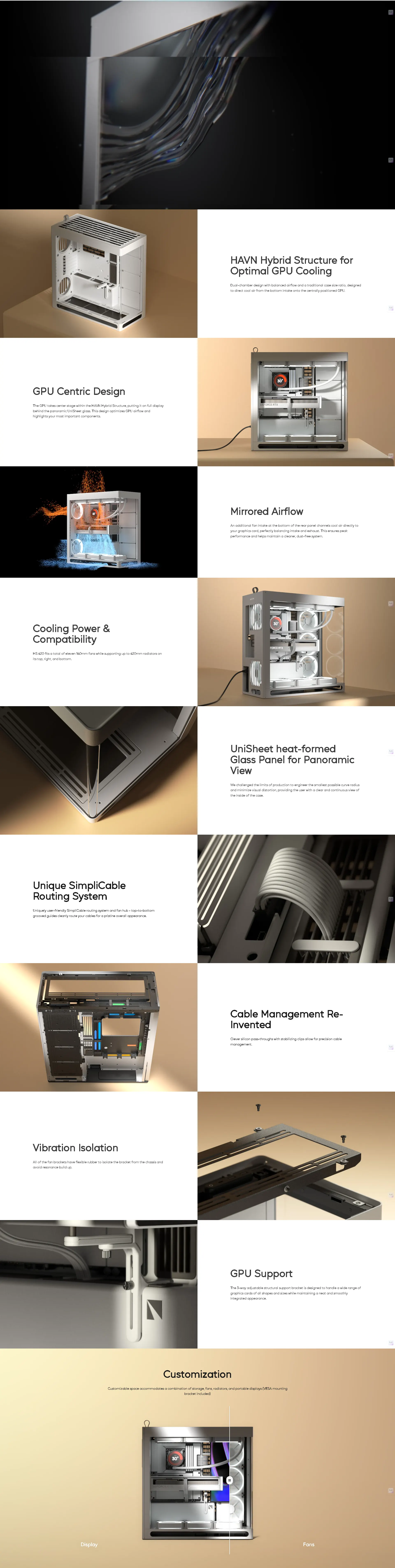

The HS 420 is a masterpiece of functional beauty and user-centric innovation. After numerous prototypes, redesigns, and thousands of rigorous testing hours by HAVN and Pro Gamers Group engineers, this Hybrid Structure case has been tailor-made to deliver unrivaled central GPU airflow within a dual-chamber design — all while maintaining traditional mid-tower dimensions.

Built to support the most powerful fans and radiators on the market, the HS 420 provides the thermal optimization needed for even the most demanding tasks.

  • UniSheet heat-formed panoramic glass panels on the front and side are engineered to be flatter with a smaller radius, minimizing visual distortion.

  • Optimized thermal performance with custom panel ventilation, designed for 140mm fans (up to 11 fan positions) and support for radiators up to 420mm on the top, side, and bottom.

  • Intuitive SimpliCable routing system and integrated fan hub ensure clean and discreet cable management.






Form Factor

  • Mid Tower

Material

  • SGCC sheet metal, tempered glass, ABS, Nylon, Silicon, Zinc alloy, NdFeB magnets

PC Case Dimensions (L x W x H)

  • 541 x 259.5 x 547 mm


Front I/O

  • USB 3.2 Gen 2 Type-C ×1

  • USB 3.2 Gen 1 Type-A ×2

  • Audio Jack ×1

  • Power & Reset Button ×1

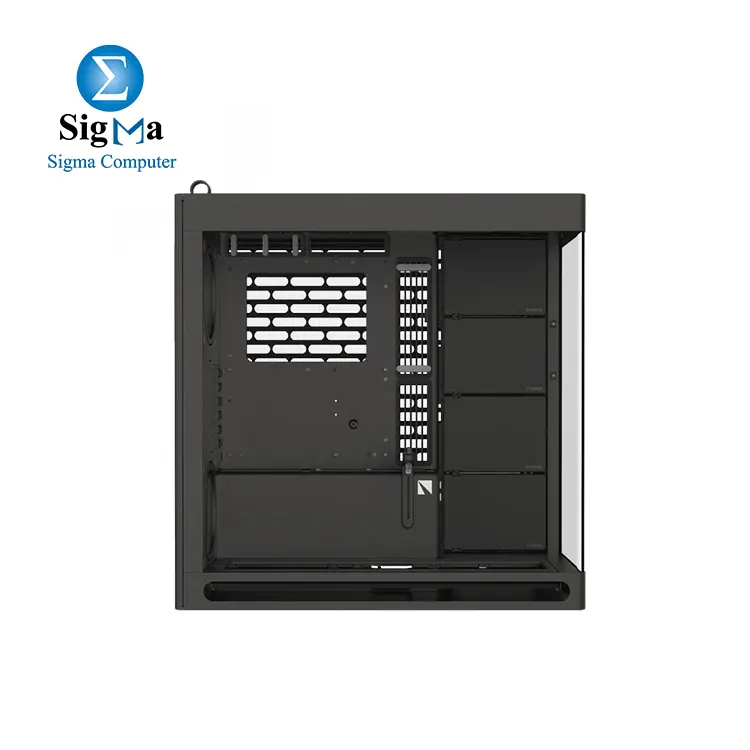

Motherboard Support

  • E-ATX (Max Width 277 mm)

  • ATX

  • Micro-ATX

  • Mini-ITX

Expansion Slots

  • 6


Fan Support

  • Maximum amount: 11

  • Top: 3 × 120 mm / 3 × 140 mm

  • Right: 3 × 120 mm / 3 × 140 mm

  • Bottom: 3 × 120 mm / 3 × 140 mm

  • Rear: 2 × 120 mm / 2 × 140 mm (Thickness up to 30 mm)


Fan PWM Repeater

  • Channels: Total 12 channels

  • Locations: Cable Management Tray ×1, PSU shroud ×1


CPU Tower Cooler Clearance

  • Height: Up to 185 mm

  • Tower cooler size depends on GPU width.

  • CPU center to graphics card PCIe edge connector: approximately 199 mm (varies by motherboard).

  • Liquid cooling recommended.


Liquid Cooling Support

  • Top: 280 / 360 / 420 mm (Thickness: 65 mm, not overlapping with RAM)

  • Right: 280 / 360 / 420 mm (Thickness: 60 mm with GPU > 317 mm, 80 mm with top AIO)

  • Bottom: 280 / 360 / 420 mm (Thickness: 120 mm)


Graphics Card Clearance

  • Length: Up to 480 mm

  • Width: Up to 195 mm (GPU width support depends on CPU cooler size)

  • CPU center to graphics card PCIe edge connector: approximately 199 mm (varies by motherboard).

  • Liquid cooling recommended.


GPU Support

  • 2 to 5 slots


RAM Clearance

  • If fan and radiator thickness > 65 mm:

    • For 420 mm radiator: 32 mm clearance

    • For 360 mm radiator: 43 mm clearance


Power Supply Support

  • ATX

  • Length: Up to 220 mm (Clearance up to 290 mm)


Storage

  • Right Fan Mount: 4 storage bays (4 × 3.5" / 8 × 2.5")

  • Cable Management Tray: 1 storage bay (1 × 3.5" / 2 × 2.5")

  • Storage bays included: 4


Internal Display Support

  • VESA Mounting: 75 × 75 mm / 100 × 100 mm

  • Display Size: Up to 14 inches

  • Location: Front Right Pillar


Dust Filters

  • Bottom: 1 (Removable)

  • Top: 1 (Built-in)

  • Right: 1 (Built-in)

  • Rear Bottom: 1 (Removable)







CategoryDesktop
SubcategoryComputer Case
BrandHAVN
ModelHS 420
