Jonsbo TK-3 – ATX case, steel & tempered glass, supports GPUs up to 420mm, CPU coolers 165mm, ATX PSUs 220mm, top/bottom 360mm radiators, USB-C front I/O. | 8199 EGP

Jonsbo TK-3 ATX case steel tempered glass supports GPUs up to 420mm CPU coolers 165mm ATX PSUs 220mm top bottom 360mm radiators USB-C front I O.

8199 LE
Availability: In Stock
shipped by (sigma)
Point: 30

Brand : jonsbo brand

Model : Jonsbo TK-3

Seller : sigma

Viewed : 155 items

Color: Black
Material: 0.7mm Steel + 4mm Tempered Glass
Dimensions: 288 x 438 x 415 mm
Motherboard Support: ATX / M-ATX / ITX
Drive Bays: Up to 2 x 3.5" HDD or 2 x 2.5" SSD
Cooling Support:

  • Top: 3 x 120mm / 2 x 140mm

  • Bottom: 3 x 120mm

  • Side: 3 x 120mm

  • Rear: 1 x 120mm
    Radiator Support: Top & Bottom up to 360mm
    GPU Clearance: Up to 420mm
    CPU Cooler Clearance: Up to 165mm
    PSU Support: ATX up to 220mm
    Front I/O: USB-C 3.2 Gen2 x1, USB 3.0 x2, Audio/Mic combo
    Expansion Slots: 7
    Weight: 7.3 kg


Model: Jonsbo TK-3
Color: Black

Dimensions: 288mm (W) x 438mm (D) x 415mm (H)
Material: 0.7mm Steel
Side Panel: 4mm Tempered Glass (2H hardness explosion-proof protective film applied – do not remove)


Motherboard Support:

  • ATX

  • Micro-ATX

  • Mini-ITX

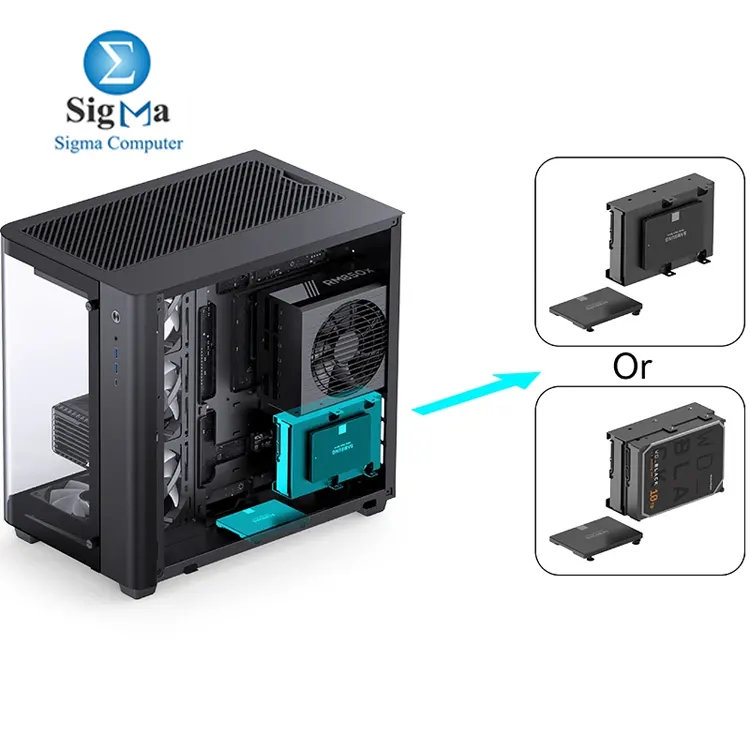

Drive Bays:

  • 2 x 3.5" HDD + 1 x 2.5" SSD
    or

  • 1 x 3.5" HDD + 2 x 2.5" SSD


Cooling Support:

  • Top: 3 x 120mm or 2 x 140mm (optional)

  • Bottom: 3 x 120mm (optional)

  • Side: 3 x 120mm (optional)

  • Rear: 1 x 120mm (optional)

Radiator Support:

  • Top: 1 x 360mm or 1 x 280mm (optional)

  • Bottom: 1 x 360mm (optional)


Power Supply Support:

  • ATX PSU up to 220mm length

CPU Cooler Clearance:

  • Up to 165mm

GPU Clearance:

  • Up to 420mm


Front I/O Ports:

  • 1 x USB 3.2 Gen2 Type-C

  • 2 x USB 3.0

  • 1 x Audio/Mic Combo Jack (2-in-1)

Expansion Slots: 7
Weight: 7.3 kg

CategoryDesktop
SubcategoryComputer Case
Brandjonsbo
ModelJonsbo TK-3
