COUGAR UNIFACE MINI RGB And STC 600W Compact mini tower with tempered glass, 3 ARGB fans, supports up to 280mm radiator, 340mm GPU 600W PSU with 86% efficiency, Japanese capacitors, and full protection features. | 3299 EGP

COUGAR UNIFACE MINI RGB And STC 600W Compact mini tower with tempered glass 3 ARGB fans supports up to 280mm radiator 340mm GPU 600W PSU with 86 efficiency Japanese capacitors and full protection features.

3299 LE
Availability: In Stock
shipped by (sigma)
Point: 30

Brand : COUGAR brand

Seller : sigma

Viewed : 161 items

Model: COUGAR UNIFACE MINI RGB (Black)
Form Factor: Mini Tower
Motherboard Support: Micro ATX / Mini ITX
Cooling: Up to 6 fans, supports 280mm radiator, 160mm air cooler
Pre-installed Fans: 2 x 140mm ARGB (Front), 1 x 120mm ARGB (Rear)
GPU Support: Up to 340mm length
Storage: 2 x 3.5", 4 x 2.5" (2 converted)
I/O Ports: 2 x USB 3.0, 1 x USB 2.0, Audio, Mic, RGB button
Side Panel: Tempered glass
RGB: Built-in controller, 5V ARGB sync


Power Supply: STC 600W

  • 600W output, up to 86% efficiency @ 230V

  • Active PFC up to 99%, stable and clean power delivery

  • 120mm silent fan with optimized airflow and low noise

  • 105°C Japanese capacitors for durability

  • Connectors: 1 x 24-pin, 1 x 8-pin CPU, 2 x 6+2-pin PCI-E, 6 x SATA, 2 x Molex

  • Protections: OVP, UVP, OCP, SCP, OPP

  • Compatible with multi-core CPUs and PCIe GPUs

Model: COUGAR UNIFACE MINI RGB (Black)
Form Factor: Mini Tower
Motherboard Support: Mini ITX / Micro ATX
Dimensions (WxHxD): 210 x 422 x 390 mm

Cooling & Ventilation

  • Fan Support:

    • Front: 3 x 120mm or 2 x 140mm

    • Top: 2 x 120mm or 2 x 140mm

    • Rear: 1 x 120mm

  • Pre-installed Fans:

    • 2 x 140mm ARGB (Front)

    • 1 x 120mm ARGB (Rear)

  • Max Fans Supported: 6

  • Fan Speeds:

    • 140mm: 1000 ±10% RPM

    • 120mm: 1200 ±10% RPM

Cooling Compatibility

  • Water Cooling:

    • Front: Up to 280mm

    • Top: Up to 240mm (RAM height limit: 45mm)

    • Rear: 120mm

  • Air Cooling: Max CPU Cooler Height: 160mm

Storage

  • Drive Bays:

    • 2 x 3.5"

    • 2 + 2 x 2.5" (converted from 3.5")

GPU & PSU

  • Max GPU Length: 340mm

  • Max PSU Length: 160mm

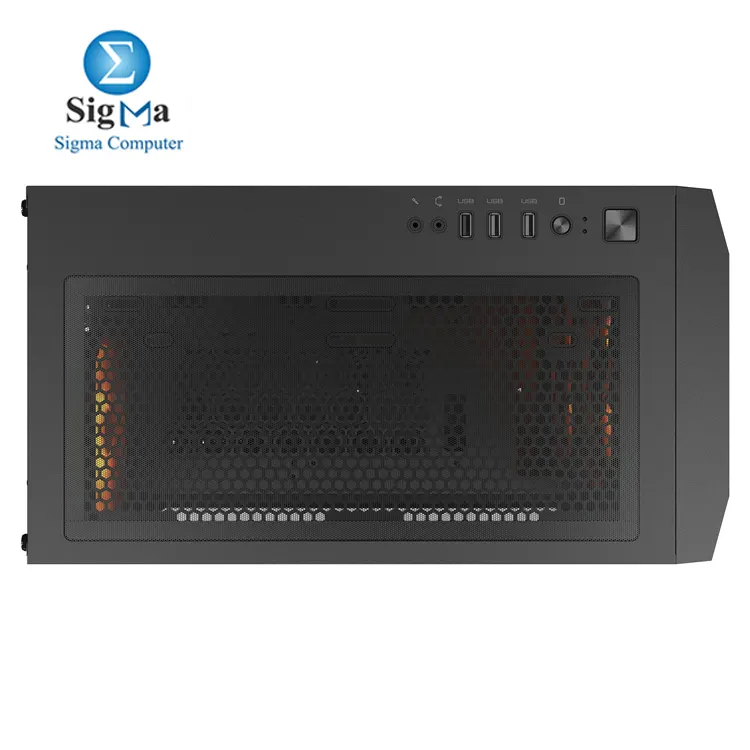

I/O Panel

  • 2 x USB 3.0

  • 1 x USB 2.0

  • 1 x Audio

  • 1 x Mic

  • RGB Control Button

Additional Features

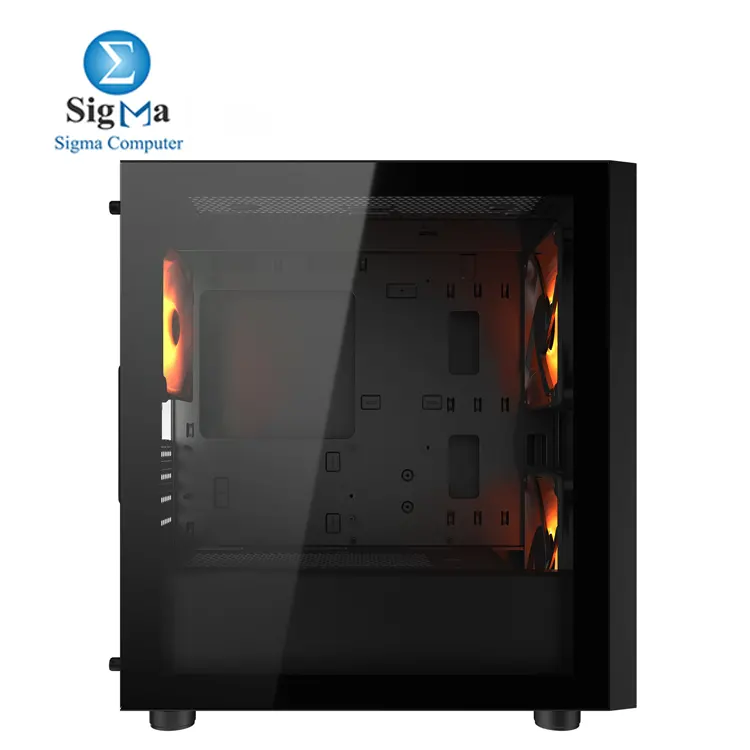

  • Tempered glass left panel

  • Integrated RGB controller with 5V ARGB sync support

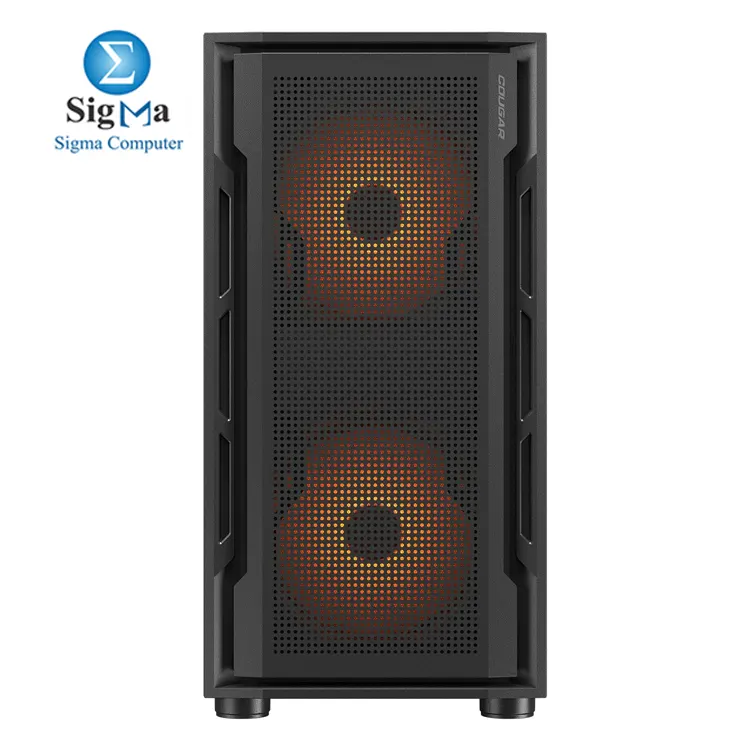

  • Perforated front panel for enhanced airflow

  • 4 expansion slots

Weight & Packaging

  • Net Weight: 5.95 kg

  • Gross Weight: 7.0 kg

  • Packaging Dimensions: 272 x 480 x 480 mm

Model No.: CGR-55C9B-RGB
EAN: 4710483777615
UPC: 192554007670
JAN: 4541995038587



Power Supply: Cougar STC 600W

Performance & Efficiency

  • 600W output with up to 86% efficiency under 230V EU standard

  • Active Power Factor Correction (PFC up to 99%) for stable and clean power

Cooling & Build Quality

  • 120mm temperature-controlled silent fan

  • Optimized fan blade curvature for reduced vibration and noise

  • High-quality Japanese capacitors (105°C standby, polypropylene filtering)

Connectors

  • 1 x 24-pin motherboard

  • 1 x 8-pin (4+4) CPU

  • 2 x 6+2-pin PCI-E

  • 6 x SATA

  • 2 x PATA (Molex)

Protection Features

  • OVP (Over Voltage Protection)

  • UVP (Under Voltage Protection)

  • OCP (Overcurrent Protection)

  • SCP (Short-Circuit Protection)

  • OPP (Over Power Protection)

Compatibility

  • Supports multi-core CPUs and PCIe 3.0 GPUs

  • Ideal match for gaming and performance-oriented PC builds

CategoryDesktop
SubcategoryComputer Case
BrandCOUGAR
ModelUNIFACE MINI RGB
