NZXT H510i - CA-H510i-BLACK - Compact ATX Mid-Tower PC Gaming Case | 1999 EGP

NZXT H510i - CA-H510i-BLACK - Compact ATX Mid-Tower PC Gaming Case

1999 LE
shipped by (sigma)
Point: 50

Brand : NZXT brand

Model : CA-H510i

Seller : sigma

Viewed : 3243 items

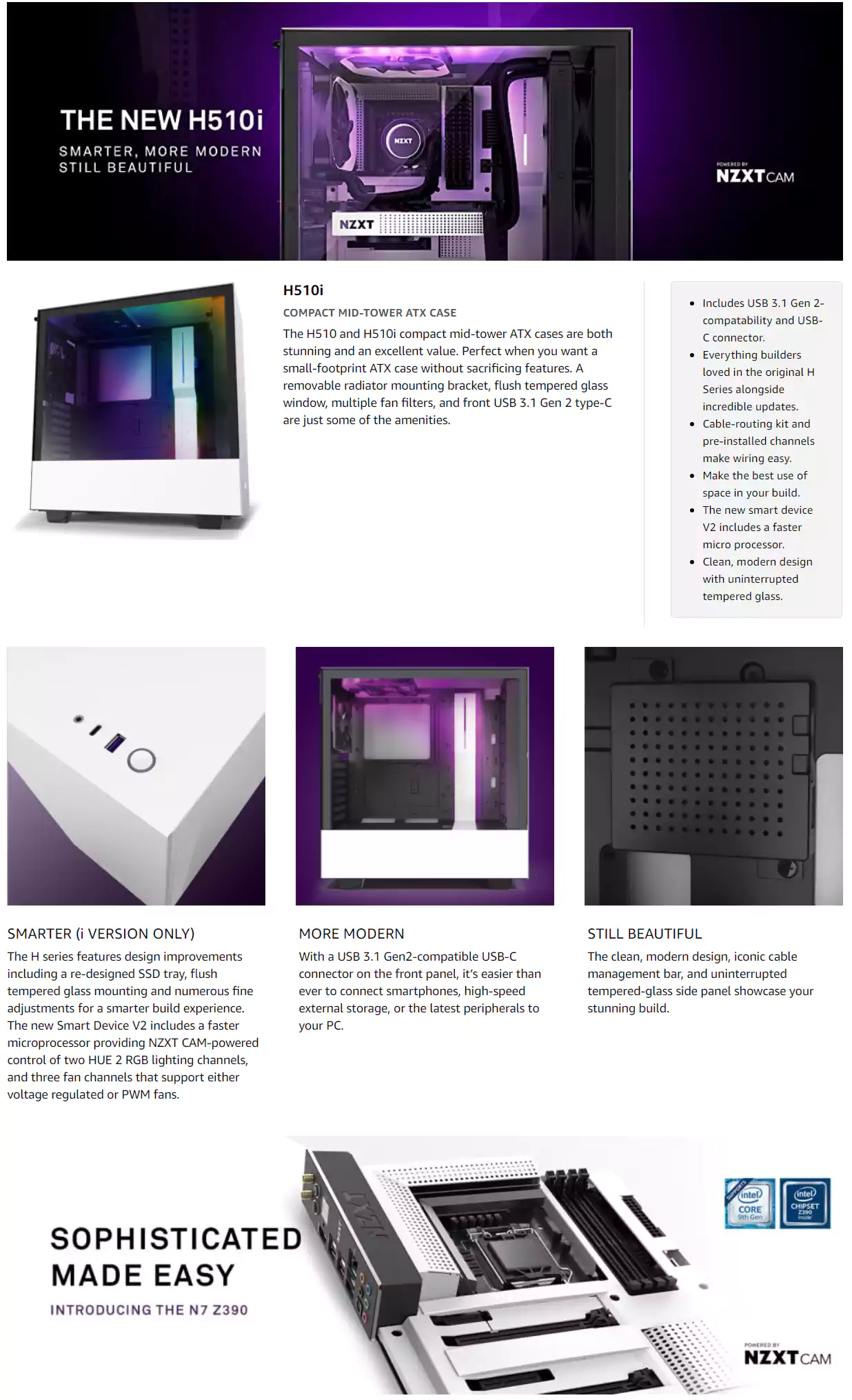

e’ve made our iconic H Series PC cases even better. Our new lineup still features the elements builders loved in the original H Series, including our patented cable management system, removable fan/radiator mounting brackets, and easy-to-use drive trays, alongside new updates like a front-panel USB-C connector supporting high-speed USB 3.1 Gen 2 devices, a tempered glass side panel that installs with a single thumbscrew, and an upgraded Smart Device V2 on the H510i.

The new Smart Device V2 includes a faster microprocessor for NZXT CAM-powered control of two HUE 2 RGB lighting channels and three fan channels that support either voltage regulated or PWM fans.

With a USB 3.1 Gen2-compatible USB-C connector on the front panel, it’s easier than ever to connect smartphones, high-speed external storage, or the latest peripherals to your PC

The clean, modern design, iconic cable management bar, and uninterrupted tempered-glass side panel showcase your stunning build.

Use the intuitive NZXT CAM application to monitor and control your build, choosing from presets or custom controls for your RGB lighting and fans to create your dream PC.

Cable management can often take more time than assembly. We designed a cable routing kit with pre-installed channels and straps, for intuitive and easy wiring.

Two Aer F120mm fans* are included for optimal internal airflow and the front panel and PSU intakes include removable filters. Includes a removeable bracket designed for radiators up to 280mm simplifies the installation of either closed-loop or custom-loop water cooling.

*Case version fans and specs vary from retail version

Show off your graphic card with a built-in mounting bracket for installing your GPU vertically.

*PCIe riser card not included.








Dimensions W: 210mm H: 435mm D: 428mm (without feet)
W: 210mm H: 460mm D: 428mm (with feet)
Material(s) SGCC Steel, Tempered Glass
Weight 6.8 kg
Motherboard Support Mini-ITX, MicroATX, and ATX
Front I/O Ports 1x USB 3.1 Gen 2 Type-C
1x USB 3.1 Gen 1 Type-A
1x Headset audio Jack
Front I/O internal header
1x USB 3.1 Gen 2 Internal Header
1x USB 3.1 Gen 1 Internal Header
1x USB 2.0 Internal Header
1x HD Audio Header
Filters All Air Intakes
Smart Device V2 3x Fan channels with Max 10W per channel output*
2x RGB LED port support up to 4x HUE 2 addressable LED strips or 5x Aer RGB or Aer RGB 2 fans
*Note: If a splitter is used, fan control is regulated depending on the fan connected to the 4-pin port. Do not use low-noise adapters.
LED Strip(s) 2 integrated addressable LED strip
Vertical GPU Mount 2 Slots
Included Accessories Installation screws
10x Cable ties
1x Headset Audio Jack splitter (4 pole to 3 pole)
Drive Bays 2.5”: 2+1
3.5”: 2+1
Expansion Slots 7
Radiator Support Front: 2x 140 or 2x 120mm with Pull
Rear: 1x 120mm
Fan Support Front: 2 x 120/ 2 x 140mm
Top: 1x 120mm/ 1x 140mm (1 Aer F120 Case Version included)
Rear: 1x 120mm (1 Aer F120 Case Version included)
Fan Specs Aer F120 (Case Version)
Speed: 1200 ± 200 RPM
Airflow: 50.42 CFM
Noise: 28 dBA
Bearing: Rifle Bearing
Clearance Cable Management: 19-23mm
GPU Clearance: Up to 381mm w/o front watercooler installed, up to 325mm with front watercooler installed
Vertical GPU Mount Clearance: 40.64mm
CPU Cooler: Up to 165mm
Front Radiator: 60mm
Rear Radiator: 60mm
Reservoir & Pump: Up to 180mm (Along cable bar), Up to 86mm (Along bottom panel)
Compatibility NVIDIA GeForce RTX 30 series case compatibility chart
Warranty 2 Years
Model Number CA-H510i-BR
EAN 5060301695034
UPC 815671014733

CategoryDesktop
SubcategoryComputer Case
BrandNZXT
ModelCA-H510i
TYPEATX Mid Tower
Case and PSU BundleNO POWER SUPPLY
FANSNO FAN
COLORSBLACK
