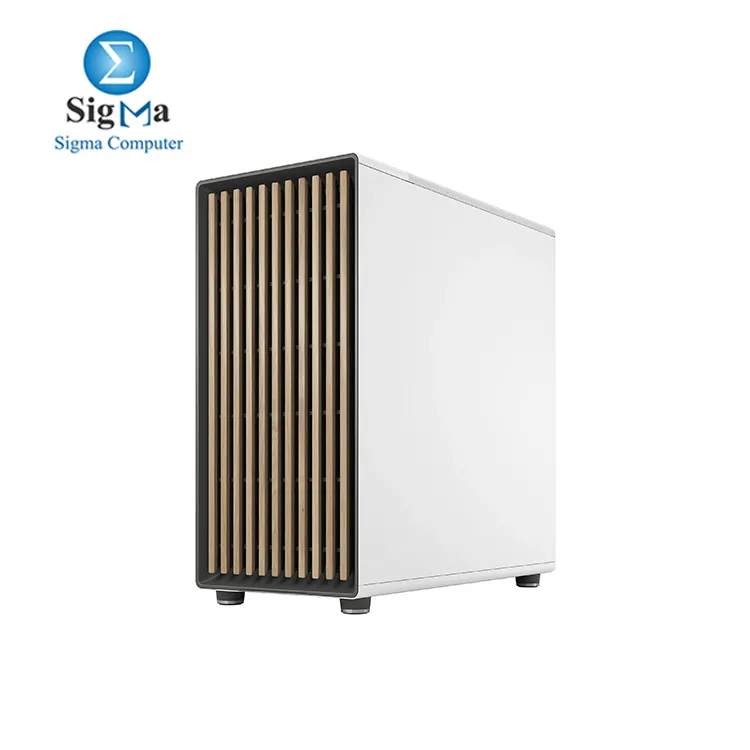

Fractal Design North XL Chalk White Mesh- Three 140mm Aspect PWM Fans Included- Type C USB- EATX Airflow Full Tower PC Gaming case | 11699 EGP

Fractal Design North XL Chalk White Mesh- Three 140mm Aspect PWM Fans Included- Type C USB- EATX Airflow Full Tower PC Gaming case

11699 LE
Availability: In Stock only 1 item left
shipped by (sigma)
Point: 100

Model : North XL

Seller : sigma

Viewed : 392 items

Key Features

  • Transformative Design: The North XL offers a fresh take on the traditional gaming case with a generous and visually appealing form factor, enhancing your gaming space's aesthetics.

  • Material Quality: Made with FSC-certified wood and alloy details, the case not only looks great but also promotes sustainability.

  • Cooling and Performance:

    • GPU Support: Accommodates graphics cards up to 413 mm in length, or up to 380 mm when using a 420 mm front radiator. This flexibility allows for high-performance components.
    • Pre-Installed Cooling: Comes with three 140 mm Aspect PWM fans, providing excellent airflow and cooling right out of the box.

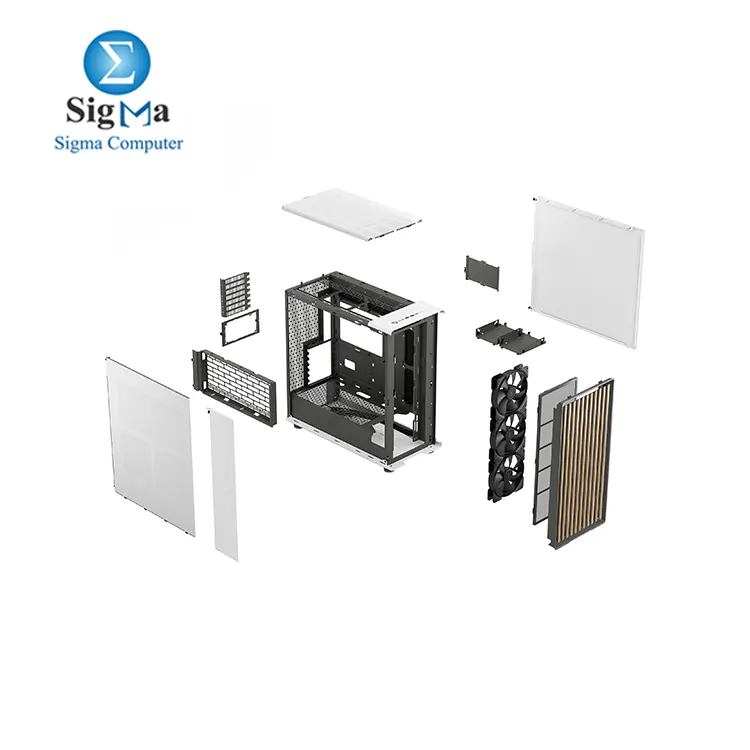

Interior Layout

  • Spacious and Intuitive Design: The interior layout is designed for easy installation and upgrades, making it user-friendly for builders of all experience levels.

Summary

The North XL is designed for gamers who want to combine performance with aesthetics. Its spacious interior, high-quality materials, and effective cooling solutions make it an excellent choice for building a stylish and powerful gaming rig. Whether you're a seasoned builder or just starting, this case offers the features and flexibility to enhance your gaming experience.





Storage Options

  • Dedicated 2.5" Drive Mounts: 2
  • Combined 3.5/2.5” Drive Mounts: 2 included
  • 5.25” Drive Mounts: 0

Expansion and Interfaces

  • Expansion Slots: 7
  • Front Interface:
    • 1 x USB 3.2 Gen 2x2 Type-C (20 Gbps)
    • 2 x USB 3.0
    • Audio & Mic ports

Cooling Configuration

  • Total Fan Mounts:
    • TG Version: 7 x 120 mm or 6 x 140 mm
    • Mesh Version: 9 x 120 mm or 8 x 140 mm
  • Front Fan:
    • 3 x 120 mm or 3 x 140 mm (includes 3 x Aspect 140mm PWM fans)
  • Top Fan:
    • 3 x 120 mm, 2 x 140 mm, or 2 x 180 mm
  • Rear Fan:
    • 1 x 120/140 mm

Dust Filters and Cable Management

  • Dust Filters: Front and PSU
  • Fixed Cable Straps: Yes
  • Cable Routing Grommets: Yes
  • Captive Thumbscrews: For HDD brackets, SSD bracket, side panels, fan bracket, and PSU bracket

Panel and Compatibility

  • Left Side Panel: Mesh
  • Right Side Panel: Steel
  • Motherboard Compatibility: E-ATX, ATX, mATX, Mini-ITX
  • Power Supply Type: ATX
  • Max PSU Length:
    • 1 HDD Tray: 290 mm max
    • 2 HDD Trays: 175 mm

Dimensions and Weight

  • Case Dimensions (LxWxH): 503 x 240 x 509 mm
  • Dimensions without Feet/Protrusions/Screws: 490 x 240 x 490 mm
  • Net Weight:
    • 9.7 kg (Mesh)
    • 9.5 kg (TG)
  • Package Dimensions (LxWxH): 604 x 355 x 608 mm
  • Gross Weight:
    • 11.9 kg (Mesh)
    • 11.7 kg (TG)

Compatibility and Max Dimensions

  • GPU Max Length:
    • 413 mm with front fan mounted
    • 380 mm with a 33 mm-thick 420/360 mm front-mounted radiator
  • CPU Cooler Max Height:
    • 155 mm with Fan Bracket (Mesh version)
    • 185 mm without
  • Front Radiator Support: Up to 420/360 mm
  • Top Radiator Support: Up to 280/360 mm
  • Rear Radiator Support: 1 x 120/140 mm
  • Cable Routing Space: 29 mm

Package Contents

  • For Mesh Version: North case, Accessory Box, Fan Bracket Accessory Box, User Manual
  • For TG Version: North case, Accessory Box, User Manual



CategoryDesktop
SubcategoryComputer Case
Brandfractal design
ModelNorth XL
