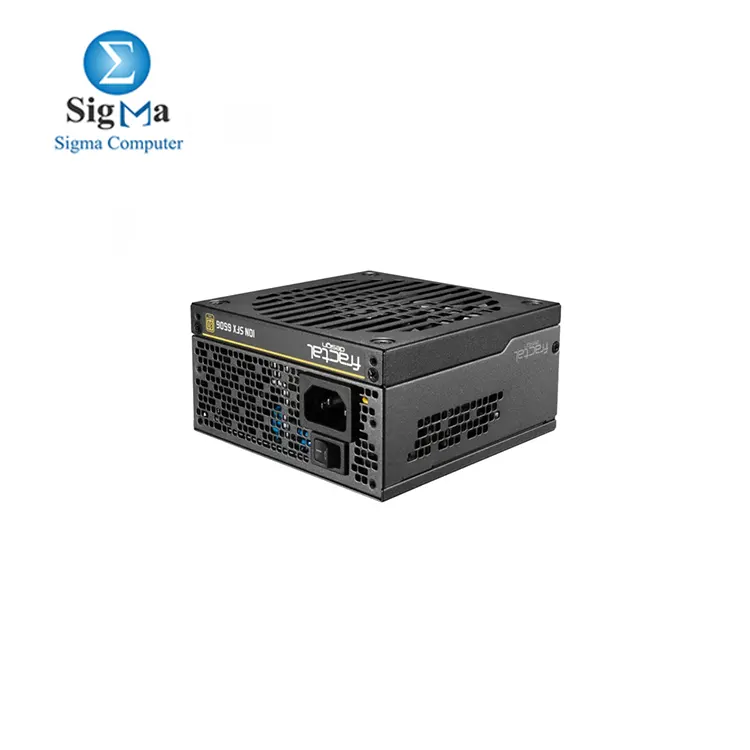

Fractal Design Ion SFX 650G - 80 Plus Gold Certified 650W Full Modular SFX-L Power Supply with UltraFlex DC wires – 120 mm silent fan with FDB bearings – Zero RPM mode - Black | 8399 EGP

Fractal Design Ion SFX 650G - 80 Plus Gold Certified 650W Full Modular SFX-L Power Supply with UltraFlex DC wires 120 mm silent fan with FDB bearings Zero RPM mode - Black

8399 LE
Availability: In Stock only 2 item left
shipped by (sigma)
Point: 30

Seller : sigma

Viewed : 765 items

Key Features

  • Modular Design: Allows for customized cable management and improved airflow.
  • UltraFlex DC Wires: Designed for easy routing and flexible connections.

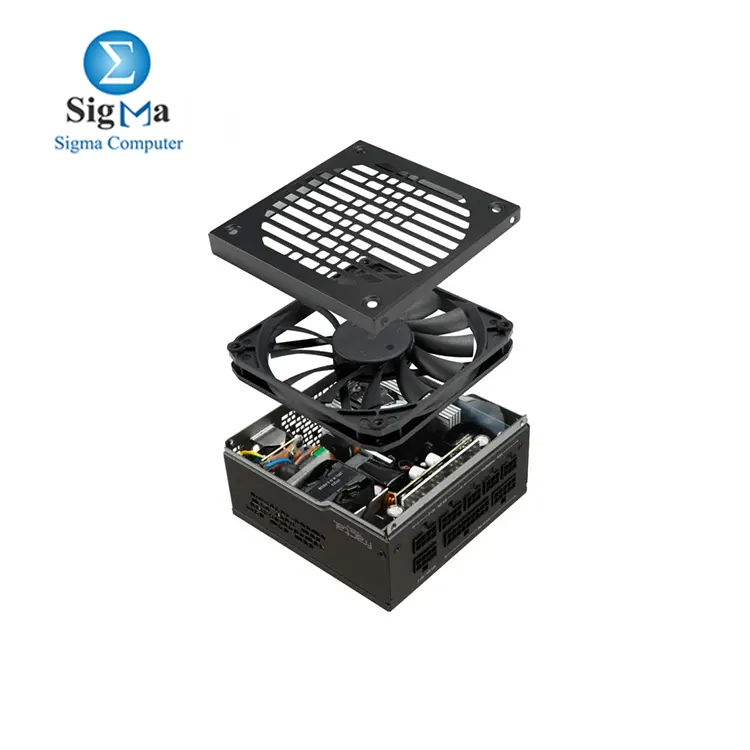

  • Cooling: Large 120 mm fan with true long-life fluid dynamic bearings (FDB) for quiet operation and durability.
  • Efficiency Rating: 80 PLUS® Gold Certified, ensuring high energy efficiency and lower heat output.

General Specifications

  • Form Factor: SFX-L.
  • Wattage Options: Available in various wattage ratings (please specify if needed).
  • Output Quality: Superior voltage regulation and ripple suppression for stable power delivery.




General Information

  • 80 PLUS Certification: Gold
  • Form Factor: SFX-L*
  • Color: Black/Gunmetal
  • Warranty: 10 Years
  • Life Expectancy (MTBF): 100,000 hours at maximum output load

Cooling and Operation

  • Fan Type: Slim (15 mm) FDB bearing 120 mm fan
  • Maximum Operating Temperature: 40°C (maximum 80% load at 50°C)
  • Semi-Passive Operation: Yes (Zero RPM mode)

Capacitors

  • Type: 105°C Japanese Polymer

Cable Information

  • Modularity: Fully modular
  • Cable Type:
    • Modular 24-pin: Braided sleeve UltraFlex™ wire
    • Others: Flat UltraFlex™ wire
  • Cable Color: Black

Protection Features

  • Over Voltage Protection
  • Under Voltage Protection
  • Over Power Protection
  • Short Circuit Protection
  • Over Current Protection
  • Over Temperature Protection

Input Specifications

  • Input Voltage: 100-240V AC
  • Input Frequency: 50-60 Hz
  • Input Current: 8A/4A (650G)

Output Specifications

  • Number of 12V Rails: 1
  • DC Output:
    • 3.3V: 20A
    • 5V: 20A
    • 3.3V and 5V Combined: 100W
    • 12V: 54A
    • -12V: 0.3A
    • +5Vsb: 3A
  • Total Power: 650W

Connectors

  • ATX: 1
  • EPS/ATX12V: 1
  • PCIe: 4
  • SATA: 8
  • Peripheral: 2

Cable Lengths (mm between connectors)

  • ATX 24-pin: 350
  • EPS/ATX12V 4+4 pin: 400
  • PCIe 6+2 pin: 400 + 100 (x2)
  • SATA: 300 + 200 + 200 + 100 (x2)
  • Peripheral: 300 + 200

Compliance and Certifications

  • Approvals: CE, FCC, TUV, cTUVus, EAC, RCM, CCC, BSMI, CB, RoHS, WEEE
  • Standby Efficiency: ErP 2013 (<0.45W @230 VAC, 45 mA load on +5Vsb)
  • Sleep State Compliance: C6/C7



CategoryDesktop
SubcategoryPower Supply
Brandfractal design
ModelDesign Ion SFX
