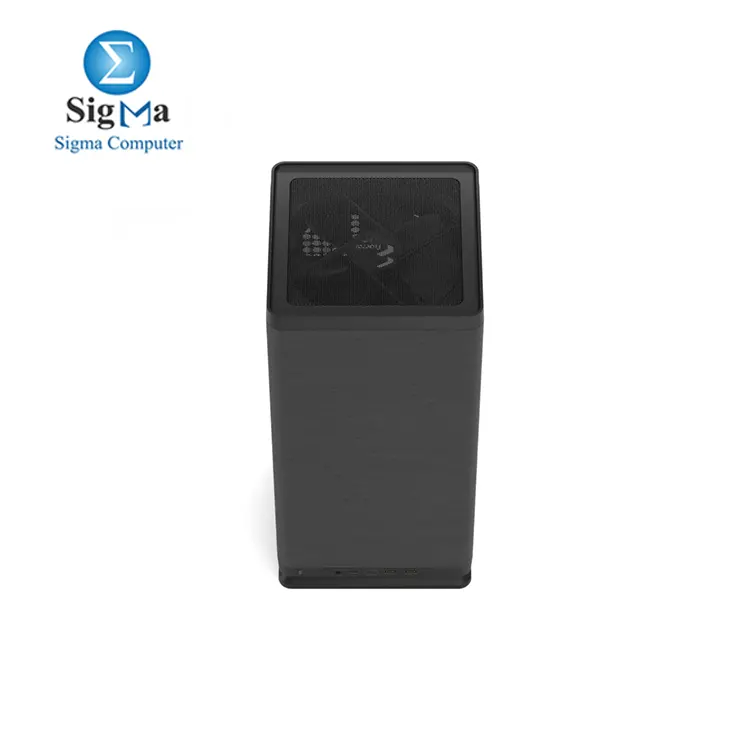

Fractal Design Mood Black PC Case - Sleek Fabric Design, 180mm Top Fan, Conceals 325mm Graphics Card, m-ITX Motherboard Compatible, Easy Access Build, Efficient Cooling | 10599 EGP

Fractal Design Mood Black PC Case - Sleek Fabric Design 180mm Top Fan Conceals 325mm Graphics Card m-ITX Motherboard Compatible Easy Access Build Efficient Cooling

10599 LE
Availability: In Stock only 1 item left
shipped by (sigma)
Point: 45

Model : Design Mood

Seller : sigma

Viewed : 294 items

Key Specifications

  • Drive Mounts:

    • 1x 3.5” (included), 2x 2.5” (included).
    • No 5.25” mounts.
  • Expansion Slots: 2 slots (2.75).

  • Front Interface:

    • 1x USB 3.2 Gen 2x2 Type-C, 2x USB 3.0 Type-A, Audio/Mic combo, Power button.
  • Fan Mounts:

    • 1x 180 mm, 2x 120 mm, 2x 140 mm.
    • 1x 180 mm top fan (included), 2x front fans (not included).
  • Dust Filter: Rear magnetic filter included.

  • Cable Management:

    • No fixed velcro straps.
    • Tool-less push-to-lock for rear panel and SSD brackets.
    • Captive thumbscrews for PCIe blanks.

Compatibility

  • Motherboard: mITX.
  • Power Supply: SFX, SFX-L (max length 130 mm).
  • GPU Max Length: 325 mm (56 mm thickness).
  • CPU Cooler Max Height: 114 mm.

Dimensions

  • Case Size: 212 x 212 x 453 mm.
  • Package Size: 303 x 287 x 580 mm.
  • Net Weight: 4.6 kg, Gross Weight: 5.9 kg.

Package Contents

  • Case, accessory box, manual.




Key Specifications

  • Drive Mounts:

    • 3.5" Drive Mounts: 1x 3.5” included.
    • Dedicated 2.5" Drive Mounts: 2x included (2 positions total).
    • 5.25” Drive Mounts: 0.
  • Expansion Slots:

    • 2 Slot (2.75) expansion capacity.
  • Front Interface:

    • USB Ports:
      • 1x USB 3.2 Gen 2x2 Type-C (20 Gbps).
      • 2x USB 3.0 Type-A (5 Gbps).
    • Audio/Microphone Combo Jack: 1x.
    • Power Button: Yes.
  • Fan Mounts:

    • Total fan mounts:
      • 1x 180 mm.
      • 2x 120 mm.
      • 2x 140 mm.
    • Front Fan: 2x 120/140 mm (not included).
    • Top Fan: 1x 180 mm (included).
    • Rear Fan: None.
    • Bottom Fan: None.
  • Dust Filters:

    • Rear magnetic filter mesh included.
  • Cable Management:

    • Fixed Velcro Straps: No.
    • Tool-less Push-to-Lock: Yes, for rear panel and 2x SSD 2.5” brackets.
    • Captive Thumbscrews: Yes, for 2x PCIe blanks.

Compatibility

  • Motherboard Compatibility: mITX.
  • Power Supply Type: SFX, SFX-L.
  • PSU Max Length: 130 mm.
  • GPU Max Length: 325 mm.
  • GPU Thickness: 56 mm (2.75 slot).
  • GPU Height:
    • 145 mm (excluding cables).
    • 158 mm (including cables).
  • CPU Cooler Max Height: 114 mm (from top of IHS).
  • SFF-Ready Enthusiast GeForce Cards: Yes.

Dimensions

  • Case Dimensions (LxWxH): 212 x 212 x 453 mm.
  • Package Dimensions (LxWxH): 303 x 287 x 580 mm.
  • Net Weight: 4.6 kg.
  • Gross Weight: 5.9 kg.

Package Contents

  • Case.
  • Accessory Box.
  • Manual.



CategoryDesktop
SubcategoryComputer Case
Brandfractal design
ModelDesign Mood
