Thermal Grizzly Intel Lga1851 v1 Cpu Contact Frame - TG-CF-i1851-V1

reviews | Write a review

1275 LE

Availability: In Stock only 5 item left

shipped by (sigma)

Point: 10

Seller : sigma

Viewed : 28 items

Key Features – Thermal Grizzly Intel LGA1851 V1 CPU Contact Frame:

Designed for Intel LGA1851 socket (Intel Core Ultra 200 Series)

Replaces standard ILM to improve cooler contact and thermal performance

Reduces CPU temperatures by up to 6°C

CNC-machined anodized aluminum frame

Easy installation with included tools

Compatible with CPUs with IHS sanding up to 0.2mm

Note: Removing ILM may void motherboard warranty

Seller note

040371000000005

Fast delivery
2-5 Days
Online Support
Chat and Phone
order protection
secured information
promotion gift
special offers!
money back
return over 14 days

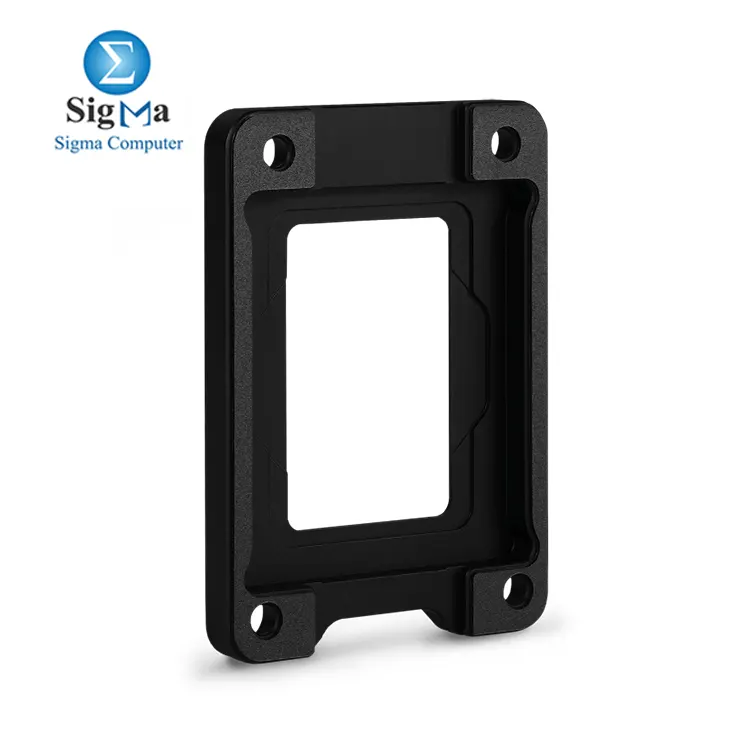

Thermal Grizzly Intel LGA1851 V1 CPU Contact Frame
Product number: S-TG-CF-i1851-V1
EAN: 4260711991103
MPN: TG-CF-i1851-V1

Product information "CPU Contact Frame - Intel 1851"
The Intel 1851 CPU Contact Frame V1 is the version of the well-known mounting aid tailored to Intel motherboards with the LGA1851 socket. By using the Intel 1851 CPU Contact Frame V1, the concave bending of the CPU’s Integrated Heat Spreader (IHS) caused by the standard Integrated Loading Mechanism (ILM) is avoided. This results in better contact between the CPU cooler and the IHS, improving cooling performance.

Reduction of CPU temperatures
Easy to install
Anodized aluminum

Installing the contact frame is very simple and requires only a few steps. First, the motherboard's Integrated Loading Mechanism (ILM) must be removed. Depending on the CPU cooler and the CPU used, processor temperatures can be noticeably reduced. When switching from the Reduced-Load ILM (RL-ILM) used on some LGA1851 motherboards, temperature reductions of up to 4°C can be expected, and up to 6°C when switching from the standard ILM.

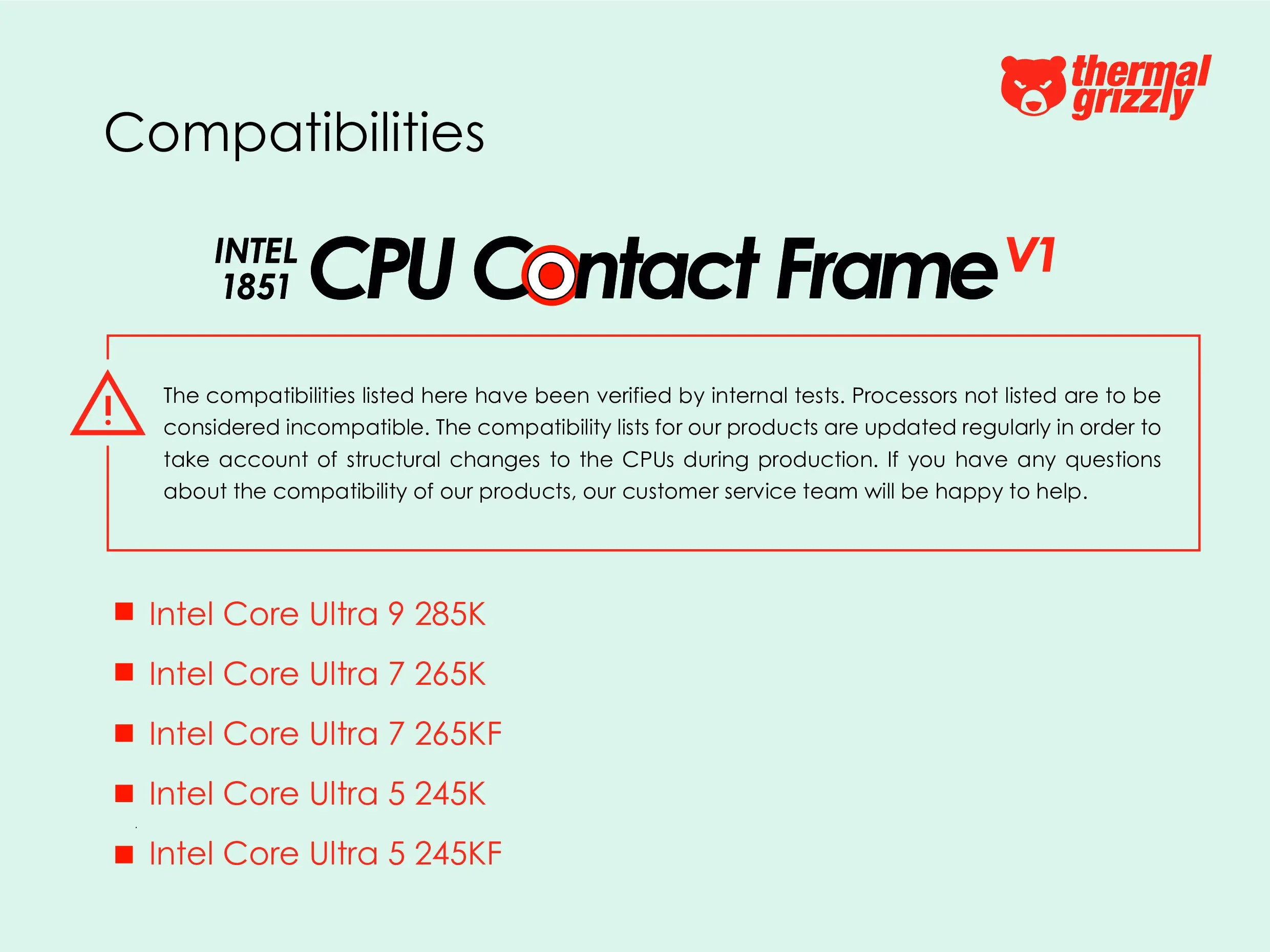

The Intel 1851 CPU Contact Frame V1 is compatible with Intel Core Ultra 200 Series processors for the LGA1851 socket. Additionally, the frame is compatible with CPUs whose Integrated Heat Spreader (IHS) has been sanded down by no more than 0.2 millimeters. Care must be taken during installation to ensure no electronic components are located under the frame, especially with Mini-ITX form factor motherboards.

Attention:
Removing the Integrated Loading Mechanism (ILM) of the mainboard may invalidate the manufacturer's warranty of the mainboard manufacturer.

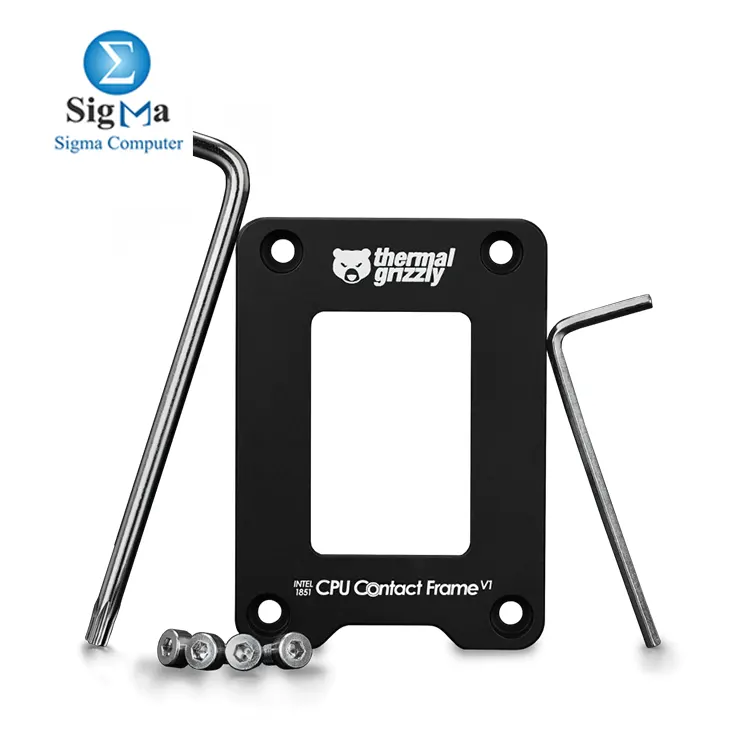

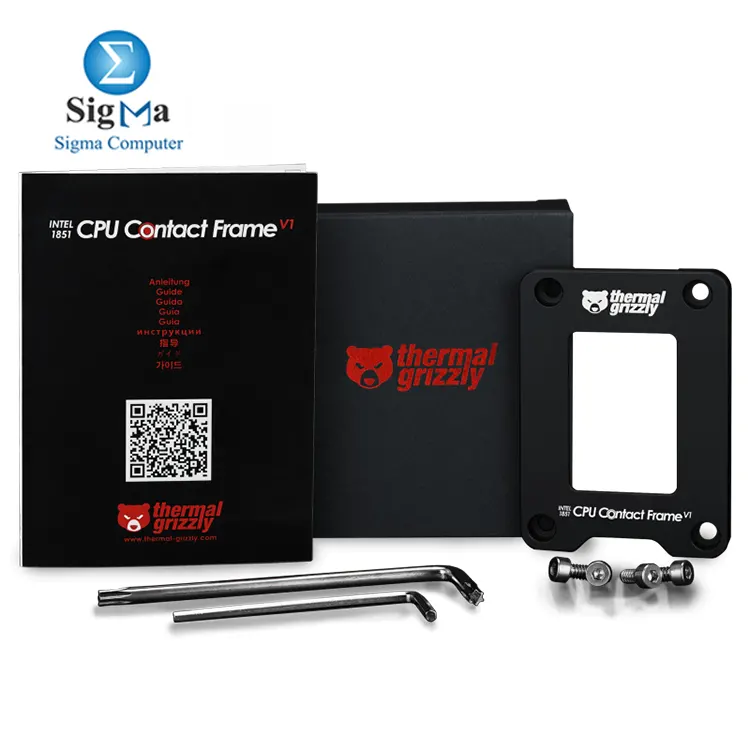

Included in the package:

1x Intel 1851 CPU Contact Frame V1
4x Cylinder head screws with 3/8" UNC threads
1x 5/64" hex key
1x Torx T20 key

Color: black
Material: Aluminum
Socket manufacturer: Intel
Socket type: LGA 1851

Category	Desktop
Subcategory	Processors
Brand	thermal grizzly
Model	TG-CF-i1851-V1
