Thermal Grizzly AMD AM5 Contact Sealing Frame - TG-CSF-AM5

reviews | Write a review

1100 LE

Availability: In Stock only 5 item left

shipped by (sigma)

Point: 10

Seller : sigma

Viewed : 35 items

Thermal Grizzly AM5 Contact Sealing Frame – Key Features

Designed for AMD Ryzen 7000/8000G/9000 Series (including X3D)

Combines CPU Contact Frame & Guard for optimal pressure and protection

Precision-Milled Inner Contour for even contact pressure distribution

Silicone Foam Inlay protects exposed CPU components

Prevents leakage of thermal paste or liquid metal

Replaces the original SAM on the motherboard

Made from anodized aluminum – durable and lightweight

Includes mounting tools and screws for easy installation

Compatible with Thermal Grizzly AM5 backplates

Seller note

040371000000004

Fast delivery
2-5 Days
Online Support
Chat and Phone
order protection
secured information
promotion gift
special offers!
money back
return over 14 days

Thermal Grizzly AMD AM5 Contact Sealing Frame
Product number: S-TG-CSF-AM5
EAN: 4260711990878
MPN: TG-CSF-AM5

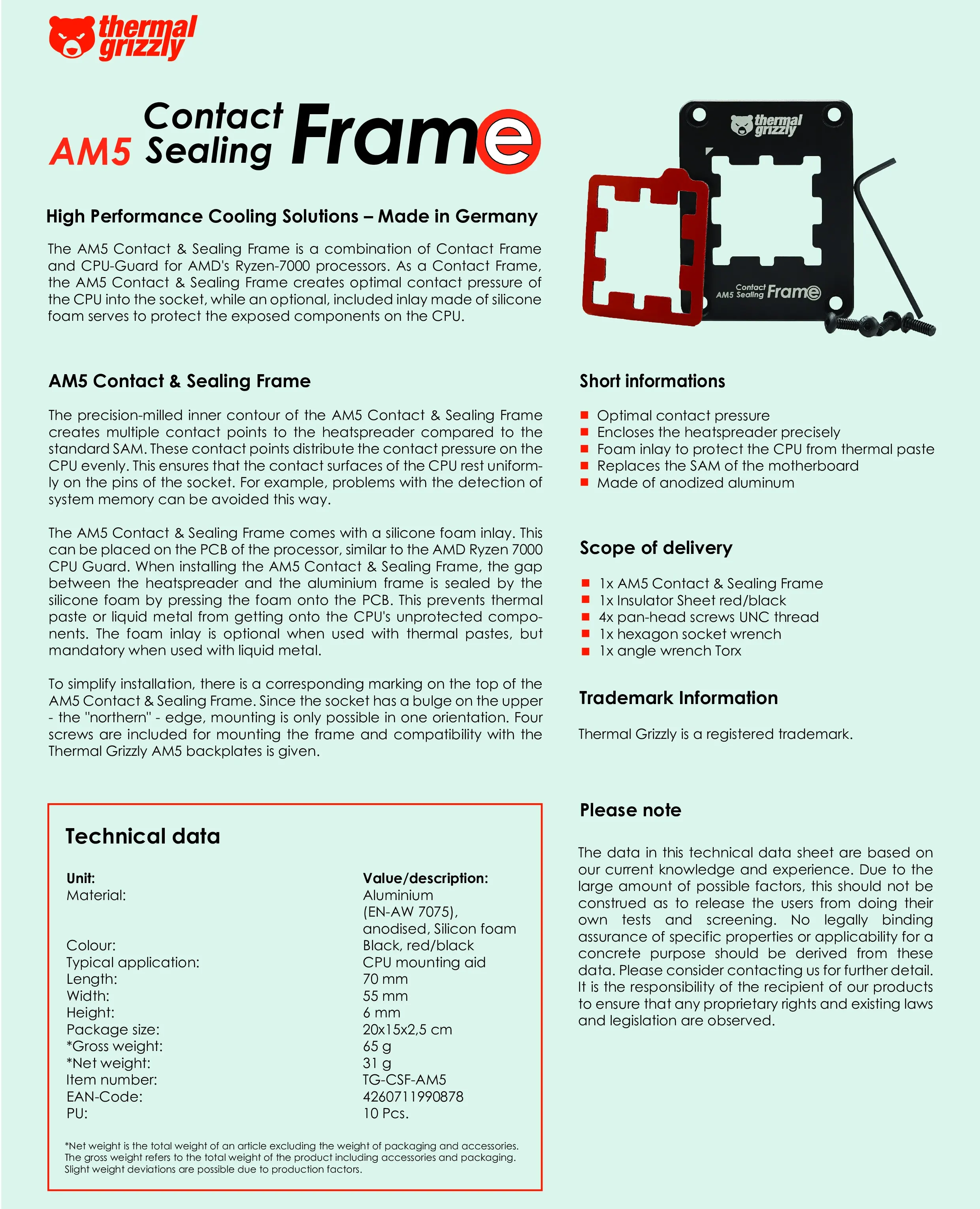

Product information "Contact Sealing Frame - AM5"
Combination of contact frame and CPU guard
The AM5 Contact & Sealing Frame is a combination of Contact Frame and CPU-Guard for AMD's Ryzen-7000 processors. As a Contact Frame, the AM5 Contact & Sealing Frame creates optimal contact pressure of the CPU into the socket, while an optional, included inlay made of silicone foam serves to protect the exposed components on the CPU.

Encloses the heatspreader
Replaces the SAM of the mainboard
Made of anodized aluminium

Optimized Inner Contour for Even Pressure Distribution
The precision-milled inner contour of the AM5 Contact & Sealing Frame creates multiple contact points to the heatspreader compared to the standard SAM. These contact points distribute the contact pressure on the CPU evenly. This ensures that the contact surfaces of the CPU rest uniformly on the pins of the socket. For example, problems with the detection of system memory can be avoided this way.

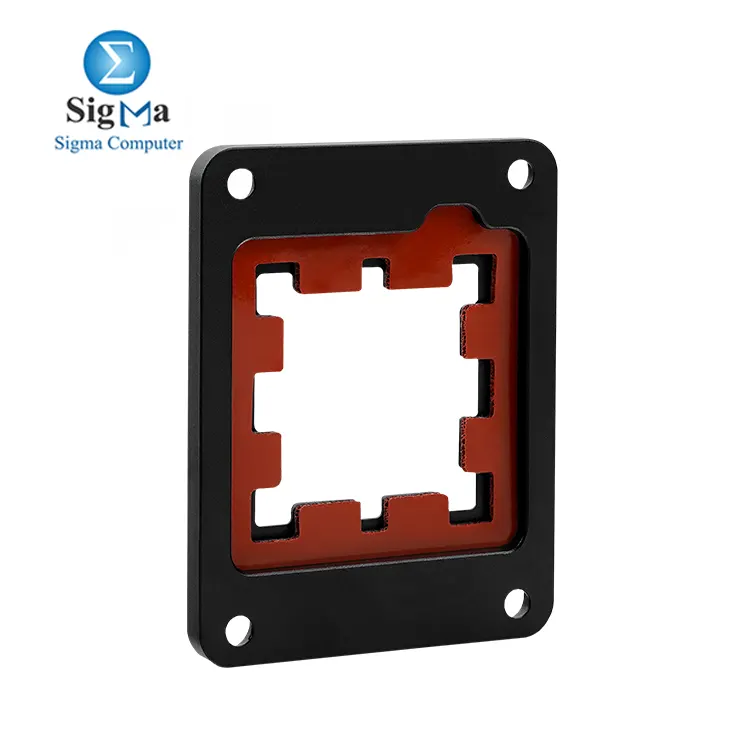

Innovative Silicone Foam Inlay for Protection and Sealing
The AM5 Contact & Sealing Frame comes with a silicone foam inlay. This can be placed on the PCB of the processor, similar to the AMD Ryzen 7000 CPU Guard. When installing the AM5 Contact & Sealing Frame, the gap between the heatspreader and the aluminium frame is sealed by the silicone foam by pressing the foam onto the PCB. This prevents thermal paste or liquid metal from getting onto the CPU's unprotected components. The foam inlay is optional when used with thermal pastes, but mandatory when used with liquid metal.

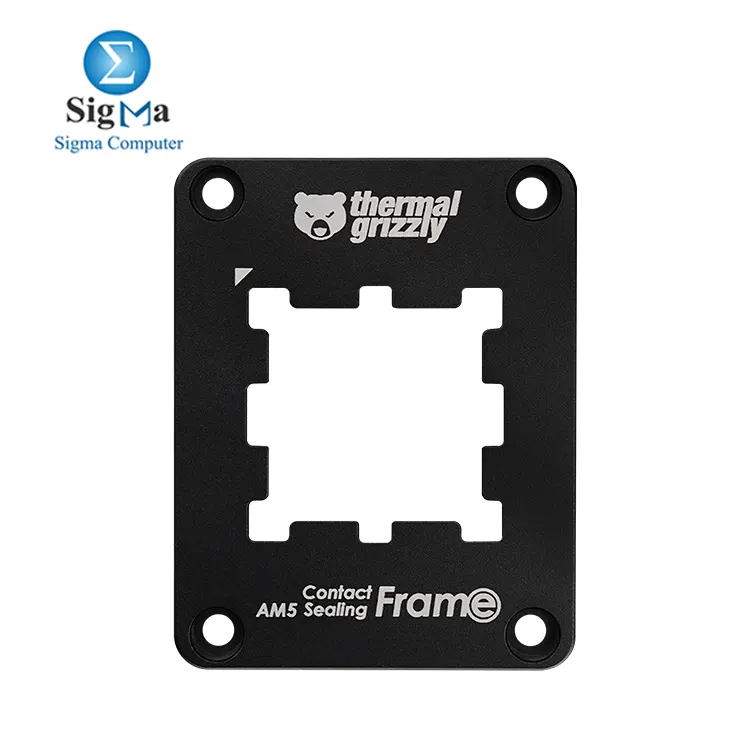

User-Friendly Assembly with Clear Marking and Compatibility
To simplify installation, there is a corresponding marking on the top of the AM5 Contact & Sealing Frame. Since the socket has a bulge on the upper - the "northern" - edge, mounting is only possible in one orientation. Four screws are included for mounting the frame and compatibility with the Thermal Grizzly AM5 backplates is given.

Compatibility Note:
The AM5 Contact & Sealing Frame is compatible with the APUs of the Ryzen 8000G series as well as the CPUs of the Ryzen 9000 series, including the X3D variants.
(as of March 2025)

Attention:
Removing the Socket Actuation Mechanism (SAM) of the mainboard may invalidate the manufacturer's warranty of the mainboard manufacturer!

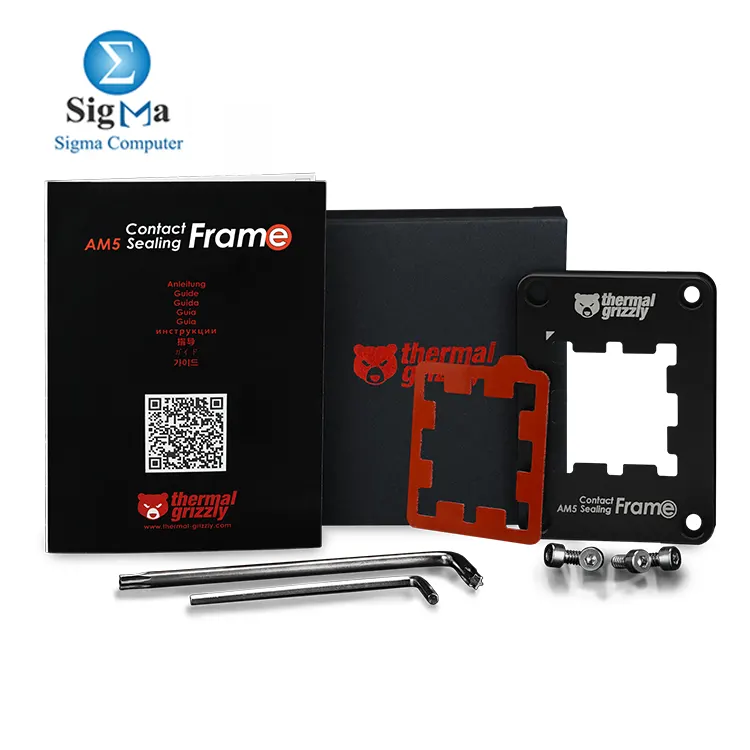

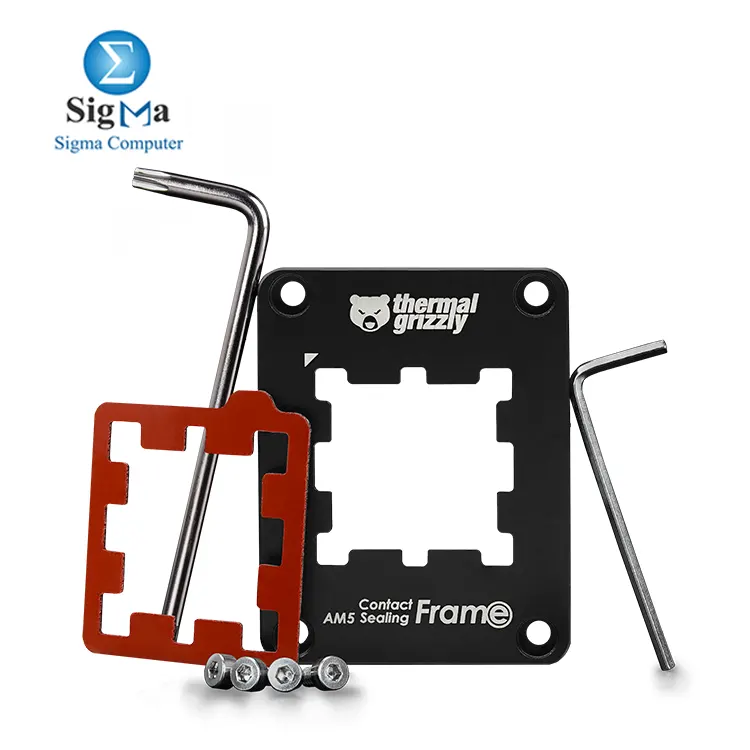

Scope of delivery

1x AM5 Contact & Sealing Frame
1x Insulator Sheet Red/Black
4x pan-head screws UNC thread 1/4"
1x hexagon socket wrench 5/64"
1x angle wrench Torx T20

Color: black
Material: Aluminum
Socket manufacturer: AMD
Socket type: AM5

Category	Desktop
Subcategory	Processors
Brand	ThermalTake
Model	TG-CSF-AM5
