Thermal Grizzly Minus Pad 8 120x20x3.0mm Thermal Pad - TG-MP8-120-20-30-1R | 725 EGP

Thermal Grizzly Minus Pad 8 120x20x3.0mm Thermal Pad - TG-MP8-120-20-30-1R

725 LE
Availability: In Stock only 5 item left
shipped by (sigma)
Point: 10

Seller : sigma

Viewed : 83 items

Key Specs – Thermal Grizzly Minus Pad 8 (120 x 20 x 3.0 mm):

  • High thermal conductivity

  • Size: 120 x 20 mm

  • Thickness: 3.0 mm

  • Electrically insulating (8KV/mm)

  • Operating temp: -100°C to +250°C

  • Hardness: Shore 00-60

  • Flammability rating: V-0

  • Material: Ceramic silicone with nano aluminum oxide

  • Color: Pink

  • RoHS compliant

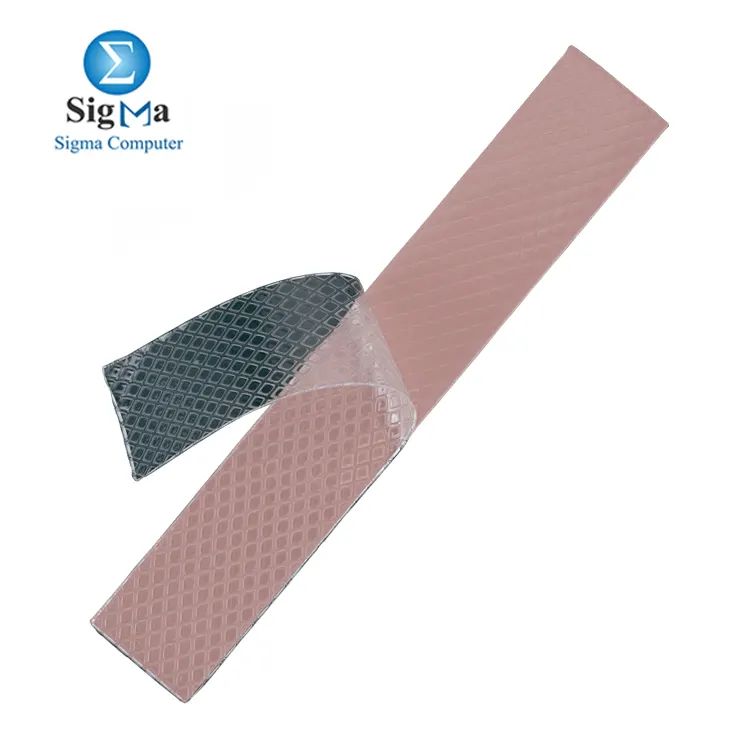

Thermal Grizzly Minus Pad 8 120x20x3.0mm Thermal Pad
Product number: S-TG-MP8-120-20-30-1R
EAN: 4260711990199
MPN: TG-MP8-120-20-30-1R

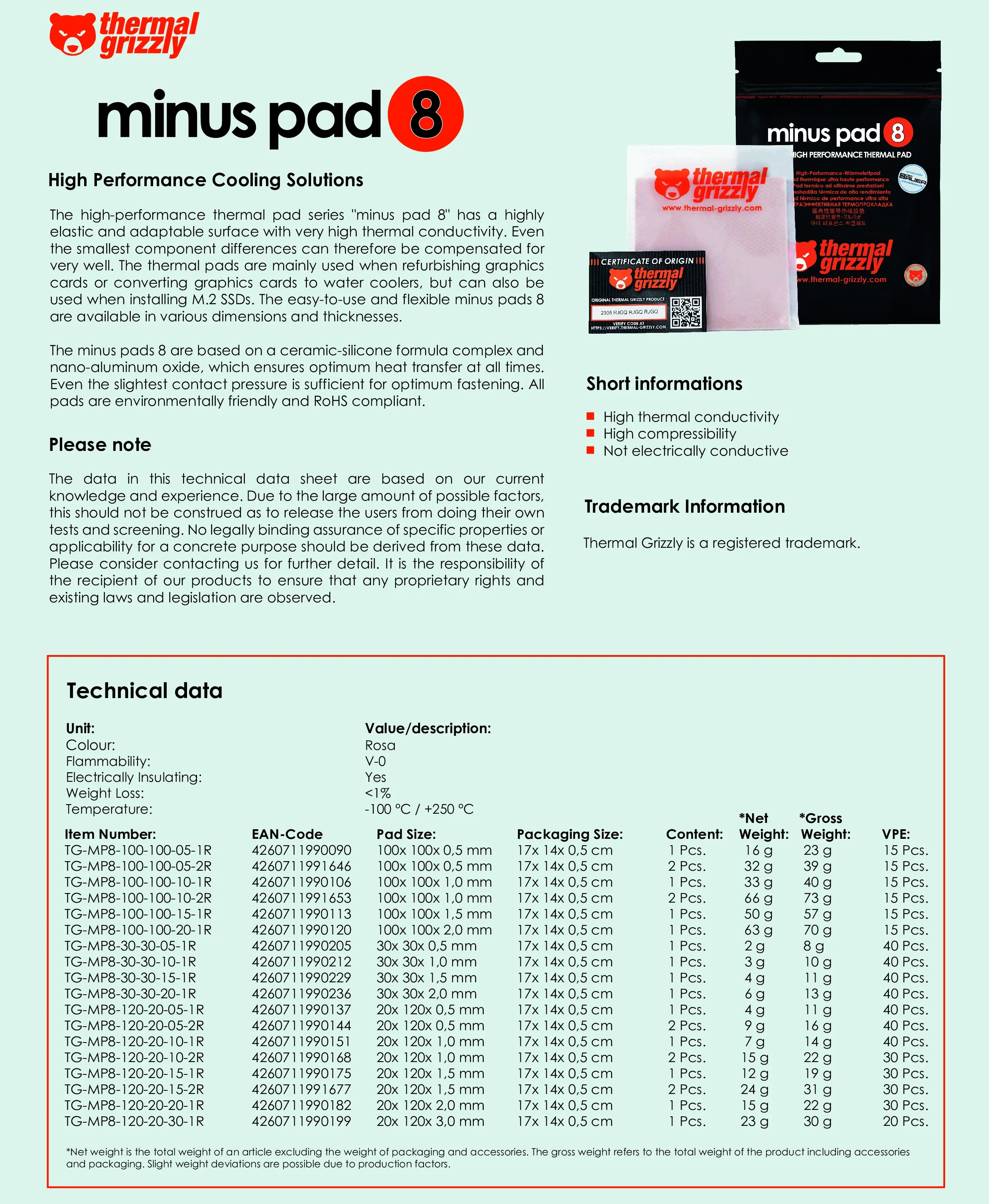

Product information:
The high-performance thermal pads of the Thermal Grizzly Minus Pad 8 series have a very elastic and adaptable surface with very high thermal conductivity. Even the smallest component differences can be compensated very well.

The easy-to-process and flexible Minus Pads are made from a ceramic silicon formula complex and nano aluminum oxide. This ensures constant and optimal heat transfer.

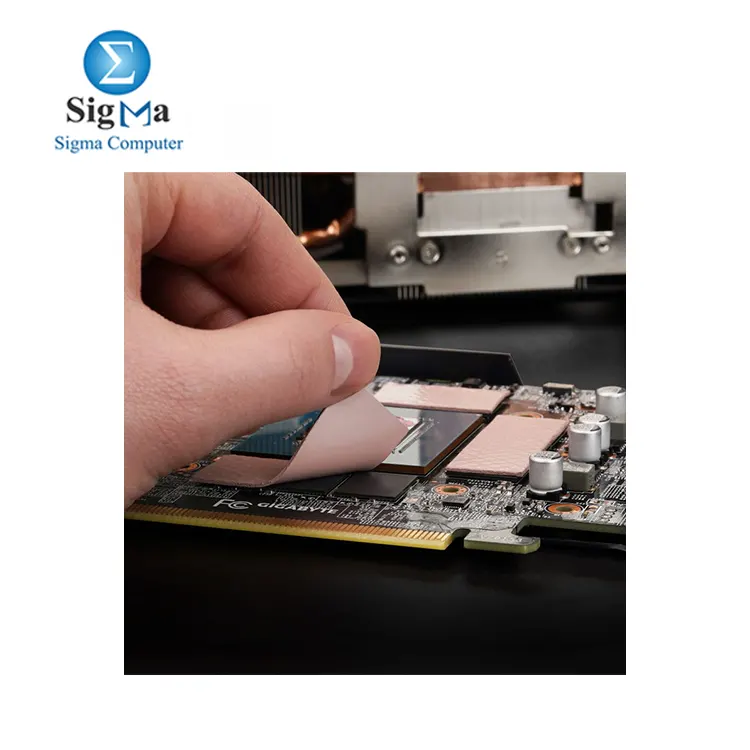

A light touch is enough to attach the pad properly. All pads are eco-friendly and RoHS-compliant.

Key features:

  • High thermal conductivity

  • High compressibility

  • Electrical insulation

  • Easy application

  • RoHS compliant

  • Available in multiple sizes and thicknesses

Specifications:

  • Color: Pink

  • Size: 120 x 20 mm

  • Thickness: 3 mm

  • Hardness: Shore 00-60

  • Electrically insulating: Yes (8KV/mm ASTM D149)

  • Flammability: V-0

  • Operating temperature: -100°C to +250°C

CategoryAccessories
SubcategoryThermal Pads
Brandthermal grizzly
ModelTG-MP8-120-20-30-1R
