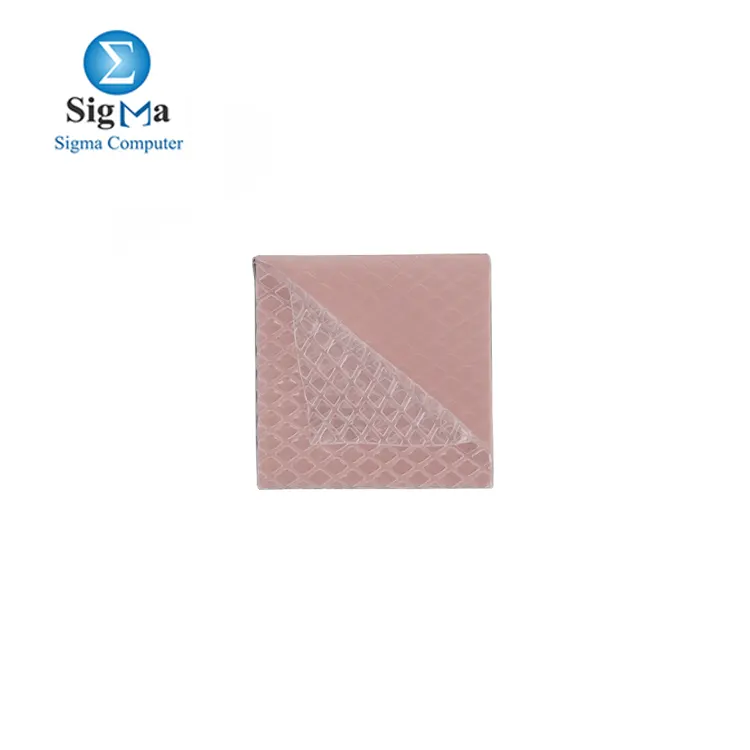

Thermal Grizzly Minus Pad 8 30x30x1.0mm Thermal Pad - TG-MP8-30-30-10-1R | 325 EGP

Thermal Grizzly Minus Pad 8 30x30x1.0mm Thermal Pad - TG-MP8-30-30-10-1R

325 LE
Availability: In Stock only 5 item left
shipped by (sigma)
Point: 10

Seller : sigma

Viewed : 22 items

Thermal Grizzly Minus Pad 8:

  • High thermal conductivity

  • Flexible and compressible

  • Electrical insulation (8KV/mm)

  • Operating temperature: -100°C to +250°C

  • Flammability rating: V-0

  • Color: Pink

  • Hardness: Shore 00-60

  • Size: 30 x 30 mm

  • Thickness: 1 mm

Let me know if you need anything else


Product Name: Minus Pad 8
Product Number: S-TG-MP8-30-30-10-1R
EAN: 4260711990212
MPN: TG-MP8-30-30-10-1R

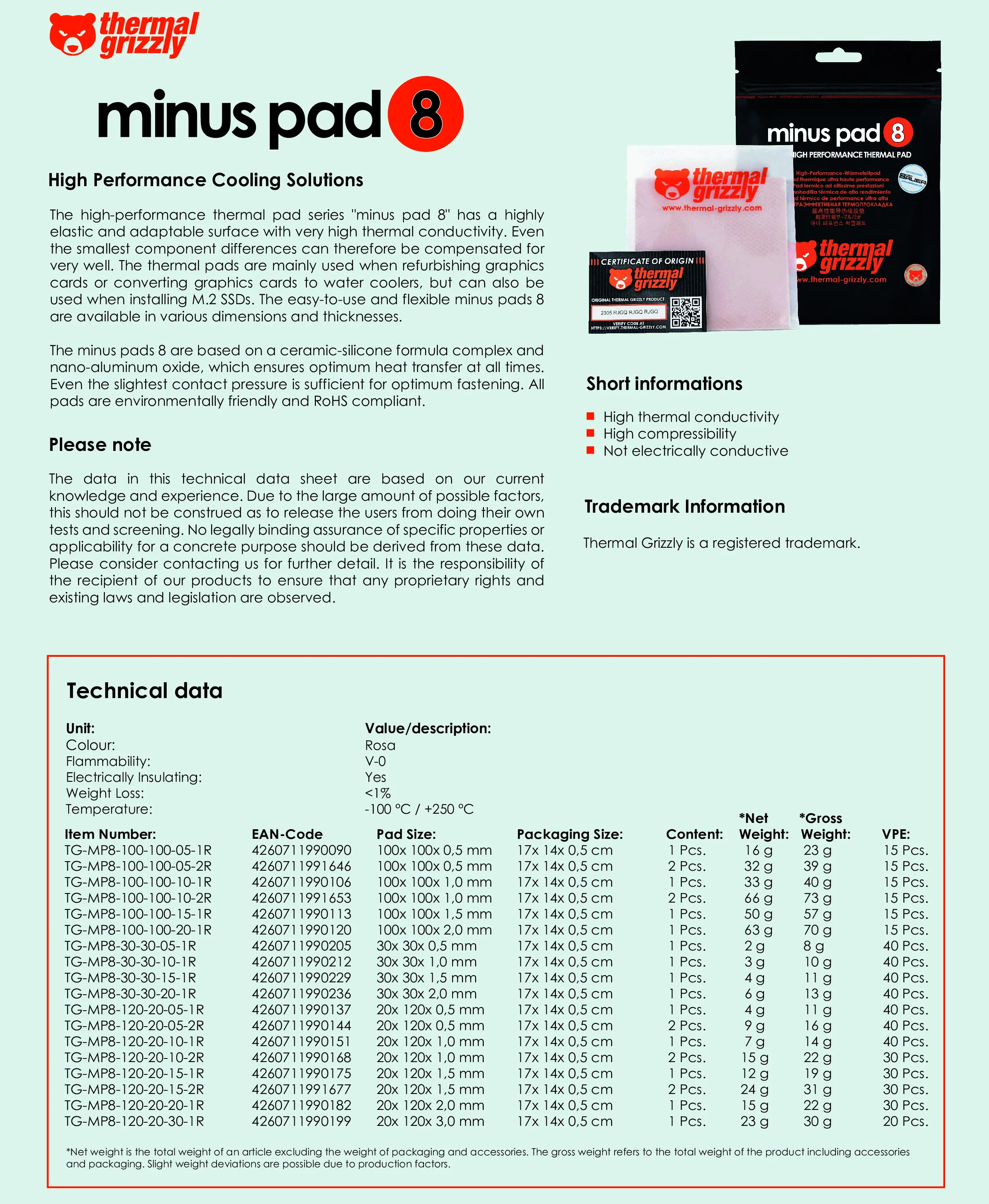

Product Information:
The high-performance thermal pads of the Thermal Grizzly Minus Pad 8 series have a very elastic and adaptable surface with very high thermal conductivity. Even the smallest component differences can be compensated very well. Available in a variety of different sizes and thicknesses.

The easy-to-process and flexible minus pads are made up of different constituents, based on a ceramic silicon formula complex and nano aluminum oxide. Thus, the pads ensure a constant, optimal heat transfer.

The lightest of touches is enough to attach them optimally. All pads are eco-friendly and RoHS-compliant.

Specifications:

  • High thermal conductivity

  • High compressibility

  • Electrical insulation

  • Electrically insulating: Yes (8KV/mm ASTM D149)

  • Flammability: V-0

  • Operating temperature: -100°C to +250°C

  • Color: Pink

  • Degree of hardness: Shore 00-60

  • Size: 30 x 30 mm

  • Thickness: 1 mm

Available Sizes: 30x30mm, 120x20mm, 100x100mm
Available Thicknesses: 0.5mm, 1mm, 1.5mm, 2mm, 3mm

CategoryAccessories
SubcategoryThermal Pads
Brandthermal grizzly
ModelTG-MP8-30-30-10-1R
