ASUS TUF GAMING B650M-E WIFI | 10000 EGP

ASUS TUF GAMING B650M-E WIFI

10000 LE
shipped by (sigma)
Point: 20

Brand : ASUS brand

Model : B650M-E WIFI

Seller : sigma

Viewed : 1984 items

The ASUS TUF GAMING B650M-E WIFI is a micro-ATX motherboard designed for gamers who want a robust platform for their AMD Ryzen™ processors. Here are some key features and highlights:

Key Features:

  • Chipset: AMD B650 chipset, compatible with the latest AMD Ryzen™ Desktop Processors.
  • Form Factor: Micro-ATX, which makes it suitable for compact builds without compromising on essential features.
  • Power Solution: Upgraded power delivery system designed to handle the high power demands of gaming and other intensive tasks.
  • Cooling System: Comprehensive cooling solution with multiple fan headers and support for AIO water cooling setups.
  • Military-Grade Components: High-quality, durable components that are built to withstand long hours of gaming and heavy usage.
  • Wi-Fi: Integrated Wi-Fi for seamless and stable wireless connectivity.
  • Design: Rugged off-black and geometric design elements, characteristic of the TUF GAMING series, reflecting durability and reliability.

Performance:

  • Durability: Engineered to endure, with extensive testing to ensure the motherboard can operate under extreme conditions.
  • Gaming Ready: Optimized for gaming with features like enhanced audio, fast connectivity, and stable power delivery to ensure smooth performance.

This motherboard is a solid choice for gamers looking to build a reliable and durable gaming rig, particularly if they prefer the AMD Ryzen platform. The combination of sturdy design, advanced features, and the TUF GAMING series' reputation for reliability makes it an excellent option for those who want to game without worry.





CPU Support:

  • Socket: AMD Socket AM5
  • Supported Processors: AMD Ryzen™ 9000, 8000, and 7000 Series Desktop Processors

Chipset:

  • Chipset: AMD B650

Memory:

  • Memory Slots: 4 x DIMM slots
  • Max Capacity: Up to 192GB DDR5
  • Supported Memory Speeds (OC): DDR5 7600+(OC) down to 4800, with support for both ECC and Non-ECC, Un-buffered memory
  • Features: Dual Channel Memory Architecture, AMD Extended Profiles for Overclocking (EXPO™), OptiMem II technology

Graphics:

  • Outputs:
    • 2 x DisplayPort (up to 8K@60Hz, DP 1.4)
    • 1 x HDMI port (up to 4K@60Hz, HDMI 2.1)
  • Note: Graphics output depends on the CPU used.

Expansion Slots:

  • PCIe Slots:
    • 1 x PCIe 4.0 x16 slot (varies by CPU series)
    • 2 x PCIe 4.0 x1 slots

Storage:

  • M.2 Slots:
    • 2 x M.2 slots supporting PCIe 5.0/4.0 depending on the processor
  • SATA Ports:
    • 4 x SATA 6Gb/s ports
  • RAID Support: AMD RAIDXpert2 Technology supports both PCIe and SATA RAID 0/1/10

Networking:

  • Ethernet: 1 x Realtek 2.5Gb Ethernet with TUF LANGuard
  • Wireless & Bluetooth: Wi-Fi 6 (802.11 a/b/g/n/ac/ax), Bluetooth® v5.2

USB Connectivity:

  • Rear I/O Ports (Total 8):
    • 2 x USB 3.2 Gen 2 (10G) ports (1 x Type-A, 1 x Type-C®)
    • 2 x USB 3.2 Gen 1 (5G) Type-A ports
    • 4 x USB 2.0 Type-A ports
  • Front I/O Ports (Total 7):
    • 1 x USB 3.2 Gen 1 (5G) Type-C® connector
    • 1 x USB 3.2 Gen 1 (5G) header for 2 additional ports
    • 2 x USB 2.0 headers for 4 additional ports

Audio:

  • Codec: Realtek 7.1 Surround Sound High Definition Audio CODEC
  • Features: Jack-detection, Multi-streaming, Front Panel Jack-retasking, Audio Shielding, Premium audio capacitors, Dedicated audio PCB layers

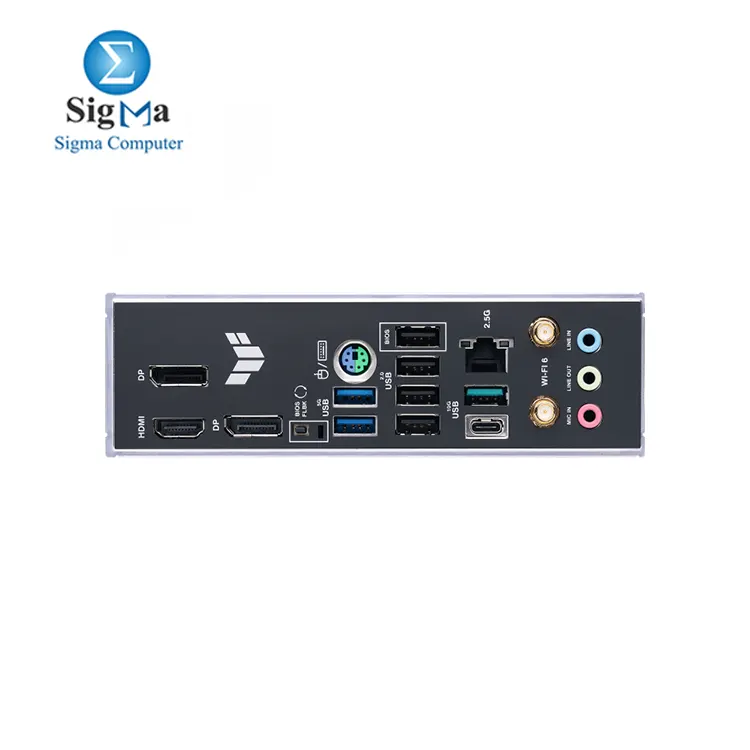

Back Panel I/O Ports:

  • USB:
    • 2 x USB 3.2 Gen 2 (10G) ports (Type-A + Type-C®)
    • 2 x USB 3.2 Gen 1 (5G) ports (Type-A)
    • 4 x USB 2.0 ports (Type-A)
  • Display Outputs:
    • 2 x DisplayPort
    • 1 x HDMI™ port
  • Other:
    • 1 x Wi-Fi Module
    • 1 x Realtek 2.5Gb Ethernet port
    • 3 x Audio jacks
    • 1 x BIOS FlashBack™ button
    • 1 x PS/2 Keyboard/Mouse combo port

Internal I/O Connectors:

  • Fan & Cooling:
    • 1 x 4-pin CPU Fan header
    • 1 x 4-pin CPU OPT Fan header
    • 1 x 4-pin AIO Pump header
    • 2 x 4-pin Chassis Fan headers
  • Power Connectors:
    • 1 x 24-pin Main Power connector
    • 1 x 8-pin +12V Power connector
    • 1 x 4-pin +12V Power connector
  • Storage Connectors:
    • 2 x M.2 slots
    • 4 x SATA 6Gb/s ports
  • USB Connectors:
    • 1 x USB 3.2 Gen 1 (5G) Type-C® connector
    • 1 x USB 3.2 Gen 1 (5G) header for 2 ports
    • 2 x USB 2.0 headers for 4 ports
  • Miscellaneous Connectors:
    • 3 x Addressable Gen 2 headers
    • 1 x Aura RGB header
    • 1 x Clear CMOS header
    • 1 x COM Port header
    • 1 x Front Panel Audio header (AAFP)
    • 1 x 20-3 pin System Panel header with Chassis intrude function

Special Features:

  • ASUS TUF PROTECTION: Includes DIGI+ VRM, ESD Guards, TUF LANGuard, Overvoltage Protection, SafeSlot Core+, Stainless-Steel Back I/O
  • ASUS Q-Design: M.2 Q-Latch, Q-DIMM, Q-LED, Q-Slot
  • ASUS Thermal Solution: M.2 heatsink, VRM heatsink design
  • ASUS EZ DIY: BIOS FlashBack™ button, Pre-mounted I/O shield, SafeDIMM
  • Aura Sync: Aura RGB header, Addressable Gen 2 headers

Software Features:

  • ASUS Exclusive Software: Armoury Crate, Aura Creator, Aura Sync, Fan Xpert 2+, AI Suite 3, TUF GAMING CPU-Z, DTS Audio Processing, MyASUS, Norton 360 for Gamers (60 Days Free Trial), WinRAR
  • BIOS Features: ASUS CrashFree BIOS 3, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode

Form Factor:

  • Size: micro-ATX (9.6 inch x 9.6 inch / 24.4 cm x 24.4 cm)



CategoryDesktop
SubcategoryMotherboard
BrandASUS
ModelB650M-E WIFI
