Aerocool B509A Flow LUX 650W Bronze Mid Tower case with mesh front tempered glass supports ATX boards 340mm GPUs includes 650W 80 Bronze PSU with 88 efficiency flat cables and full protections

reviews | Write a review

3649 LE

Availability: In Stock

shipped by (sigma)

Point: 20

Aerocool B509A Flow Black + LUX 650W 80+ Bronze Combo

Case Specifications – Aerocool B509A Flow (Black)

Case Type: Mid Tower
Motherboard Support: ATX / Micro-ATX / Mini-ITX
Dimensions: 206.5 x 450.5 x 400.55mm (W x H x D)
Material: SPCC Steel Body (0.5mm), ABS Front Panel, Tempered Glass Side Panel
Color: Black
Drive Bays: 2 x 3.5” (1 shared with 2.5”), 5 x 2.5” (1 shared with 3.5”)
Expansion Slots: 7
GPU Clearance: Up to 340mm
CPU Cooler Clearance: Up to 158mm

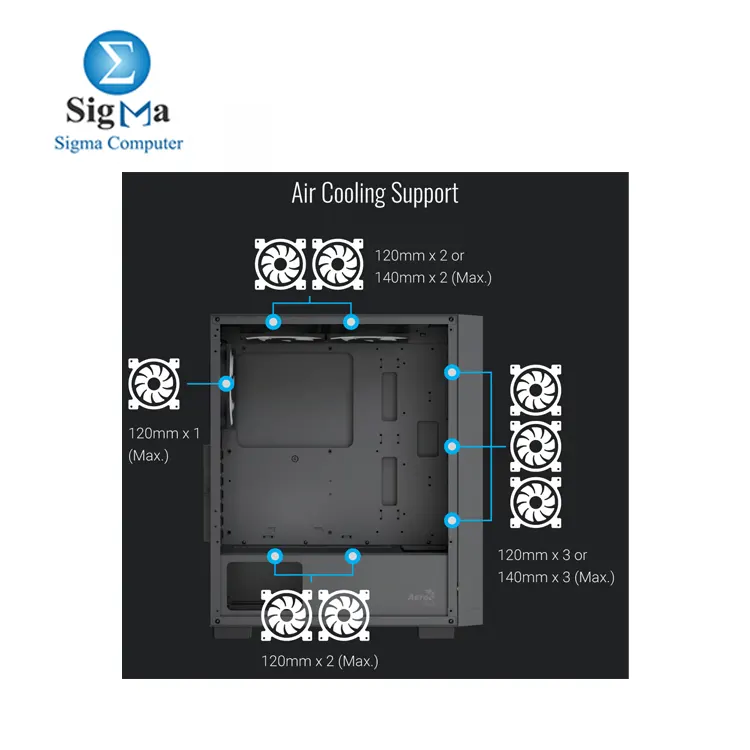

Cooling Support:
- Front: 3 x 120mm or 3 x 140mm
- Top: 2 x 120mm or 2 x 140mm
- PSU Shroud: 2 x 120mm
- Rear: 1 x 120mm

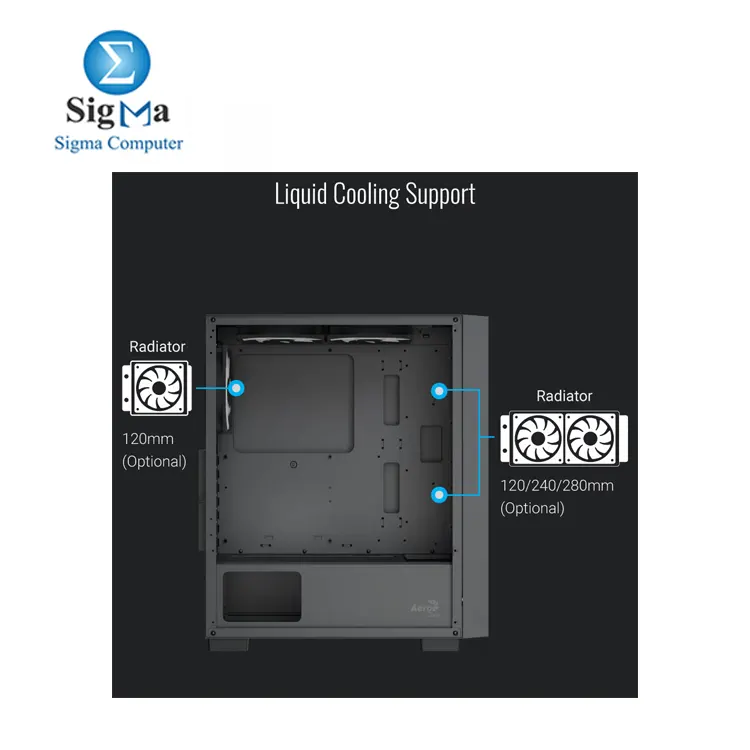

Liquid Cooling Support:
- Front: 120 / 240 / 280 / 360mm radiator
- Rear: 120mm radiator
Front Panel I/O: 1 x USB 3.0, 2 x USB 2.0, HD Audio & Mic
Cable Management Clearance: 21mm
PSU Support: ATX PSU up to 185mm (optional)
Additional Features: Full mesh front panel, top & bottom dust filters (magnetic top), clean cable routing

Power Supply Specifications – Aerocool LUX 650W 80+ Bronze

Model: LUX 650W
Certification: 80Plus 230V EU Bronze, up to 88%+ efficiency
AC Input: 200-240VAC, 5A, 50-60Hz
DC Output:
- +3.3V: 20A
- +5V: 20A
- +12V: 50A
- -12V: 0.3A
- +5VSB: 2.5A
- Max Combined Power: 650W
Cooling: Silent 12cm black fan with thermal speed control
Features:
- Active PFC > 0.9
- Electrical protections: OPP, OVP, UVP, SCP
- 30% increased ventilation area for enhanced airflow
- Flat black cables for easy cable management
- Compatible with Intel form factors up to ATX12V Ver. 2.4
