AeroCool B508A Flow Mid Tower Case supports ATX/m-ATX/Mini-ITX, 340mm GPU, 5 fans, tempered glass panel; paired with AeroCool LUX 550W 80Plus Bronze PSU with flat cables and silent 120mm fan. | 2999 EGP

AeroCool B508A Flow Mid Tower Case supports ATX m-ATX Mini-ITX 340mm GPU 5 fans tempered glass panel paired with AeroCool LUX 550W 80Plus Bronze PSU with flat cables and silent 120mm fan.

2999 LE
Availability: In Stock
shipped by (sigma)
Point: 10

Brand : AeroCool brand

Model : B508A

Seller : sigma

Viewed : 306 items

AeroCool B508A Flow Case (Mid Tower)

  • Motherboard Support: ATX / m-ATX / Mini-ITX

  • GPU Clearance: Up to 340mm

  • CPU Cooler Clearance: Up to 158mm

  • Cooling Support: Up to 5 fans (140mm max), Front/Top/Rear

  • Drive Bays: 2x 3.5", 5x 2.5"

  • I/O Ports: 1x USB 3.0, 2x USB 2.0, HD Audio & Mic

  • Extra Features: Tempered glass side panel, dust filters, cable management (21mm)


AeroCool LUX 550W PSU

  • Certification: 80Plus 230V EU Bronze

  • Efficiency: Up to 88%

  • Cooling: Silent 120mm fan

  • Protection: OPP / OVP / UVP / SCP

  • Design: Flat black cables, increased ventilation

  • Compatibility: Intel up to ATX12V v2.4

  • Total Power: 550W

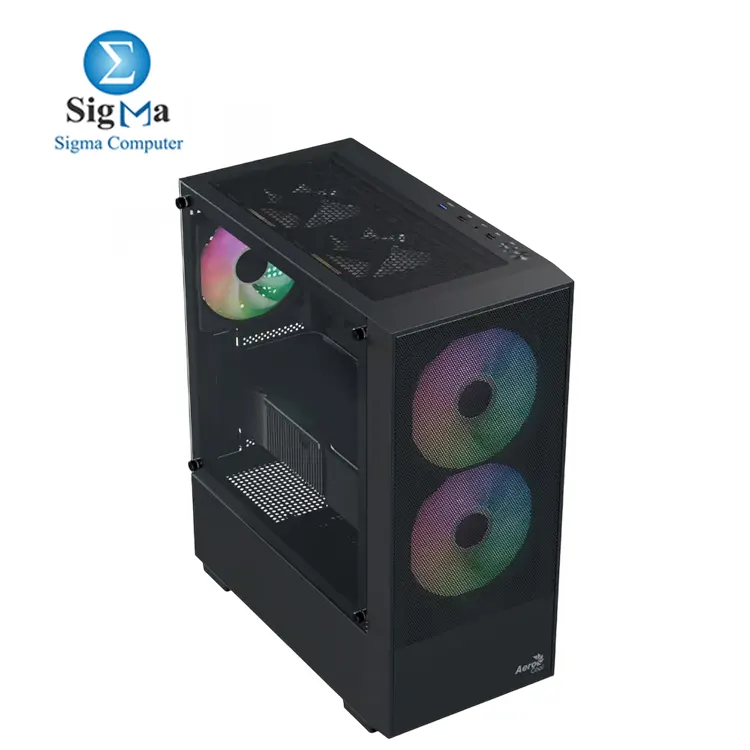

Case Specifications – AeroCool B508A Flow (Model: B508A Flow-G-BK-v1)

  • Case Type: Mid Tower

  • Color: Black, White

  • Body Material: SPCC

  • Front Panel Material: ABS, SPCC

  • Steel Thickness: 0.5mm

  • Motherboard Support: ATX / Micro-ATX / Mini-ITX

  • Internal Dimensions: 200 x 440 x 350 mm (W x H x D)

  • Overall Dimensions: 206.5 x 450.5 x 400.55 mm (W x H x D)

  • Drive Bays:

    • 3.5”: 2 Max (1x 3.5” + 1x 3.5”/2.5”)

    • 2.5”: 5 Max (4x 2.5” + 1x 2.5”/3.5”)

  • Expansion Slots: 7

  • GPU Clearance: Up to 340mm

  • CPU Cooler Clearance: Up to 158mm

  • Air Cooling Support:

    • Front: 2x 120mm or 2x 140mm

    • Top: 2x 120mm or 2x 140mm

    • Rear: 1x 120mm

  • Liquid Cooling Support:

    • Front: 120mm / 240mm / 280mm Radiator (Optional)

    • Rear: 120mm Radiator (Optional)

  • I/O Ports:

    • 1x USB 3.0

    • 2x USB 2.0

    • HD Audio & Mic

  • Cable Management Depth: 21mm

  • PSU Support: ATX PSU up to 185mm (Optional)

  • Additional Features:

    • Tempered glass side panel

    • Magnetic top and bottom dust filters

    • Stylish front panel with air ventilation


Power Supply Specifications – AeroCool LUX 550W

  • Certification: 80Plus 230V EU Bronze (Up to 88%+ efficiency)

  • Power Factor Correction: Active PFC (PF > 0.9)

  • Protection: OPP / OVP / UVP / SCP

  • Cooling: Silent 120mm fan with thermal speed control

  • Ventilation: 30% increased ventilation for better airflow

  • Cabling: Soft black flat cables for easier management

  • Intel Form Factor Support: Up to ATX12V v2.4

Electrical Specifications:

  • AC Input: 200–240VAC, 4A, 50–60Hz

  • DC Output:

    • +3.3V: 20A

    • +5V: 20A

    • +12V: 42A

    • -12V: 0.3A

    • +5VSB: 2.5A

  • Max Combined Power:

    • +3.3V & +5V: 100W

    • +12V: 504W

    • -12V: 3.6W

    • +5VSB: 12.5W

    • Total Power: 550W

  • EAN Code: 4718009156234

CategoryDesktop
SubcategoryComputer Case
BrandAeroCool
ModelB508A
